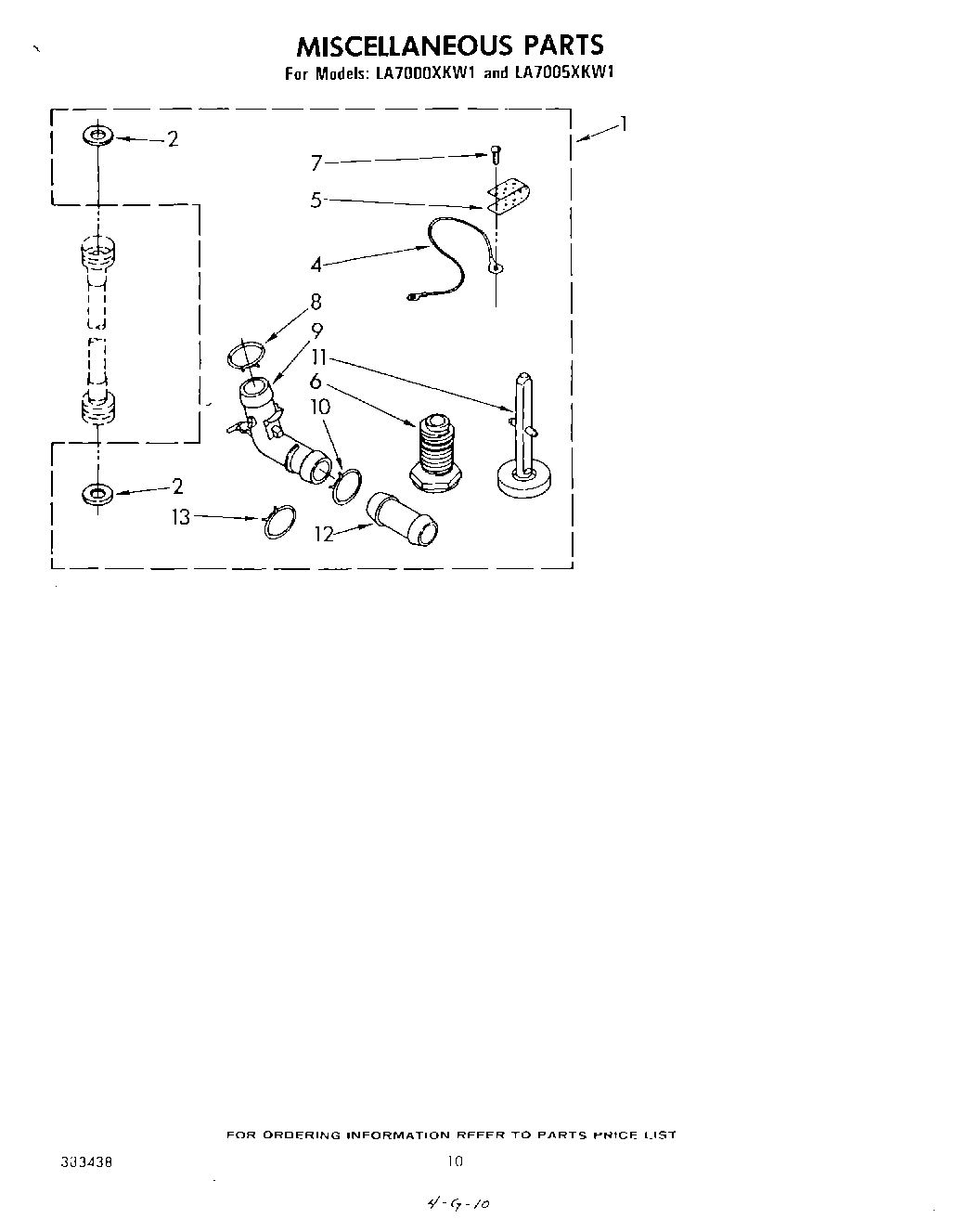

LA7000XKW1 09 – MISCELLANEOUS , LITERATURE AND OPTIONAL

LA7000XKW1 09 – MISCELLANEOUS , LITERATURE AND OPTIONAL

Written by

in

LA7000XKW1 09 – MISCELLANEOUS , LITERATURE AND OPTIONAL

Products

PositionProduct
1Miscellaneous Parts Bag
1Miscellaneous Parts Bag (Suds)
2WP16123 Whirlpool Washer
4WPL 364089
5Strap, Ground
6WP367594 Whirlpool Leveling Feet
7Screw, Ground (10-24 x 1)
8WP356138 Whirlpool Hose Clamp
9Connector, Hose
10WP285655 Whirlpool Hose Clamp
11WP358594 Whirlpool Leveling Feet
12WP16272 Whirlpool Hose Coupling
13Guide, Laundry
13Sheet, Installation Instructions
13Instructions, Operating
13Label, Energy Guide (Suds)
13Label, Energy Guide (Non Suds)
13WPL 799351
13Paint, Spray 13 Oz. (Avocado)
13350938 Whirlpool Spray Gun
13350956 Whirlpool Spray Assembly
1372017 Whirlpool Appliance Touch-Up Paint White
13WP72107 Whirlpool Touchup
13Leveler (Thinner)
1372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
13Golden Harvest
13350930 Whirlpool White Spray Paint
1372109 Whirlpool Dacor Avocado Touch-Up Paint
13List, Repair Parts
