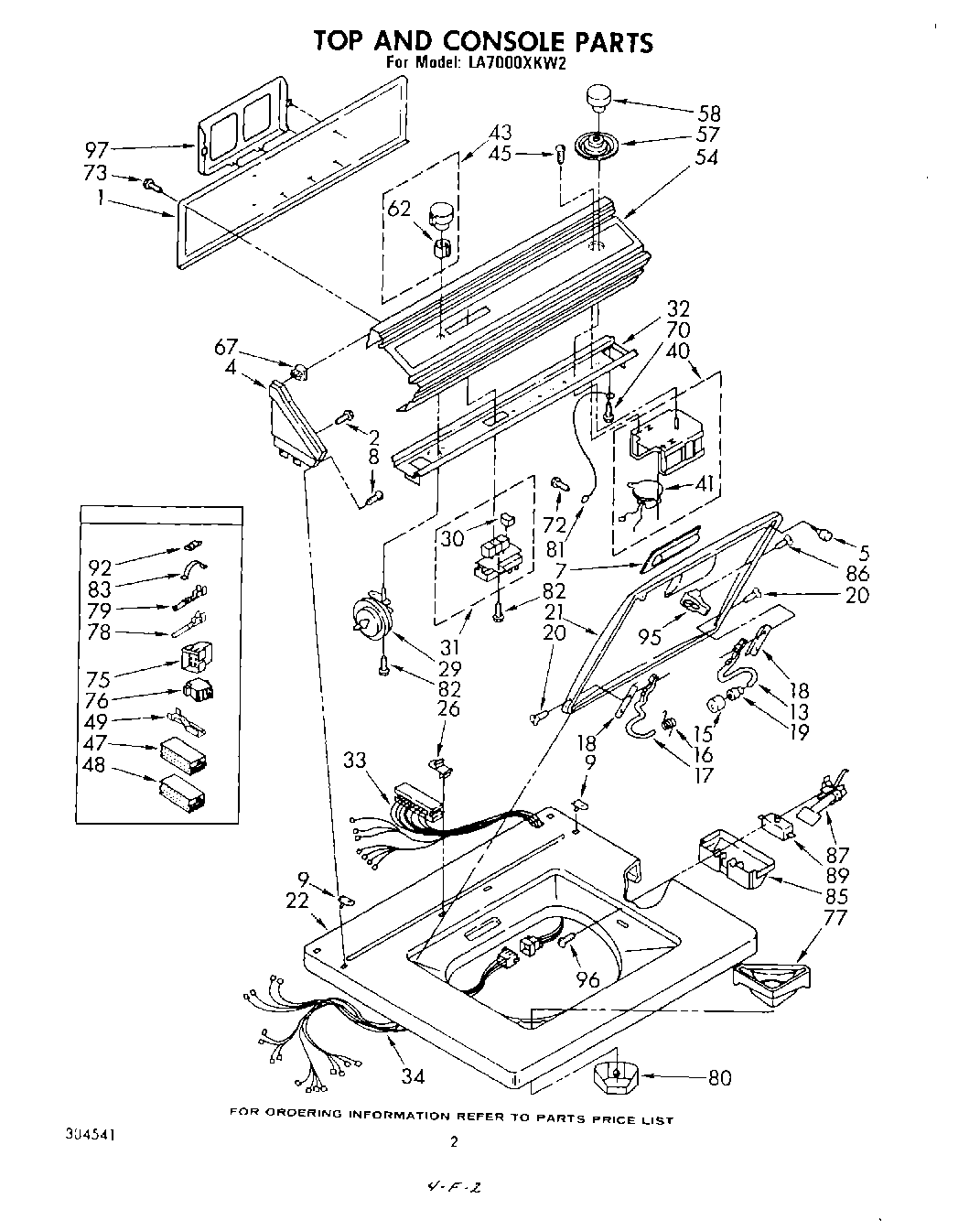

LA7000XKW2 02 – TOP AND CONSOLE

LA7000XKW2 02 – TOP AND CONSOLE

Written by

in

LA7000XKW2 02 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear Console
2	WPL 355326
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (New Avocado)
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (White)
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (Golden Harvest)
7	Handle, Lid (New Avocado)
7	Handle, Lid (White)
7	Handle, Lid (Almond)
8	Screw, 8-18 x 1 (2)
9	Nut, Push-In (2)
13	WP91770 Whirlpool Hinge
15	Bumper, Lid Hinge
16	Spring, Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (Almond)
21	Lid (Golden Harvest)
21	Lid (New Avocado)
21	Lid (White)
22	Top (New Avocado)
22	Top (White)
22	Top (Almond)
22	Top (Golden Harvest)
26	Stop, Push-In Top
29	Switch, Water Level
30	WPL 301008
31	Switch, Water Temperature
32	Bracket, Control
33	WPL 359325
34	Harness, Cabinet
40	Timer Assembly 60 Hz. (C.C.A.)
41	Use W/C.C.A. Timer
43	WPL 690301
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
48	Timer, Block Disconnect (White)
49	Terminal, Female
54	WPL 382417
57	Dial, Timer
58	Knob, Timer
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
70	WP3351614 Whirlpool Screw
72	SCREW
73	W11693756 Whirlpool Screw Assembly
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
77	WPL 352821
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
80	WPL 352827
81	3184020 Whirlpool Oven Wire
82	WP90767 Whirlpool Screw
83	8528351 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
87	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
92	WP90016 Whirlpool Clip
95	Strike, Lid Switch
96	Screw & Washer, Lid Switch (2)
97	Rack, Literature
