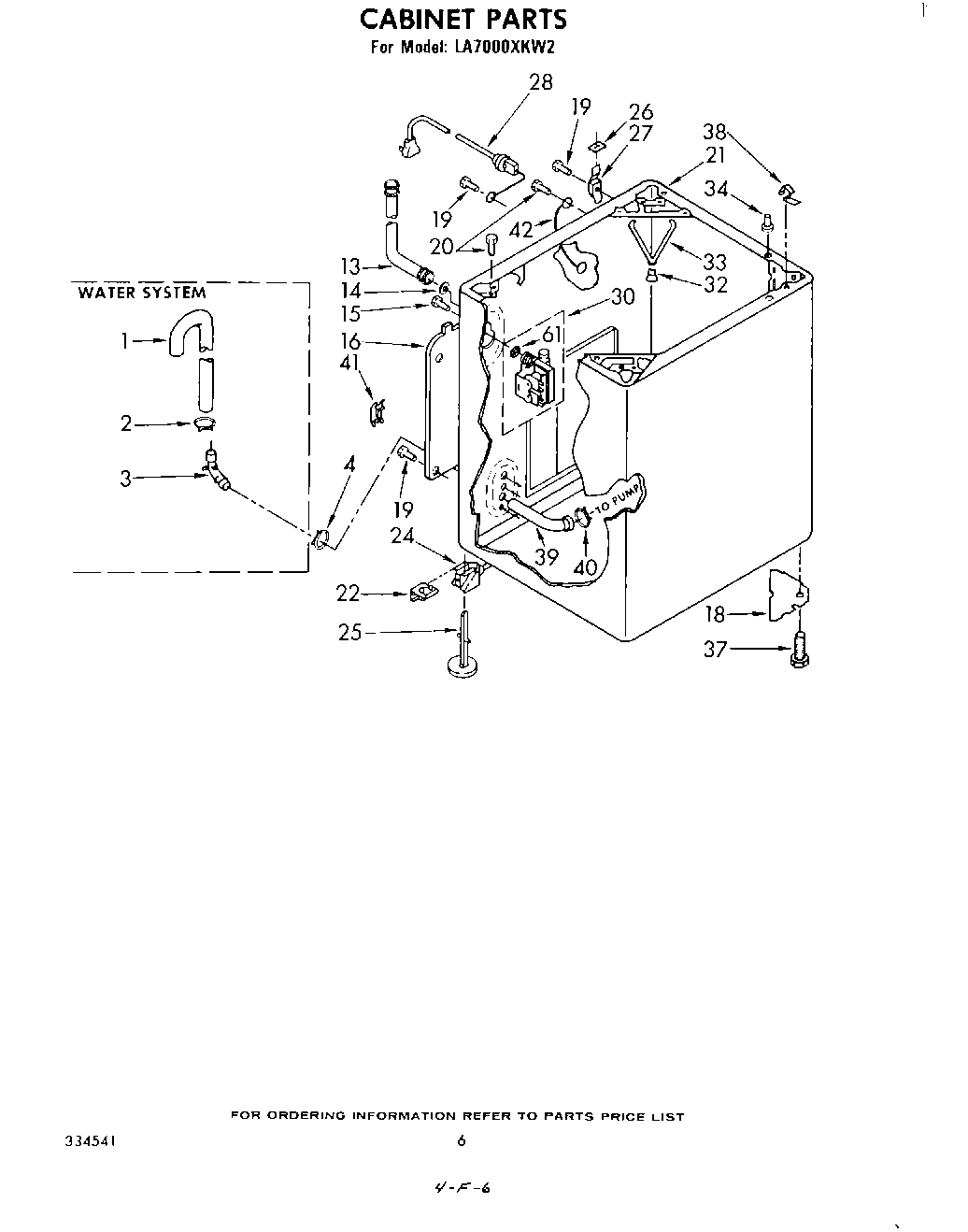

LA7000XKW2 05 – CABINET

Products

Position	Product
1	WP96743 Whirlpool Hose
2	WP356138 Whirlpool Hose Clamp
3	Connector, Hose
13	WP89503 Whirlpool Washer Fill Hose
14	WP16123 Whirlpool Washer
15	WP3351614 Whirlpool Screw
16	Panel, Rear
18	Plate, Gusset
20	SCREW
21	Cabinet (New Avocado)
21	Cabinet (Golden Harvest)
21	Cabinet (Almond)
21	Cabinet (White)
22	WP359364 Whirlpool Clip
24	Link, Leveling
25	WP358594 Whirlpool Leveling Feet
26	18849 Whirlpool Pad
27	Hinge, L.H.
27	Hinge, R.H.
28	Cord, Power (60 Hz.)
30	Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
30	Valve, Mixing (Alt.)
32	Spring, Snubber
33	Pad, Snubber
34	Locator, Top
37	WP367594 Whirlpool Leveling Feet
38	WP18776 Whirlpool Lock
39	Hose, Pump Discharge
40	WP285655 Whirlpool Hose Clamp
41	Plug, Cabinet
42	WPL 364089
61	WP96160 Whirlpool Washer Inlet Valve Screen
