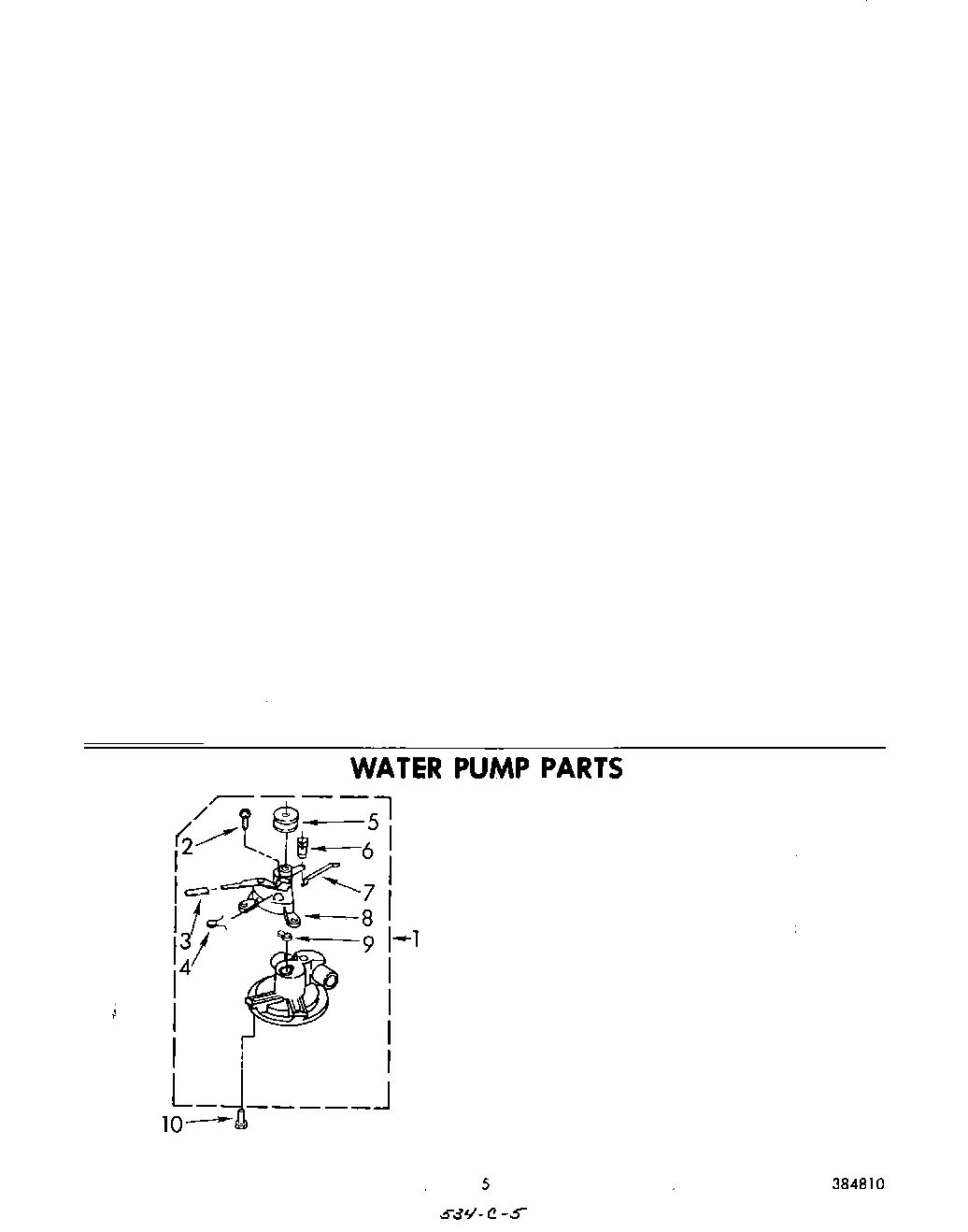

LA7000XMW0 04 – WATER PUMP

Products

Position	Product
1	Pump Assembly
1	350365 Whirlpool Dryer Washer Water Pump, 2-Port
2	WP273556 Whirlpool Screw
3	Sleeve
4	Spring, Toggle
5	Pulley
6	Lever, Valve
7	Rod, Connecting
8	Bearing Block Assembly
9	Wick, Oil
10	386011 Whirlpool Screw
