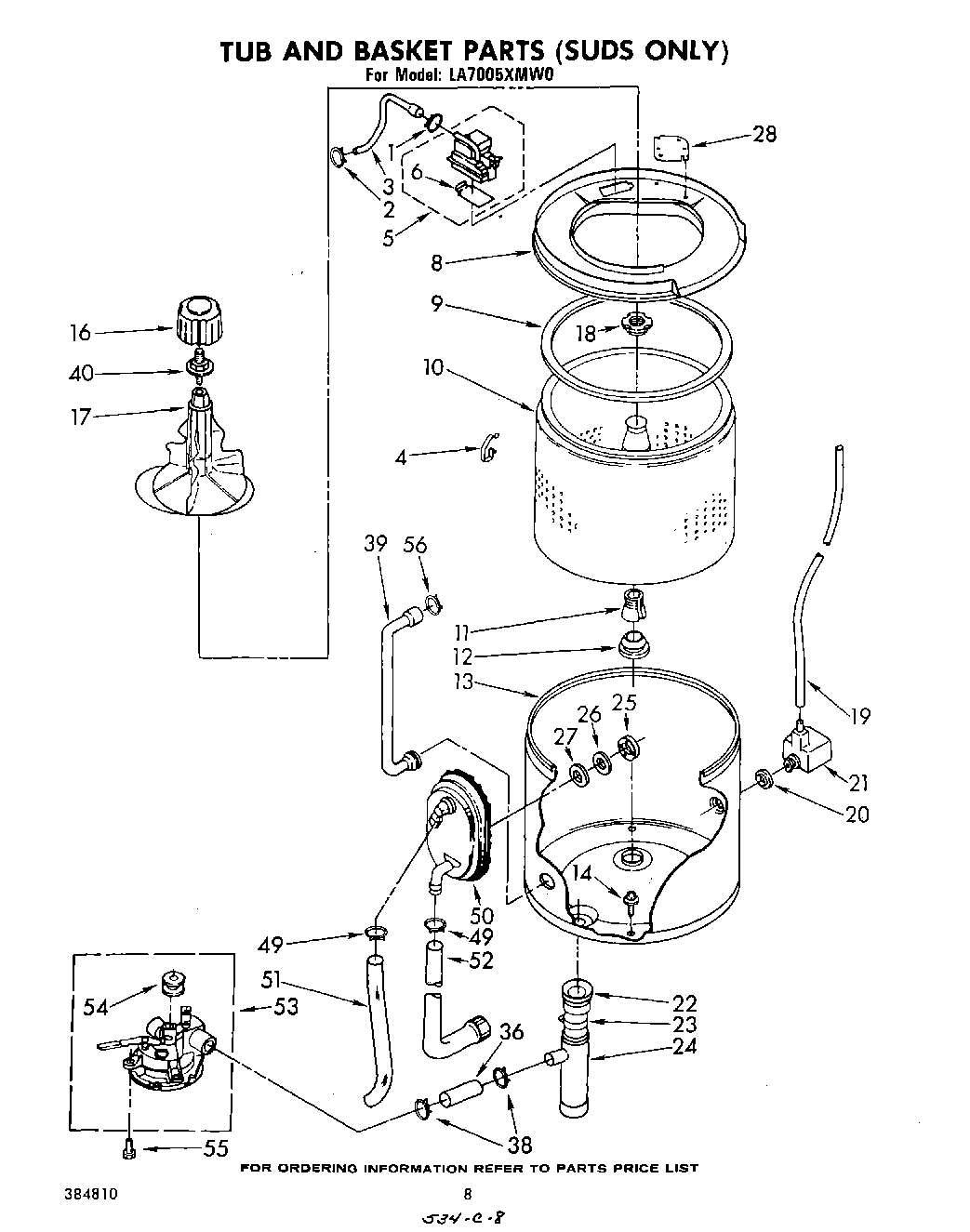

LA7000XMW0 06 – SUDS ONLYadmin2025-04-26T12:39:27+00:00LA7000XMW0 06 – SUDS ONLY
Products
| Position | Product |
|---|
| 3 | Hose, Water Inlet |
| 4 | Clip, Tub Ring (4) |
| 5 | Inlet, Water |
| 6 | Flapper |
| 8 | Ring & Filter, Tub (Includes Illus. 22) |
| 9 | Seal, Tub Ring |
| 10 | Basket |
| 11 | WP389140 Whirlpool Drive Block or Bell |
| 12 | W10814296 Whirlpool Washer Center Post Seal Gasket |
| 13 | Tub |
| 14 | Screw & Washer, Tub (4) |
| 16 | Cap, Agitator |
| 17 | Agitator |
| 18 | WP21366 Whirlpool Spanner Nut |
| 19 | WP353244 Whirlpool Hose |
| 20 | Seal |
| 21 | Air Dome Assembly |
| 22 | Hose, Tub Outlet |
| 23 | Clip, Hose |
| 24 | Manifold |
| 25 | Nut, Spanner |
| 26 | Washer, Fiber |
| 27 | Washer, Rubber |
| 28 | Plate, Snubber |
| 36 | Hose |
| 38 | WP285655 Whirlpool Hose Clamp |
| 39 | Hose, Bleach Dispenser |
| 40 | Stud, Agitator Shaft |
| 49 | Clamp, Hose (Alternate) |
| 50 | Filter |
| 51 | Hose, Filter Drain |
| 52 | Hose, Filter Drain |
| 53 | 350365 Whirlpool Dryer Washer Water Pump, 2-Port |
| 54 | Pulley |
| 55 | 386011 Whirlpool Screw |
| 56 | WP596669 Whirlpool Hose Clamp |
