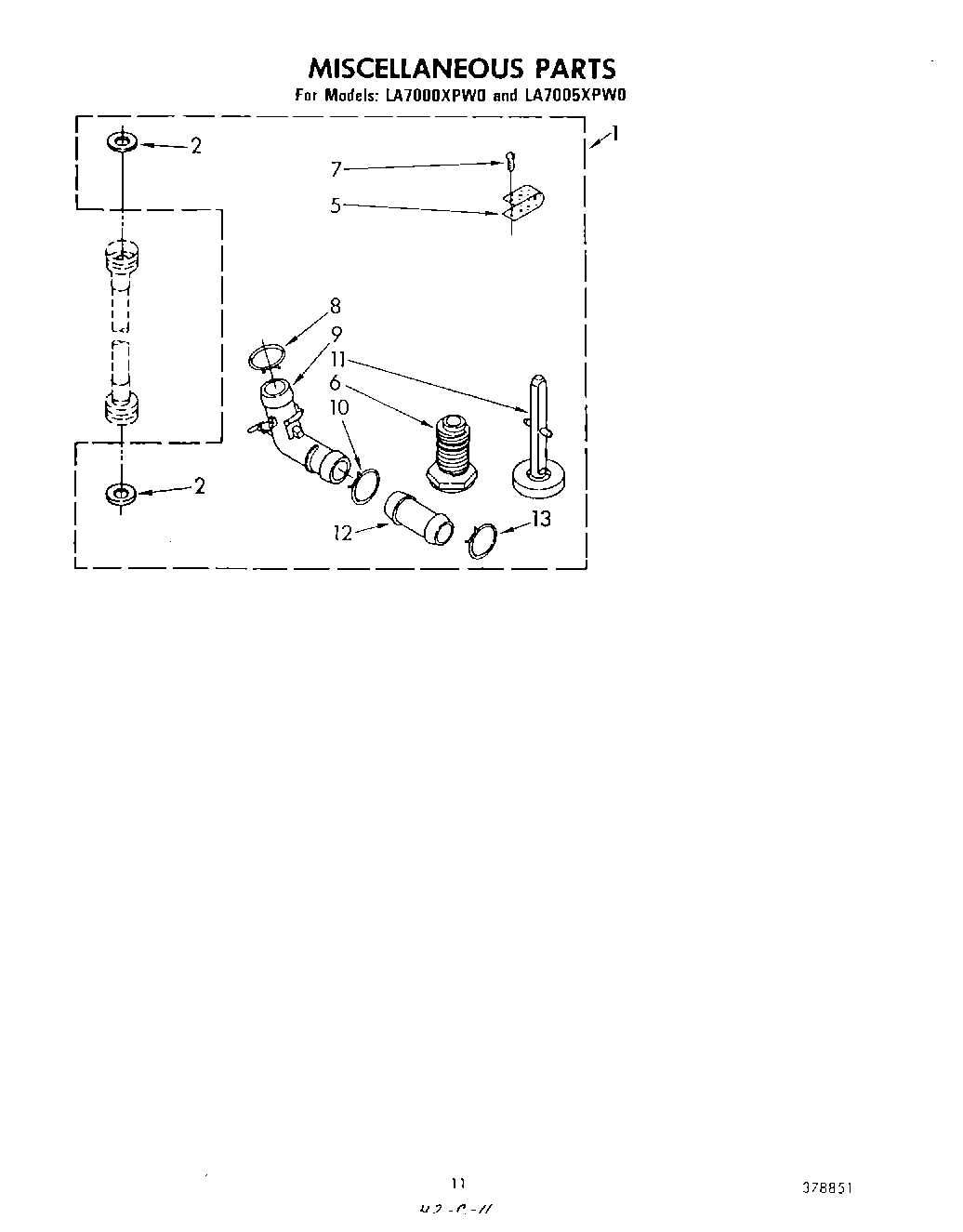

LA7000XPW0 09 – MISCELLANEOUS , LITERATURE AND OPTIONAL

Products

PositionProduct
1Miscellaneous Parts Bag
1Miscellaneous Parts Bag (Suds)
2WP16123 Whirlpool Washer
5Strap, Ground
6WP367594 Whirlpool Leveling Feet
7Screw, Ground (10-24 x 1)
8WP356138 Whirlpool Hose Clamp
9Connector, Hose
10WP285655 Whirlpool Hose Clamp
11WP358594 Whirlpool Leveling Feet
12WP16272 Whirlpool Hose Coupling
13WPL 799351
13Label, Energy Guide (Suds)
13Guide, Laundry
13Label, Energy Guide (Non-$FLSuds)
13Sheet, Installation Instructions (Suds)
13Sheet, Installation Instructions
13List, Repair Parts
13350930 Whirlpool White Spray Paint
13350938 Whirlpool Spray Gun
13350956 Whirlpool Spray Assembly
1372017 Whirlpool Appliance Touch-Up Paint White
13WP72107 Whirlpool Touchup
13Leveler (Thinner)
1372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1372113 Whirlpool Touch-Up Paint
13Golden Harvest
13Toast
13Paint, Spray (13 Oz.) (Platinum)
13WPL 72112
13Guide, Use & Care
