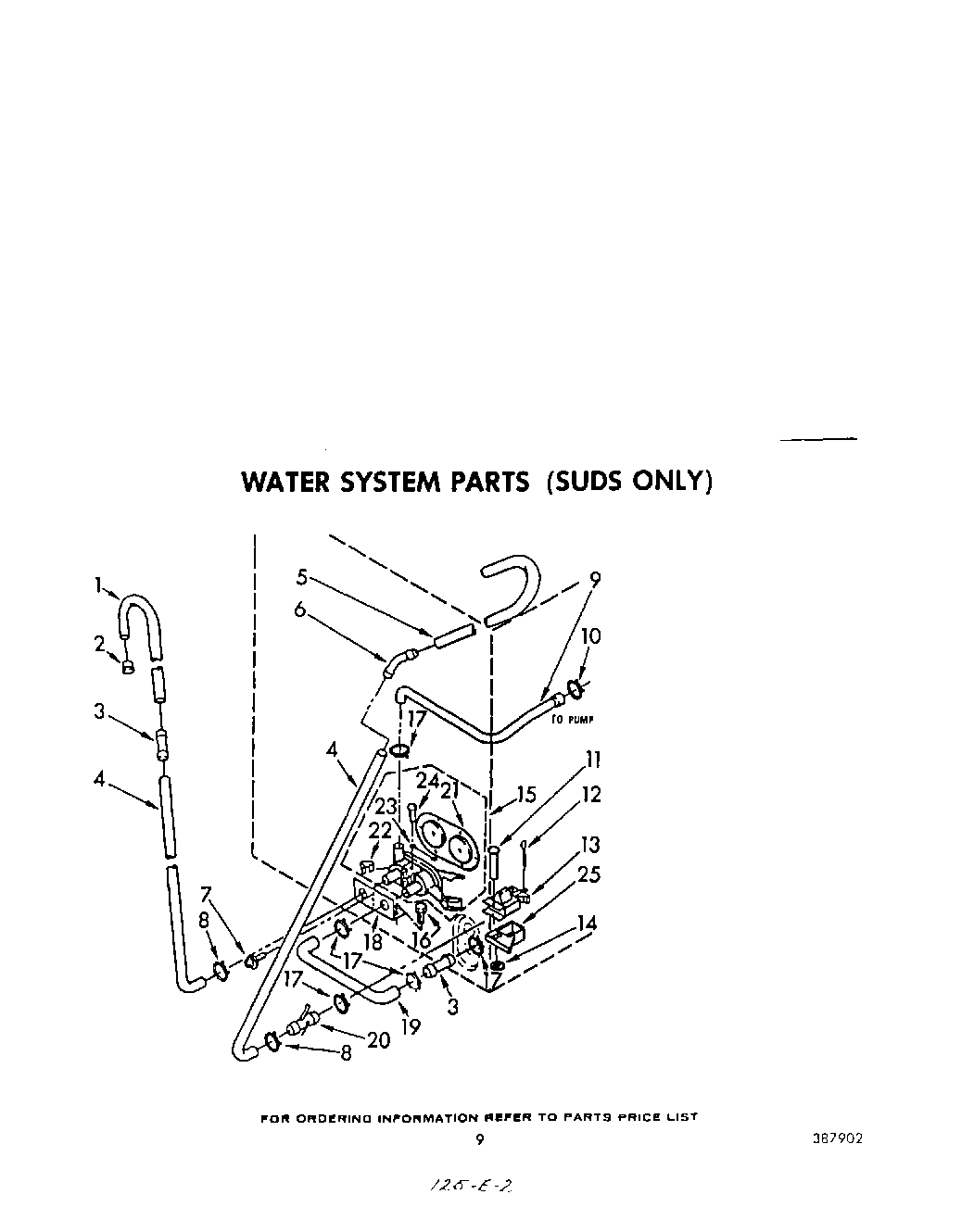

LA7000XPW1 07 – WATER SYSTEM (SUDS ONLY)admin2025-04-26T12:39:34+00:00LA7000XPW1 07 – WATER SYSTEM (SUDS ONLY)
Products
| Position | Product |
|---|
| 1 | Hose, Gooseneck |
| 2 | Strainer, Hose |
| 3 | WP16272 Whirlpool Hose Coupling |
| 4 | 96746 Whirlpool Drain Hose Assembly |
| 5 | WP96743 Whirlpool Hose |
| 6 | Connector, Hose |
| 7 | Screw & Washer |
| 8 | WP356138 Whirlpool Hose Clamp |
| 9 | Hose, Pump To Two-Way Valve |
| 10 | WP616099 Whirlpool Clamp |
| 11 | Rivet |
| 12 | Pin, Cotter (1/8 x 3/4) |
| 13 | Solenoid |
| 14 | WP90296 Whirlpool Clip |
| 15 | Two-Way Valve |
| 16 | SCREW |
| 17 | WP285655 Whirlpool Hose Clamp |
| 18 | Bracket |
| 19 | Hose, Two-Way Valve To Connector |
| 20 | Connector, Hose |
| 21 | Diaphragm, Valve |
| 22 | Clip, Retainer |
| 23 | Strap, Ground |
| 24 | WP90767 Whirlpool Screw |
| 25 | Shield, Two-Way Valve |
