LA7000XPW1 08 – CABINET

LA7000XPW1 08 – CABINET

Written by

in

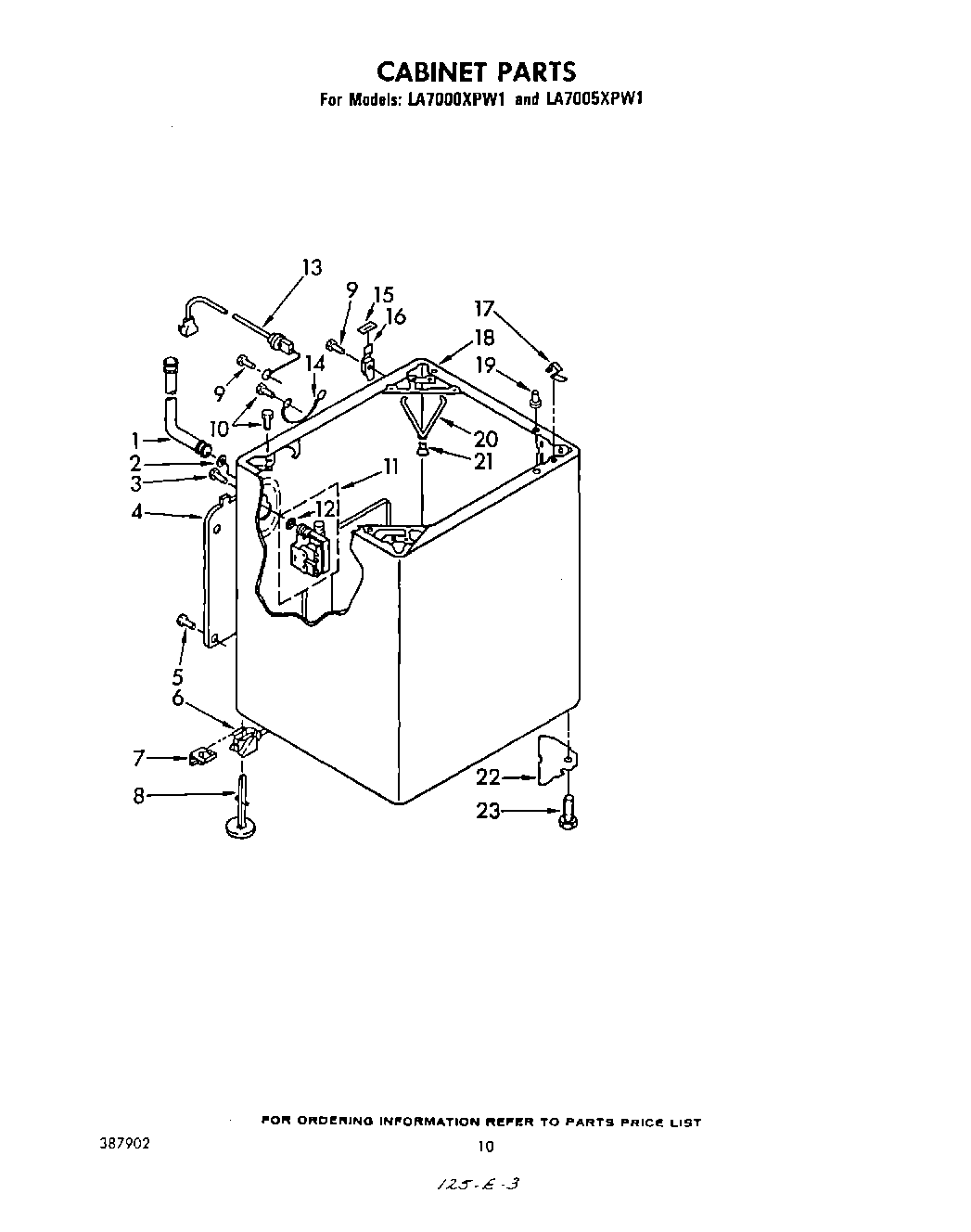

LA7000XPW1 08 – CABINET

Products

PositionProduct
1WP89503 Whirlpool Washer Fill Hose
2WP16123 Whirlpool Washer
3WP3390631 Whirlpool Screw
4Panel, Rear (Suds)
4Panel, Rear
6Link, Leveling
7WP359364 Whirlpool Clip
8WP358594 Whirlpool Leveling Feet
9SCREW
11Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
11Valve, Mixing (Alt.)
11Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
12WP96160 Whirlpool Washer Inlet Valve Screen
13Cord, Power (60 Hz.)
14WPL 364089
1518849 Whirlpool Pad
16Hinge, L.H.
16Hinge, R.H.
17WP18776 Whirlpool Lock
18Cabinet (Platinum)
18Cabinet (Toast)
18Cabinet (Golden Harvest)
18Cabinet (Almond)
18Cabinet
19Locator, Top
20Spring, Snubber
21Pad, Snubber
22Plate, Gusset
23WP367594 Whirlpool Leveling Feet
