LA7000XPW1 09 – MISCELLANEOUS, LITERATURE AND OPTIONAL

LA7000XPW1 09 – MISCELLANEOUS, LITERATURE AND OPTIONAL

Written by

in

LA7000XPW1 09 – MISCELLANEOUS, LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
L
WPL LIT385238
Instructions, Installation
Instructions, Installation (Suds)
Label, Energy Guide (Non-$FLSuds)
Label, Energy Guide (Suds)
Guide, Use & Care
Toast
Golden Harvest (Uncut)
Golden Harvest
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Almond (Uncut)

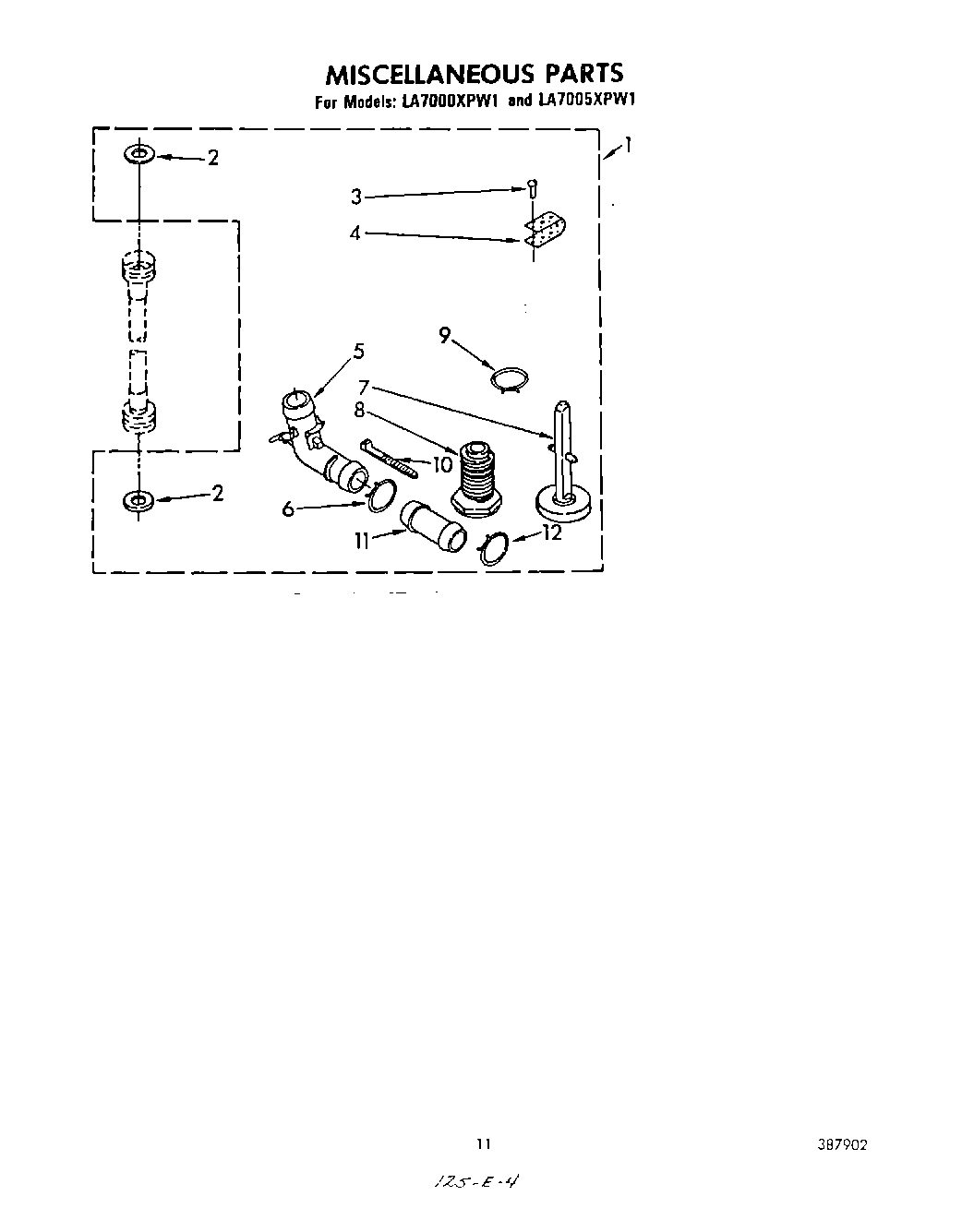

1Miscellaneous Parts Bag (Suds)
1Miscellaneous Parts Bag
2WP16123 Whirlpool Washer
3Screw, Ground (10-24 x 1)
4Strap, Ground
5Connector, Hose
7WP358594 Whirlpool Leveling Feet
8WP367594 Whirlpool Leveling Feet
9WP356138 Whirlpool Hose Clamp
10WPW10339879 Whirlpool Wire Tie
11WP16272 Whirlpool Hose Coupling
12WP285655 Whirlpool Hose Clamp
76Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
76Dryer
76WPL LIT677967
