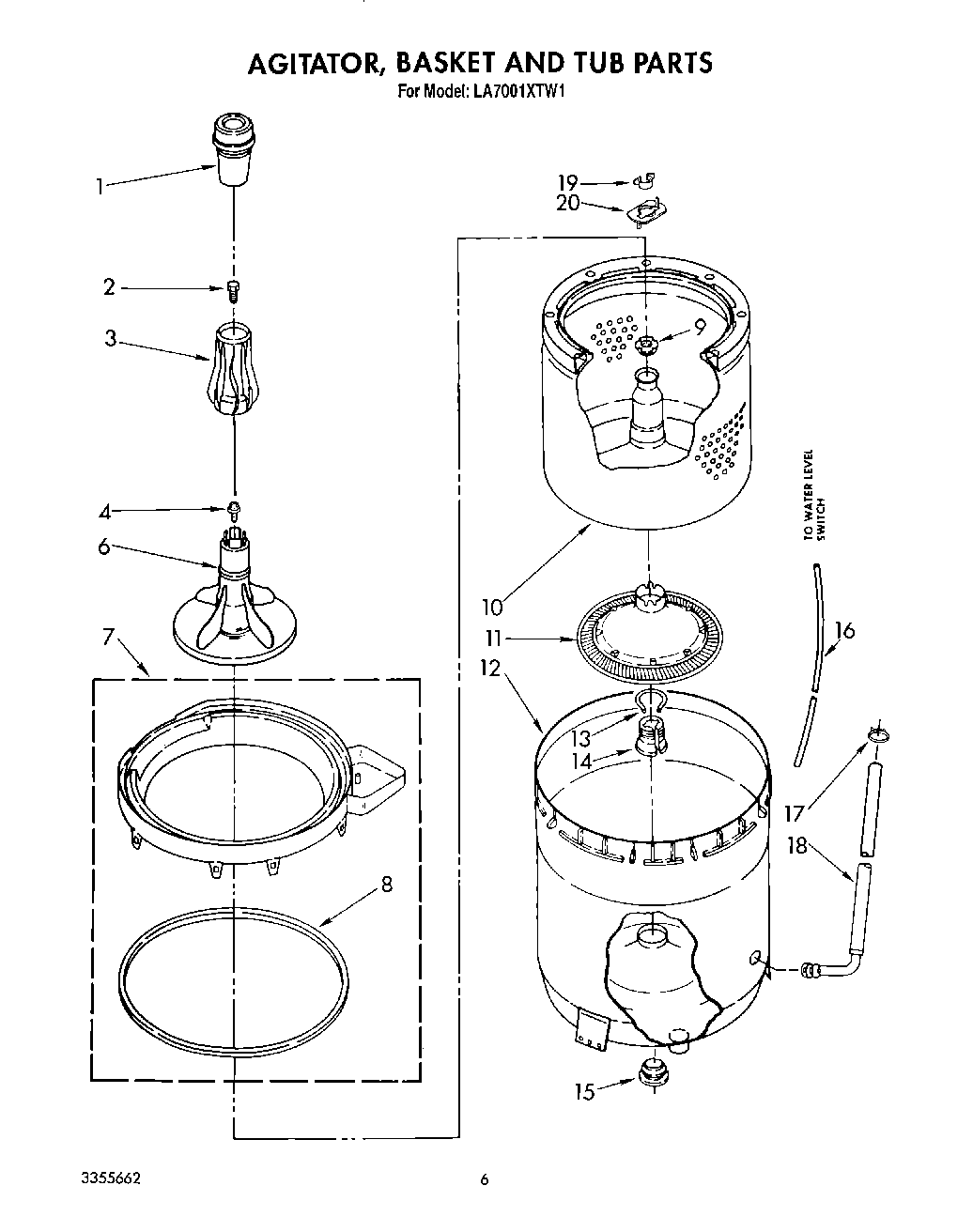

LA7001XTF1 05 – AGITATOR, BASKET AND TUB

LA7001XTF1 05 – AGITATOR, BASKET AND TUB

Written by

in

LA7001XTF1 05 – AGITATOR, BASKET AND TUB

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WPW10109200 Whirlpool Screw
3Filter, Manual
4WP358237 Whirlpool Agitator Bolt
6Agitator
7W10880720 Whirlpool Tub Ring
8WP3976308 Whirlpool Tub Seal
9WP21366 Whirlpool Spanner Nut
10W10389328 Whirlpool Basket
11285868 Whirlpool Washer Filter Plug Kit
123361596 Whirlpool Outer Tub Primary
13Lock, Filter
14WP389140 Whirlpool Drive Block or Bell
15W10814296 Whirlpool Washer Center Post Seal Gasket
16WP353244 Whirlpool Hose
17WP596669 Whirlpool Hose Clamp
18Hose, Bleach
19WP3354845 Whirlpool Clip
20WP8543666 Whirlpool Washer
