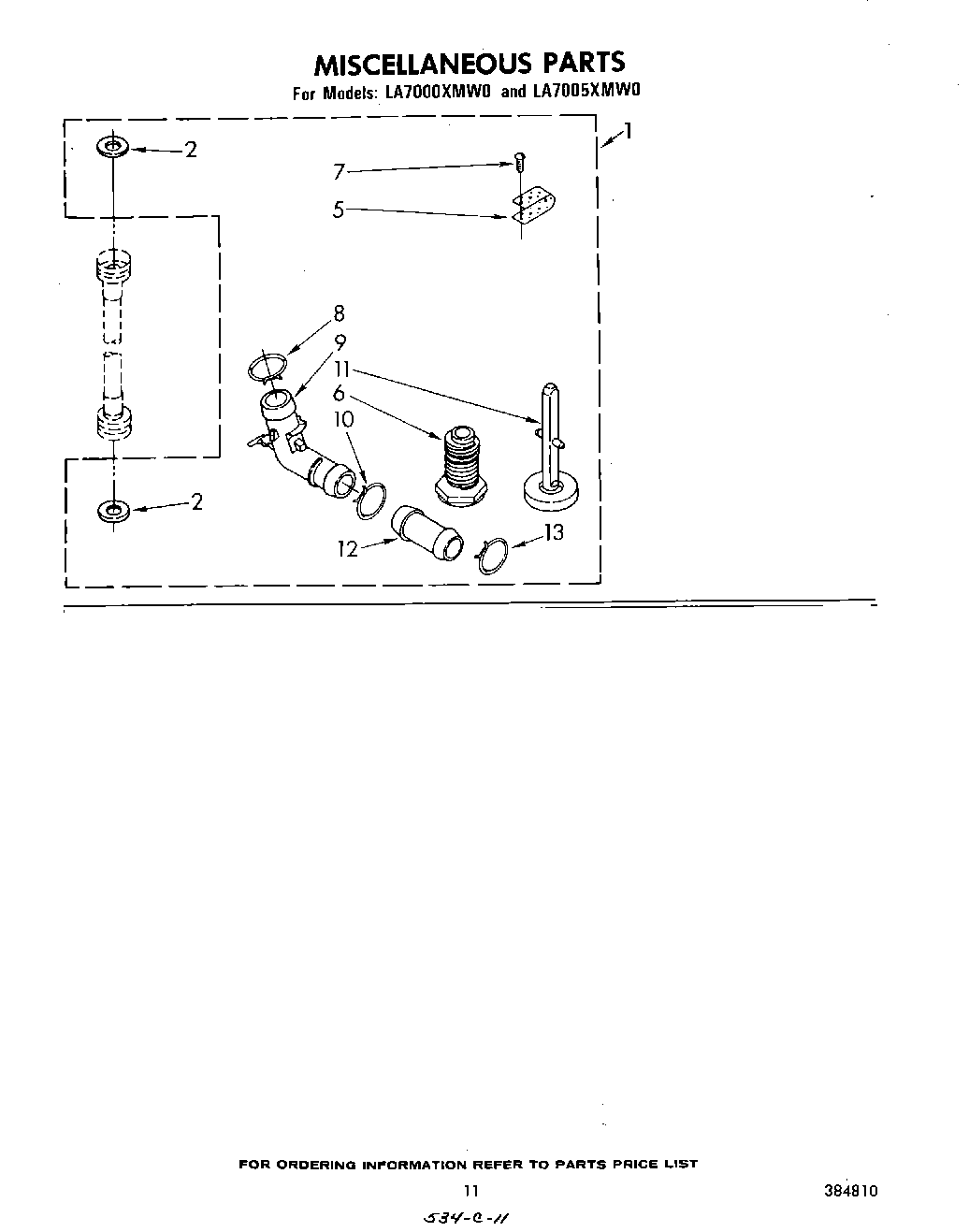

LA7005XMW0 09 – MISCELLANEOUS , LITERATURE AND OPTIONAL

Products

PositionProduct
1Miscellaneous Parts Bag
1Miscellaneous Parts Bag (Suds)
2WP16123 Whirlpool Washer
5Strap, Ground
6WP367594 Whirlpool Leveling Feet
7Screw, Ground (10-24 x 1)
8WP356138 Whirlpool Hose Clamp
9Connector, Hose
10WP285655 Whirlpool Hose Clamp
11WP358594 Whirlpool Leveling Feet
12WP16272 Whirlpool Hose Coupling
13List, Repair Parts
13WPL 799351
13Label, Energy Guide (Suds)
13Label, Energy Guide (Non-$FLSuds)
13Sheet, Installation Instructions
13Guide, Laundry
13Instructions, Installation (Suds)
13Paint, Spray 13 Oz. (Avocado)
1372109 Whirlpool Dacor Avocado Touch-Up Paint
13350938 Whirlpool Spray Gun
13350956 Whirlpool Spray Assembly
1372017 Whirlpool Appliance Touch-Up Paint White
13WP72107 Whirlpool Touchup
13Leveler (Thinner)
1372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1372113 Whirlpool Touch-Up Paint
13Golden Harvest
13Toast
13Paint, Spray (13 Oz.) (Platinum)
13WPL 72112
13350930 Whirlpool White Spray Paint
13Guide, Use & Care
