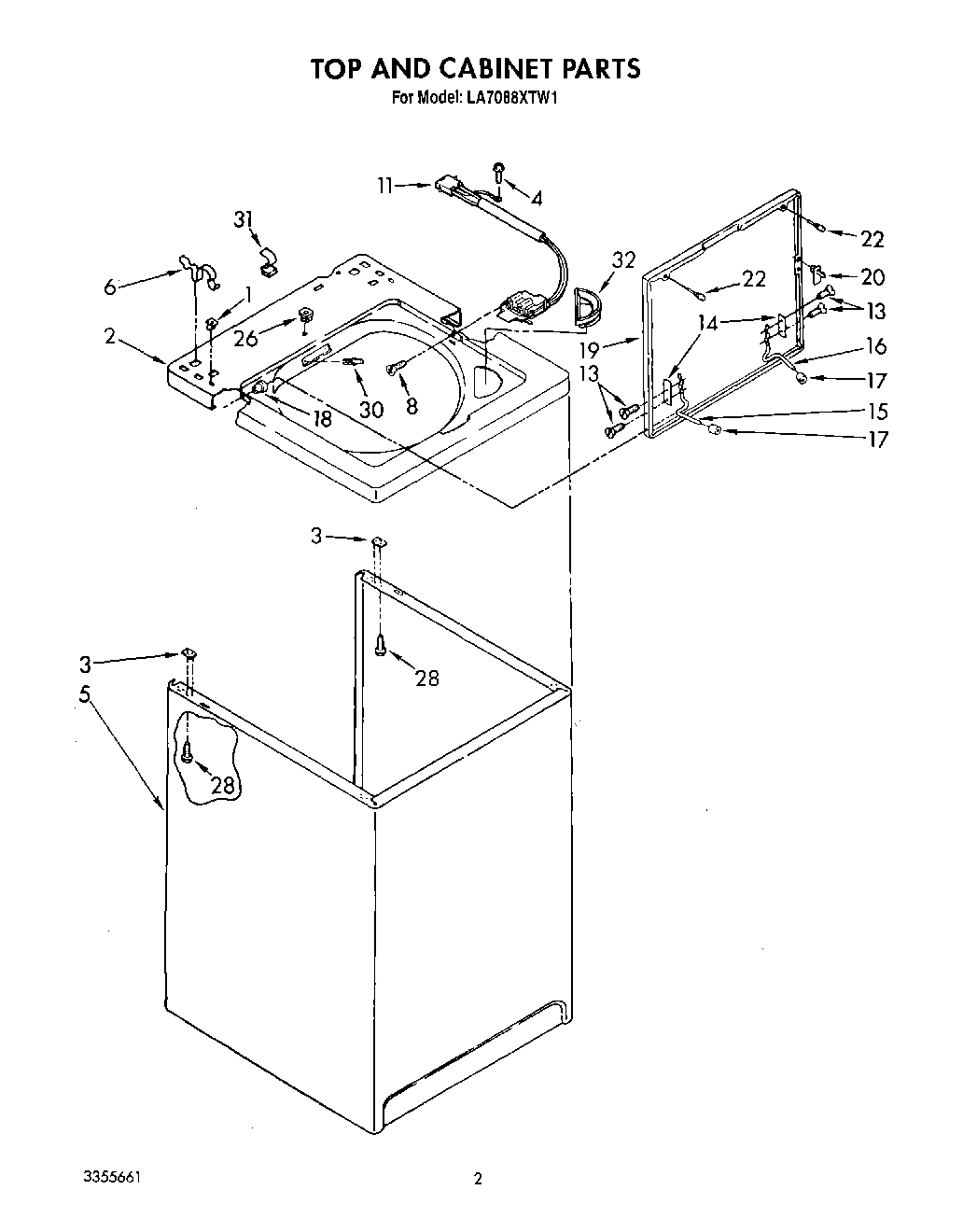

LA7088XTW1 02 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Shipping Kit
	WPL 72112
	WPL 89121
	WPL LIT3347019
	WPL LIT3351410
	WPL LIT3352092
	WPL LIT3356168
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	Golden Harvest
	WPL LIT3353290
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	WP285195 Whirlpool Sealer Assembly
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT3355661
	285320 Whirlpool Washer Siphon Break Kit
	Drain Protector (Not Included)
	72113 Whirlpool Touch-Up Paint
	350572 Whirlpool Oil Transmission 15 Oz
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1	Nut, Push-In (2)
2	Top (Toast)
2	Top (Almond)
2	Top (White)
2	Top (Golden Harvest)
2	Top (Platinum)
3	WP62750 Whirlpool Spacer
5	Cabinet (Golden Harvest)
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Almond)
5	Cabinet (Toast)
5	Cabinet (Platinum)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Golden Harvest)
19	Lid (Almond)
19	Lid (Platinum)
19	Lid (White)
19	Lid (Toast)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
26	Stop, Push-In Top
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
32	WP3362952 Whirlpool Bezel
