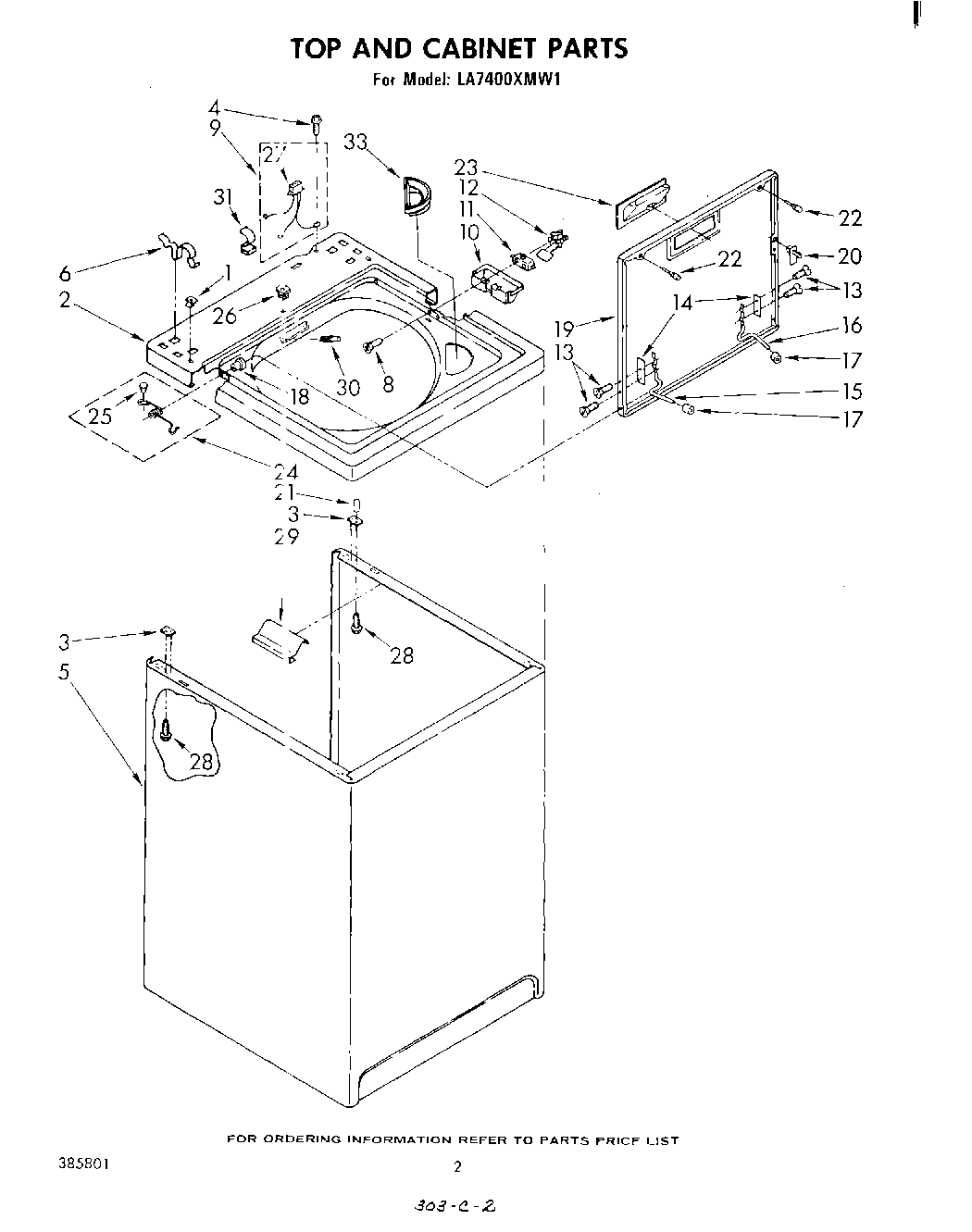

LA7400XMW1 02 – TOP AND CABINET, LITERATURE AND OPTIONAL

Products

PositionProduct
1Nut, Push-In (2)
2Top (Coffee)
2Top (New Avocado)
2Top (White)
2Top (Almond)
2Top (Golden Harvest)
3WP62750 Whirlpool Spacer
5Cabinet (New Avocado)
5Cabinet (Coffee)
5Cabinet (White)
5Cabinet (Almond)
5Cabinet (Golden Harvest)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Golden Harvest)
19Lid (Almond)
19Lid (Coffee)
19Lid (White)
19Lid (New Avocado)
20WP358684 Whirlpool Strike Assembly
21W10491983 Whirlpool Tine Tip
22WP9724509 Whirlpool Bumper
23Handle, Lid (Golden Harvest)
23Handle, Lid (White)
23Handle, Lid (Almond)
23Handle, Lid (Coffee)
23Handle, Lid (New Avocado)
24Spring & Button, Lid ((L.H.))
24Spring & Button, Lid ((R.H.))
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
29Support Protector
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
33WPL 385030
33WPL 385801
33WPL 383976
33WPL 386156
33Guide, Laundry
33LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
33Golden Harvest (Uncut)
3372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
33Almond (Uncut)
33Leveler (Thinner)
33WP72107 Whirlpool Touchup
33799344 Whirlpool Refrigerator Paint
3372017 Whirlpool Appliance Touch-Up Paint White
33350956 Whirlpool Spray Assembly
33350930 Whirlpool White Spray Paint
33WP285195 Whirlpool Sealer Assembly
3372109 Whirlpool Dacor Avocado Touch-Up Paint
33WP3362952 Whirlpool Bezel
33WPL 261880
33350572 Whirlpool Oil Transmission 15 Oz
33WPL 799351
33Enamel, New Avocado (1 Qt. Uncut)
33Enamel, Coffee (1 Qt. Uncut)
33Paint, Spray 13 Oz. (Avocado)
33paint, spray 13 oz. (coffee)
33Paint, Touch-Up 1/2 Oz. (Coffee)
33350938 Whirlpool Spray Gun
