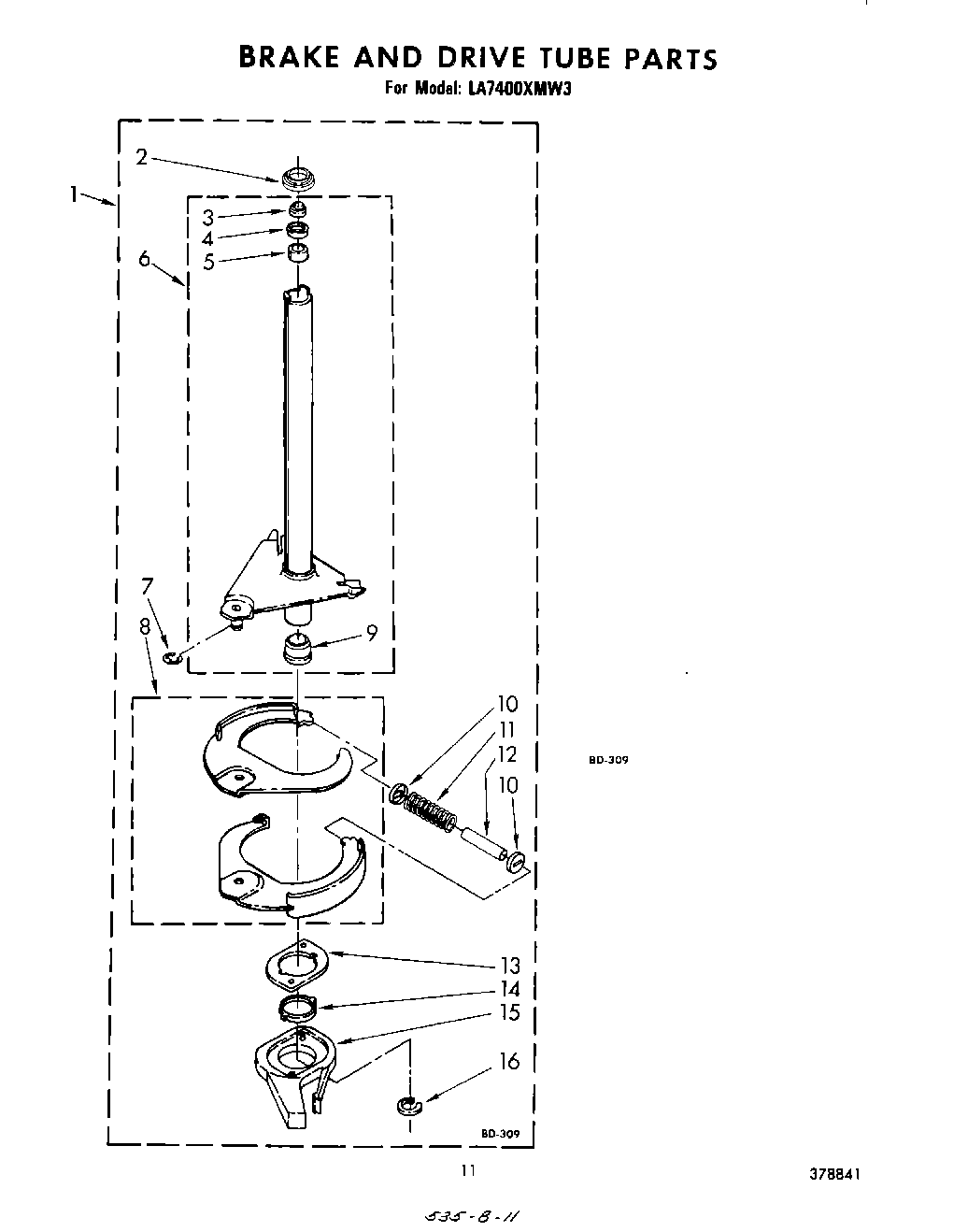

LA7400XMW3 09 – BREAK AND DRIVE TUBE

LA7400XMW3 09 – BREAK AND DRIVE TUBE

Written by

in

LA7400XMW3 09 – BREAK AND DRIVE TUBE

Products

PositionProduct
2WP62658 Whirlpool Seal Ring
3WP91939 Whirlpool Shaft Seal
4WP356427 Whirlpool Shaft Seal
5Spacer, Drive Tube
7WP354987 Whirlpool C-Clip
8W10820043 Whirlpool Washer Drive and Brake Basket Assembly
9WP8546462 Whirlpool Bearing
10285658 Whirlpool Sleeve Kit
11WP62647 Whirlpool Spring Pressure
13WP8546461 Whirlpool Brake Cam Assembly
14WP63022 Whirlpool Sleeve
15285790 Whirlpool Washer Clutch Band and Lining Kit
16WPW10083200 Whirlpool Wire Ring
16LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
