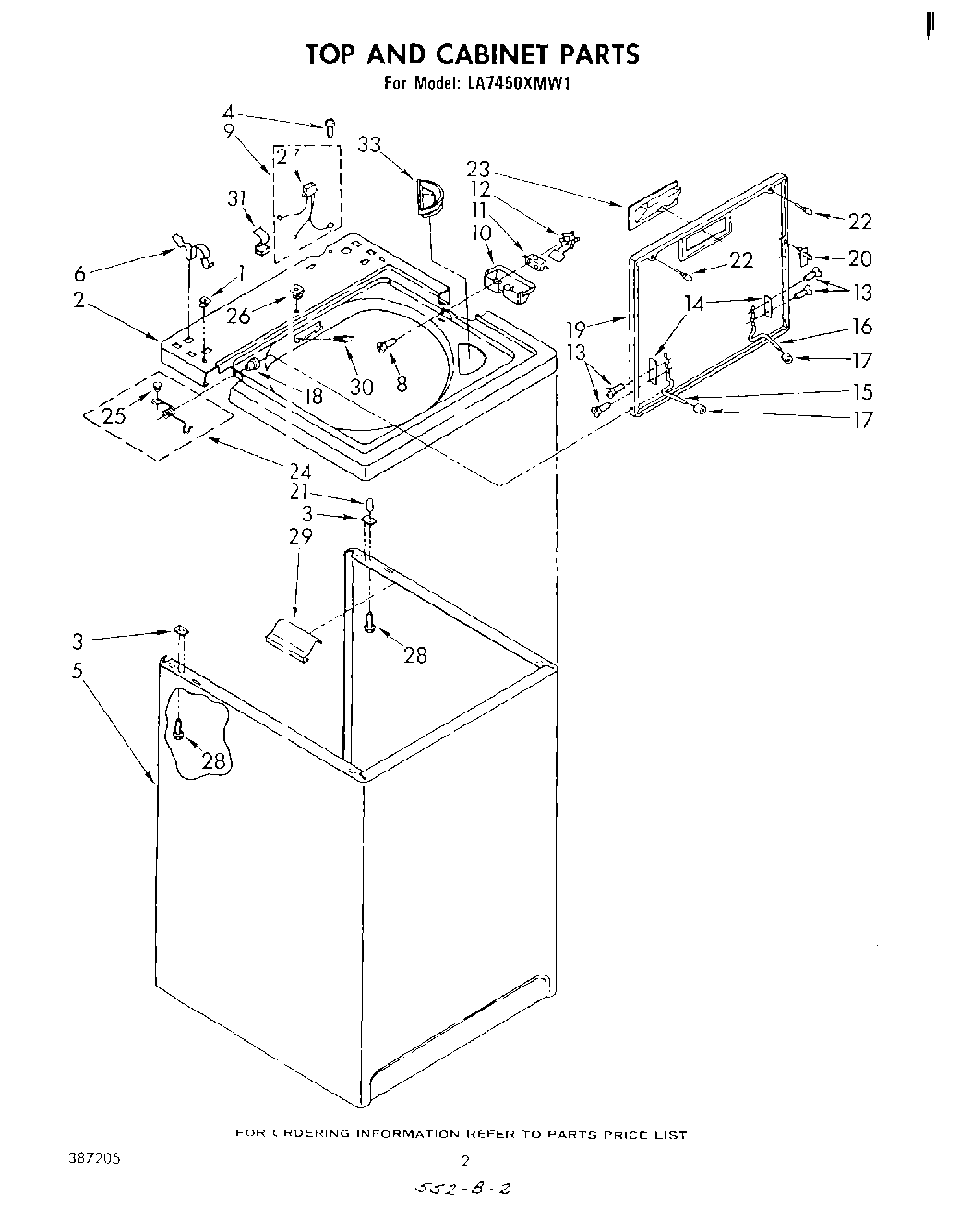

LA7450XMW1 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

LA7450XMW1 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Written by

in

LA7450XMW1 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

PositionProduct
1Nut, Push-In (2)
2Top (Golden Harvest)
2Top (Platinum)
2Top (Toast)
2Top (Almond)
2Top (White)
3WP62750 Whirlpool Spacer
5Cabinet (White)
5Cabinet (Golden Harvest)
5Cabinet (Almond)
5Cabinet (Toast)
5Cabinet (Platinum)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Toast)
19Lid (Golden Harvest)
19Lid (Platinum)
19Lid (Almond)
19Lid (White)
20WP358684 Whirlpool Strike Assembly
21W10491983 Whirlpool Tine Tip
22WP9724509 Whirlpool Bumper
23Handle, Lid (Almond)
23Handle, Lid (Platinum)
23Handle, Lid (Toast)
23Handle, Lid (Golden Harvest)
23Handle, Lid (White)
24Spring & Button, Lid ((R.H.))
24Spring & Button, Lid ((L.H.))
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
29Support Protector
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
33350572 Whirlpool Oil Transmission 15 Oz
33Leveler (Thinner)
33Almond (Uncut)
33WPL 261880
33WP72107 Whirlpool Touchup
33799344 Whirlpool Refrigerator Paint
3372017 Whirlpool Appliance Touch-Up Paint White
33350956 Whirlpool Spray Assembly
33350938 Whirlpool Spray Gun
33350930 Whirlpool White Spray Paint
33WPL 385042
33WPL 386187
3372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
33WPL 383976
33WPL 799351
33WP285195 Whirlpool Sealer Assembly
33WP3362952 Whirlpool Bezel
33Guide, Laundry
33LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
33WPL 72112
33Platinum (Uncut)
33Enamal, Toast (1 Qt. Uncut)
33Paint, Spray (13 Oz.) (Platinum)
33Toast
33Golden Harvest (Uncut)
3372113 Whirlpool Touch-Up Paint
33WPL 387205
