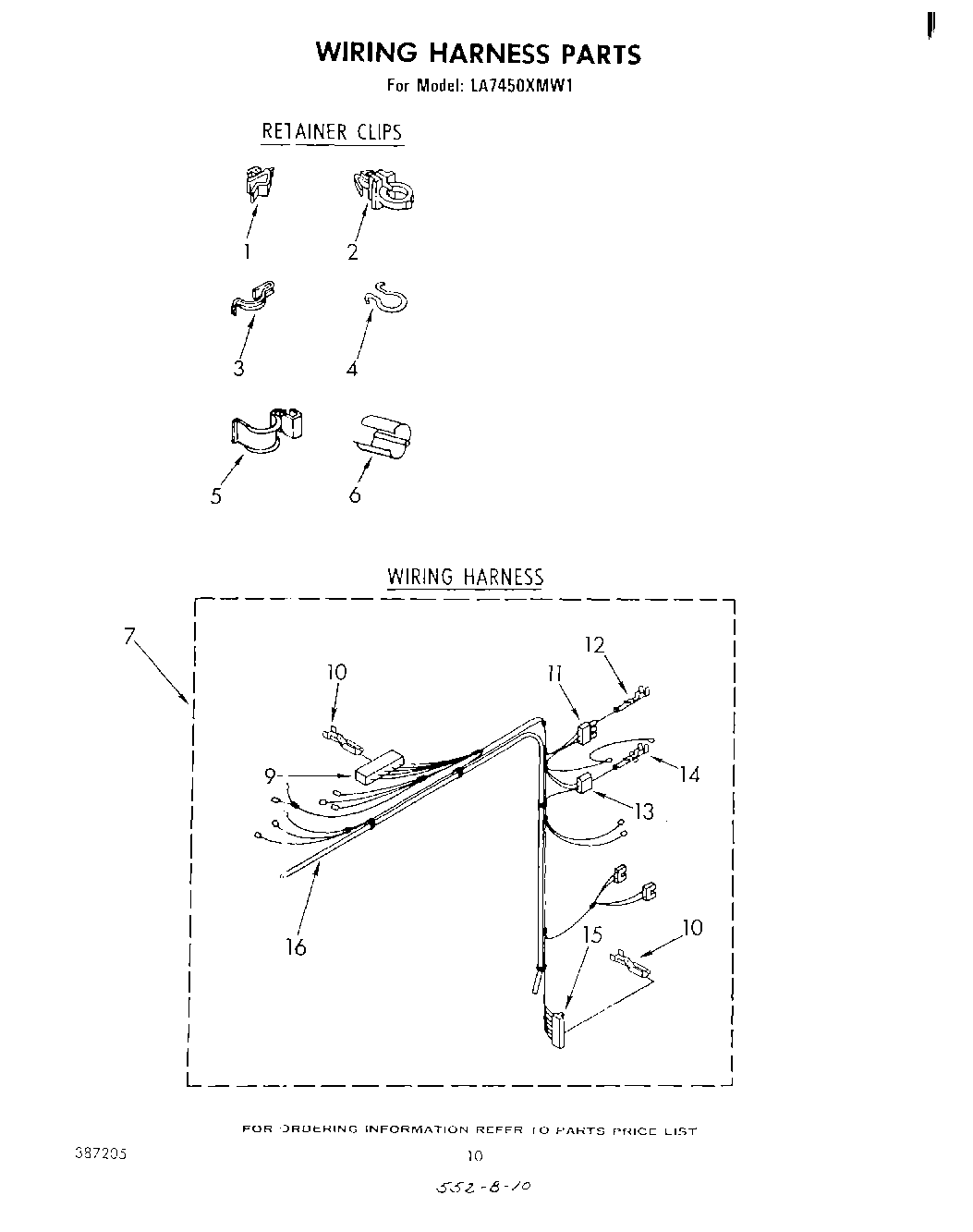

LA7450XMW1 08 – WIRING HARNESS

Products

Position	Product
1	Clip, Harness
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP62658 Whirlpool Seal Ring
2	Clip, Harness
3	WP91939 Whirlpool Shaft Seal
3	8528351 Whirlpool Clip
4	WP356427 Whirlpool Shaft Seal
4	Clip, Harness (2)
5	WP90016 Whirlpool Clip
5	Spacer, Drive Tube
6	Protector, Harness
6	WP64208 Whirlpool Spin Tube
7	Wiring Harness & Pressure Switch Hose
7	W10083190 Whirlpool Ring-E
8	285438 Whirlpool Brake Shoe
9	W10876590 Whirlpool Connector
9	WP8546462 Whirlpool Bearing
10	285658 Whirlpool Sleeve Kit
10	Terminal, Female
11	WP62647 Whirlpool Spring Pressure
11	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12	WP94614 Whirlpool Terminal
13	353424 Whirlpool Connector
13	WP8546461 Whirlpool Brake Cam Assembly
14	WP63022 Whirlpool Sleeve
14	WP596797 Whirlpool Terminal
15	WP62505 Whirlpool Connector
15	285790 Whirlpool Washer Clutch Band and Lining Kit
16	WPW10083200 Whirlpool Wire Ring
16	WP353244 Whirlpool Hose
