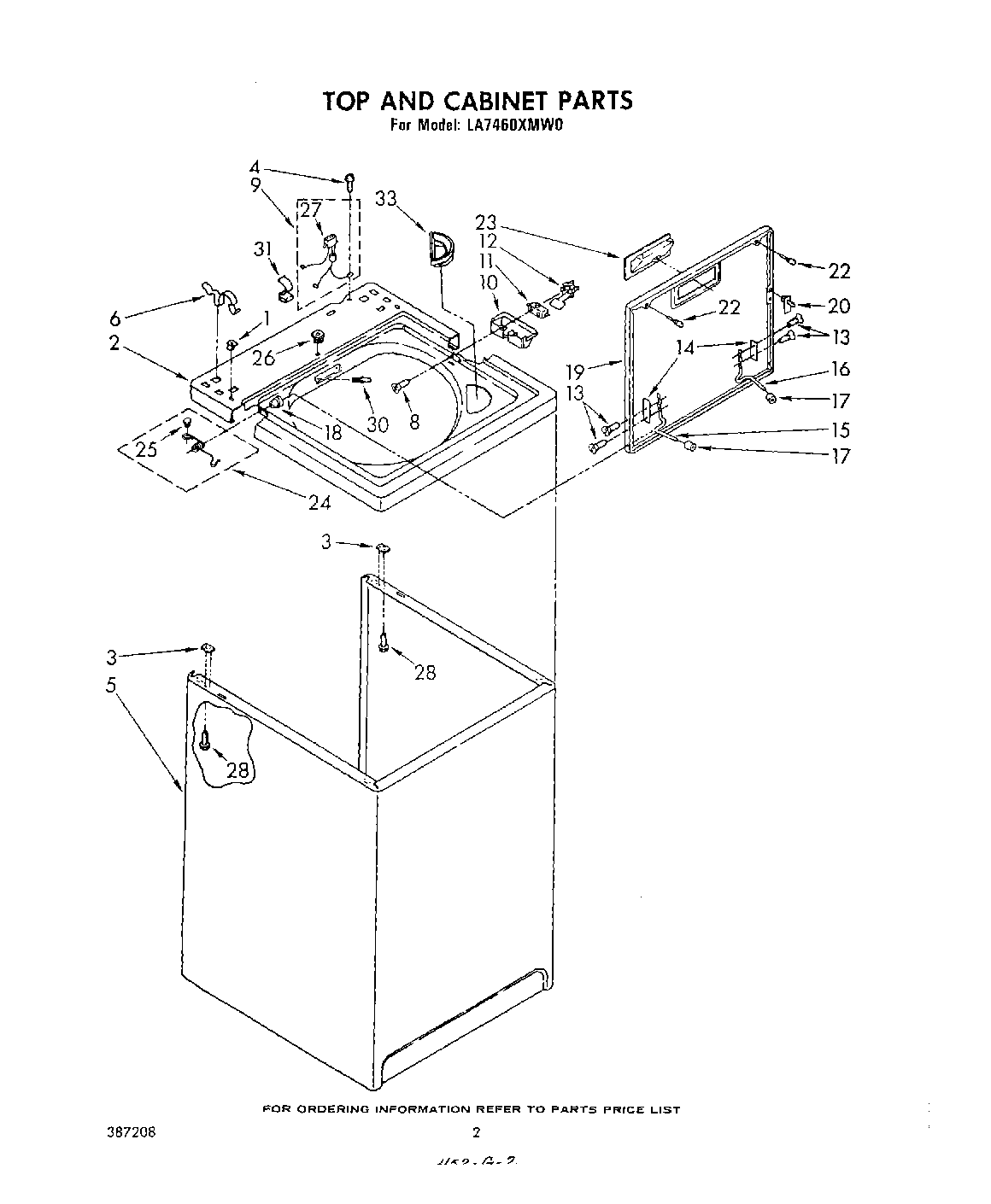

LA7460XMW0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

LA7460XMW0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Written by

in

LA7460XMW0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

PositionProduct
1Nut, Push-In (2)
2Top (Platinum)
2Top (Toast)
2Top (White)
2Top (Almond)
2Top (Golden Harvest)
3WP62750 Whirlpool Spacer
5Cabinet (White)
5Cabinet (Almond)
5Cabinet (Golden Harvest)
5Cabinet (Toast)
5Cabinet (Platinum)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Platinum)
19Lid (Toast)
19Lid (Almond)
19Lid (White)
19Lid (Golden Harvest)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
23Handle, Lid (Golden Harvest)
23Handle, Lid (Toast)
23Handle, Lid (White)
23Handle, Lid (Almond)
23Handle, Lid (Platinum)
24Spring & Button, Lid ((R.H.))
24Spring & Button, Lid ((L.H.))
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
33WPL 799351
33Enamal, Toast (1 Qt. Uncut)
33WP285195 Whirlpool Sealer Assembly
33Platinum (Uncut)
33WPL 72112
33350930 Whirlpool White Spray Paint
33WPL 386218
33Guide, Laundry
33WPL 387245
3372017 Whirlpool Appliance Touch-Up Paint White
33350956 Whirlpool Spray Assembly
33350938 Whirlpool Spray Gun
33WPL 383978
33799344 Whirlpool Refrigerator Paint
33Almond (Uncut)
33350572 Whirlpool Oil Transmission 15 Oz
3372113 Whirlpool Touch-Up Paint
33WPL 261880
33WP3362952 Whirlpool Bezel
33Golden Harvest (Uncut)
33LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
33Toast
3372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
33Paint, Spray (13 Oz.) (Platinum)
33Leveler (Thinner)
33WP72107 Whirlpool Touchup
33WPL 387208
