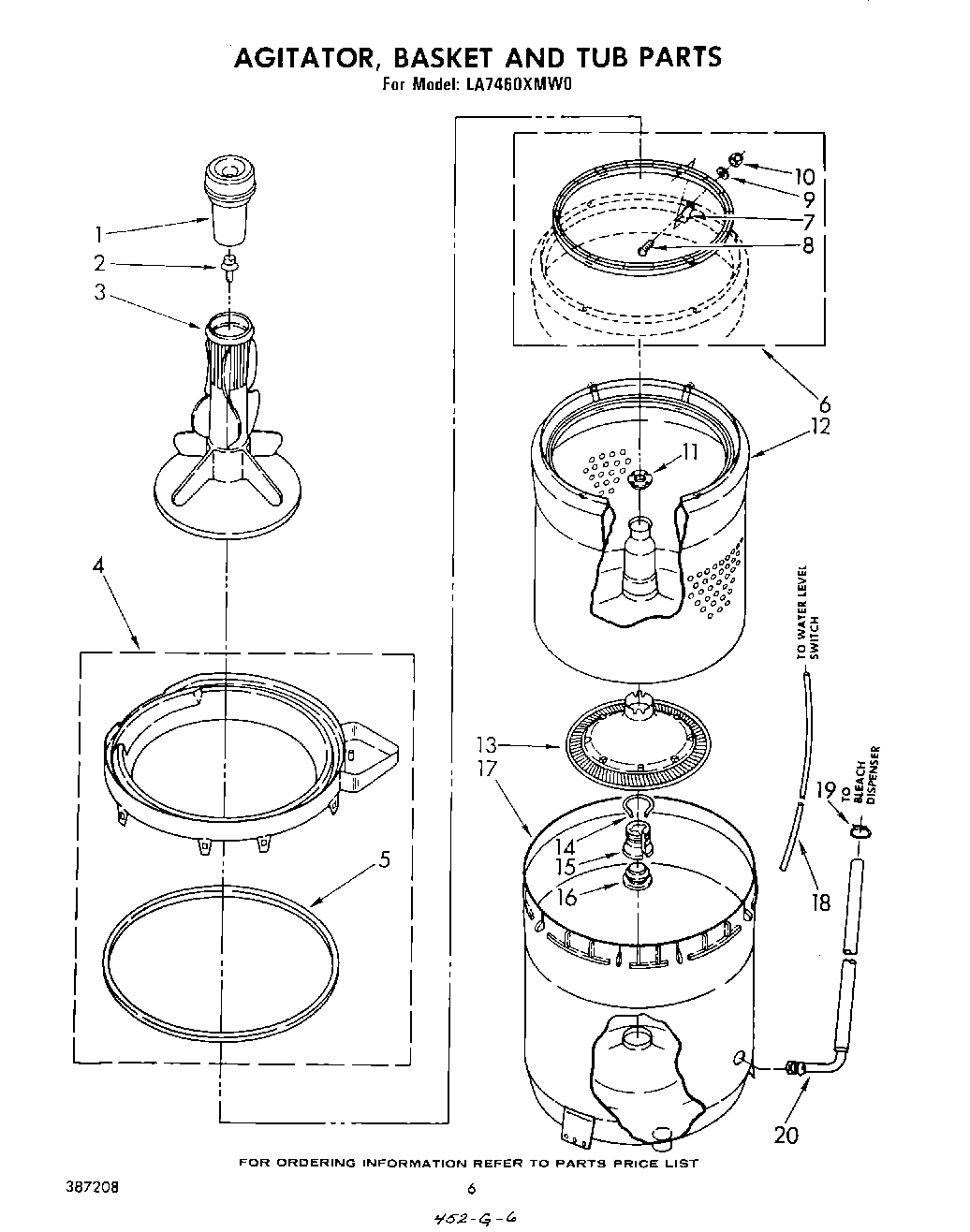

LA7460XMW0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP63235 Whirlpool Agitator Assembly
4Tub Ring & Gasket
5WP3359586 Whirlpool Tub Seal
6Clothes Guard Repair Kit
7Clip, Clothes Guard (6)
8WP486754 Whirlpool Compactor Screw
9Washer, Nylon (6)
10Locknut (6)
11WP21366 Whirlpool Spanner Nut
12Basket & Clothes Guard (Includes Illus. 7)
13285868 Whirlpool Washer Filter Plug Kit
14Lock, Filter
15WP389140 Whirlpool Drive Block or Bell
16W10814296 Whirlpool Washer Center Post Seal Gasket
17Tub
18WP353244 Whirlpool Hose
19WP596669 Whirlpool Hose Clamp
20Hose, Bleach
