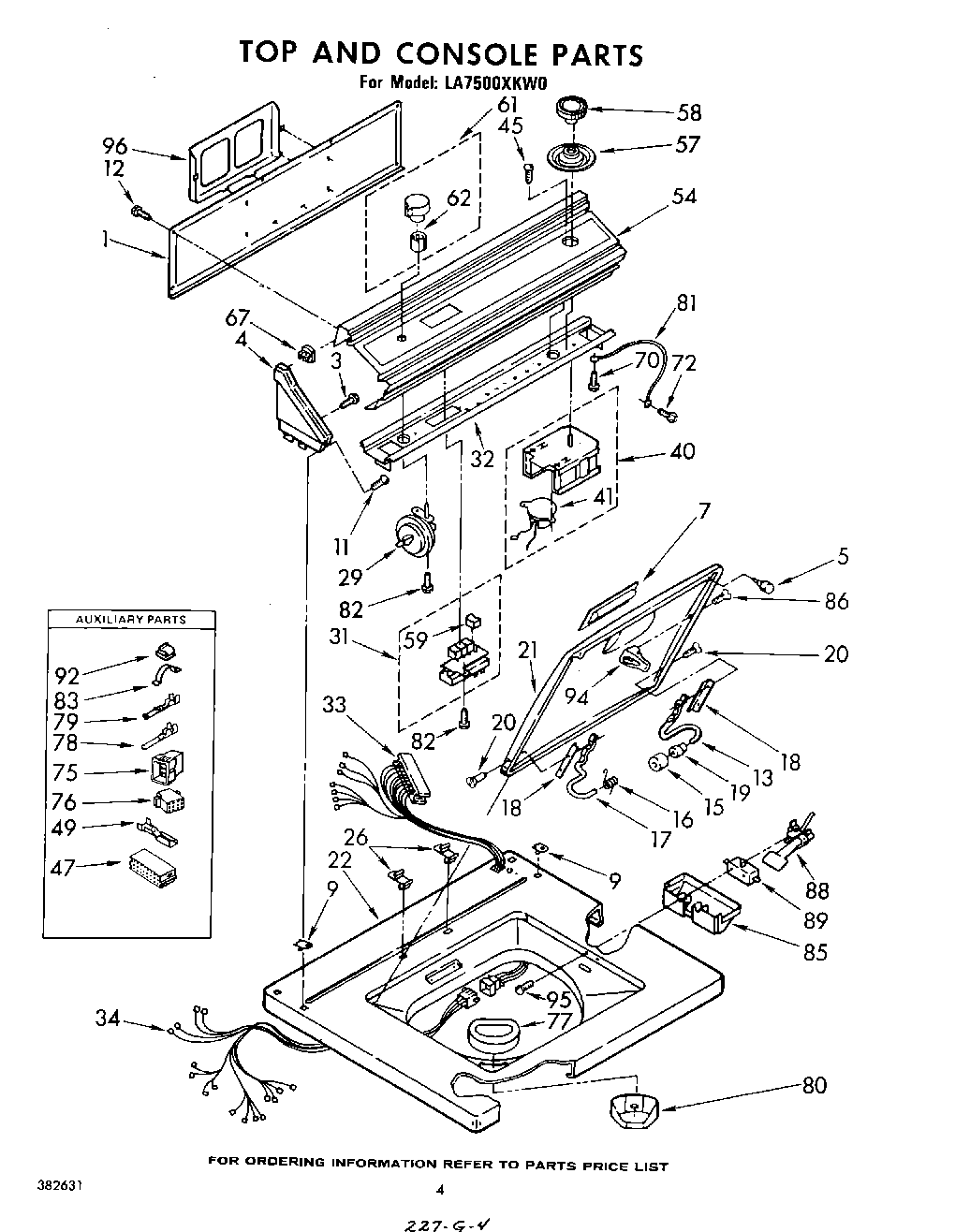

LA7500XKW0 03 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
3WPL 355326
4Cap, End L.H. (Golden Harvest)
4Cap, End L.H. (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End (L.H.) (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Almond)
5WP9724509 Whirlpool Bumper
7Handle, Lid (White)
7Handle, Lid (Almond)
7Handle, Lid (Golden Harvest)
9Nut, Push-In (2)
11Screw, 8-18 x 1 (2)
12W11693756 Whirlpool Screw Assembly
13WP91770 Whirlpool Hinge
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (White)
21Lid (Almond)
21Lid (Golden Harvest)
22Top (Golden Harvest)
22Top (Almond)
22Top (White)
26Stop, Push-In Top
29Switch, Water Level
31Switch, Water Temperature
32Bracket, Control
33WPL 359325
34Harness, Cabinet
40Timer Assembly, 60 Hz. (Mallory (Alternate))
40Timer Assembly, 60 Hz. (C.C.A. (Alternate))
41Motor, Timer 60 Hz.
41Use W/C.C.A. Timer
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
49Terminal, Female
54Panel, Control
57Dial, Timer
58Knob, Timer
59WPL 301008
61WPL 690301
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
70WP3351614 Whirlpool Screw
72SCREW
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
77WPL 352821
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
80WPL 352827
813184020 Whirlpool Oven Wire
82WP90767 Whirlpool Screw
838528351 Whirlpool Clip
85WP359231 Whirlpool Shield
86Screw & Washer
88Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
92WP90016 Whirlpool Clip
94Strike, Lid Switch
95Screw & Washer, Lid Switch (2)
96Rack, Literature
