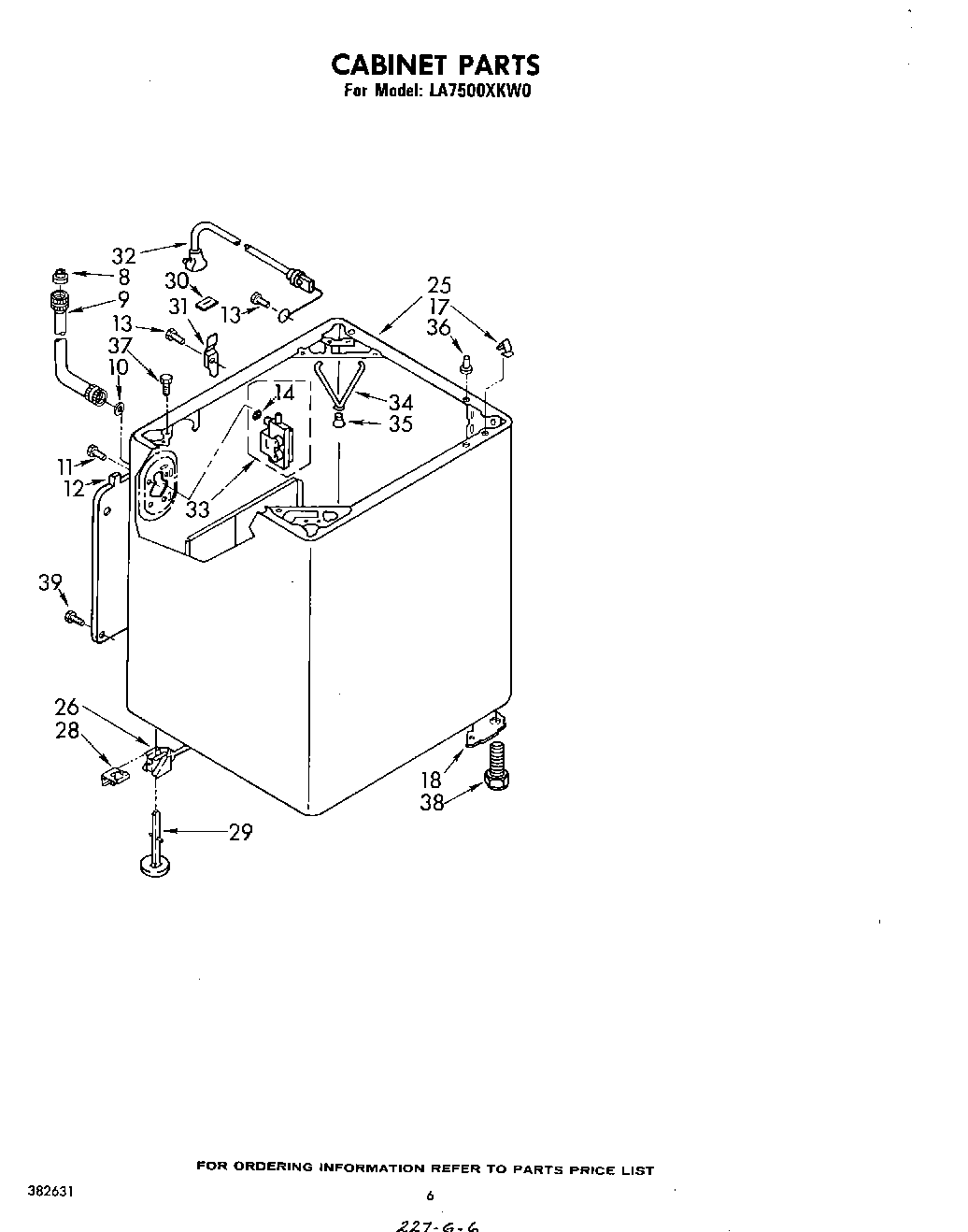

LA7500XKW0 04 – CABINET

LA7500XKW0 04 – CABINET

Written by

in

LA7500XKW0 04 – CABINET

Products

PositionProduct
8285452A Whirlpool Hose Seal and Screen
9WP89503 Whirlpool Washer Fill Hose
10WP16123 Whirlpool Washer
11WP3351614 Whirlpool Screw
12Panel, Rear
13SCREW
14WP96160 Whirlpool Washer Inlet Valve Screen
17WP18776 Whirlpool Lock
18Plate, Gusset
25Cabinet (White)
25Cabinet (Almond)
25Cabinet (Golden Harvest)
26WP359364 Whirlpool Clip
28Link, Leveling
29WP358594 Whirlpool Leveling Feet
3018849 Whirlpool Pad
31Hinge, L.H.
31Hinge, R.H.
32Cord, Power (60 Hz.)
33Valve, Mixing (Alt.)
33Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
34Spring, Snubber
35Pad, Snubber
36Locator, Top
38WP367594 Whirlpool Leveling Feet
