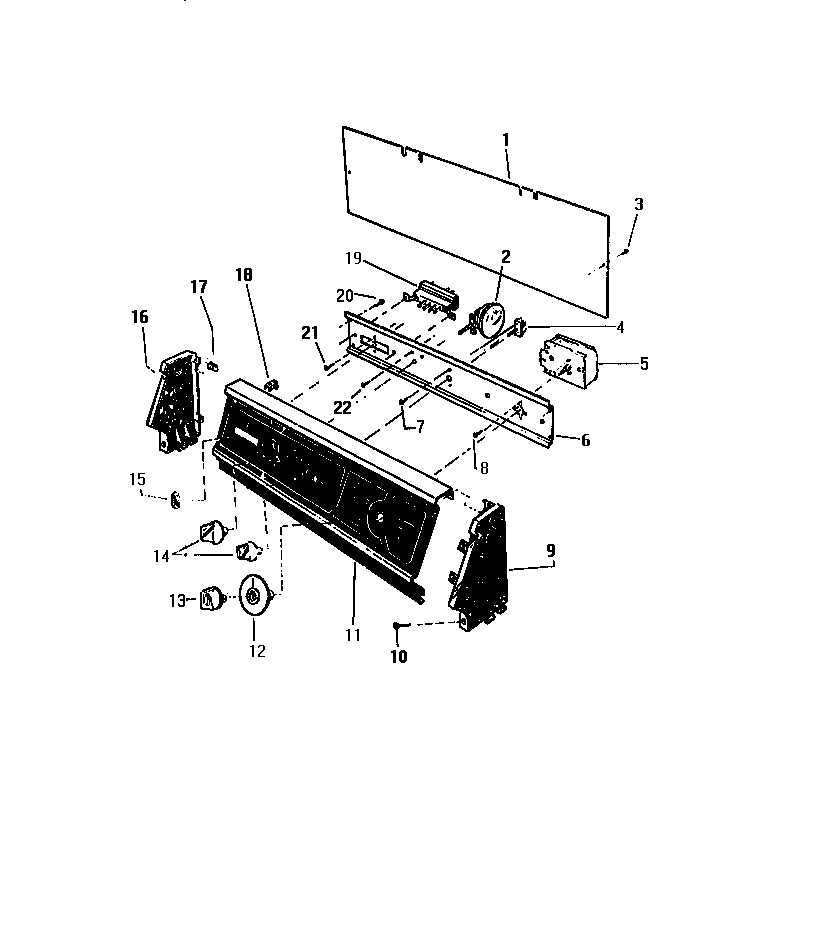

LA750EXD3 03 – CONSOLE & CONTROLS

Products

Position	Product
1	WCI Q616741
2	WCI Q633731
3	WCI Q405802
4	WCI Q617723
5	WCI Q632591
6	WCI Q616712
7	SCREW (2)
9	WCI Q616732
10	WCI Q504533
11	WCI Q616961
12	WCI Q621221
13	WCI Q621212
14	KNOB TIMER
15	WCI Q148992
16	WCI Q616731
17	SPEEDNUT (8)
18	WCI Q504801
19	SWITCH/ PUSHBUTTON
21	WCI Q503033
22	SCREW (4)
