LA750EXV3 04 – TOP PANEL

LA750EXV3 04 – TOP PANEL

Written by

in

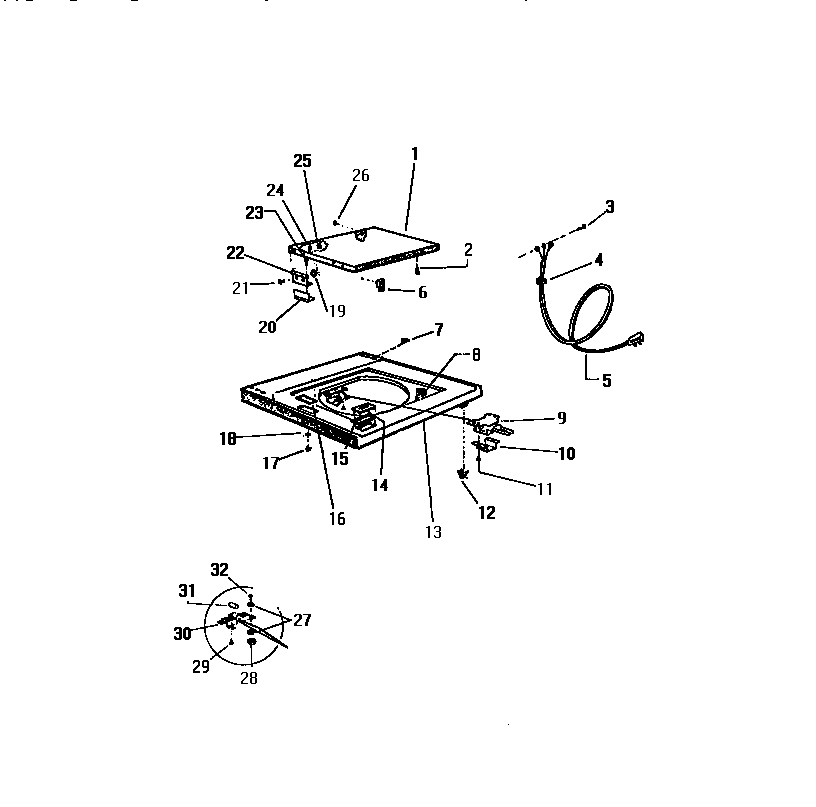

LA750EXV3 04 – TOP PANEL

Products

Position	Product
1	WCI Q632829
2	WCI Q13435
4	WCI Q63137
5	CORD, SERVICE
6	WCI Q143172
7	WCI Q503065
8	DISPENSER
9	WCI Q165346
10	SHIELD, LID LOCK
11	SCREW (4)
12	SPRING CATCH
13	WCI Q632869
14	WCI Q182992
15	WCI Q17972
16	WCI Q150473
19	WCI Q409309
20	WCI Q93739
22	HINGE (2 REQ.)
23	SCREW (2)
24	SPACER
25	NUT (2)
26	WCI Q501589
27	WCI Q409203
28	WCI Q501082
29	WCI Q503241
30	WCI Q150481
31	WCI Q150472
32	WCI Q435055
