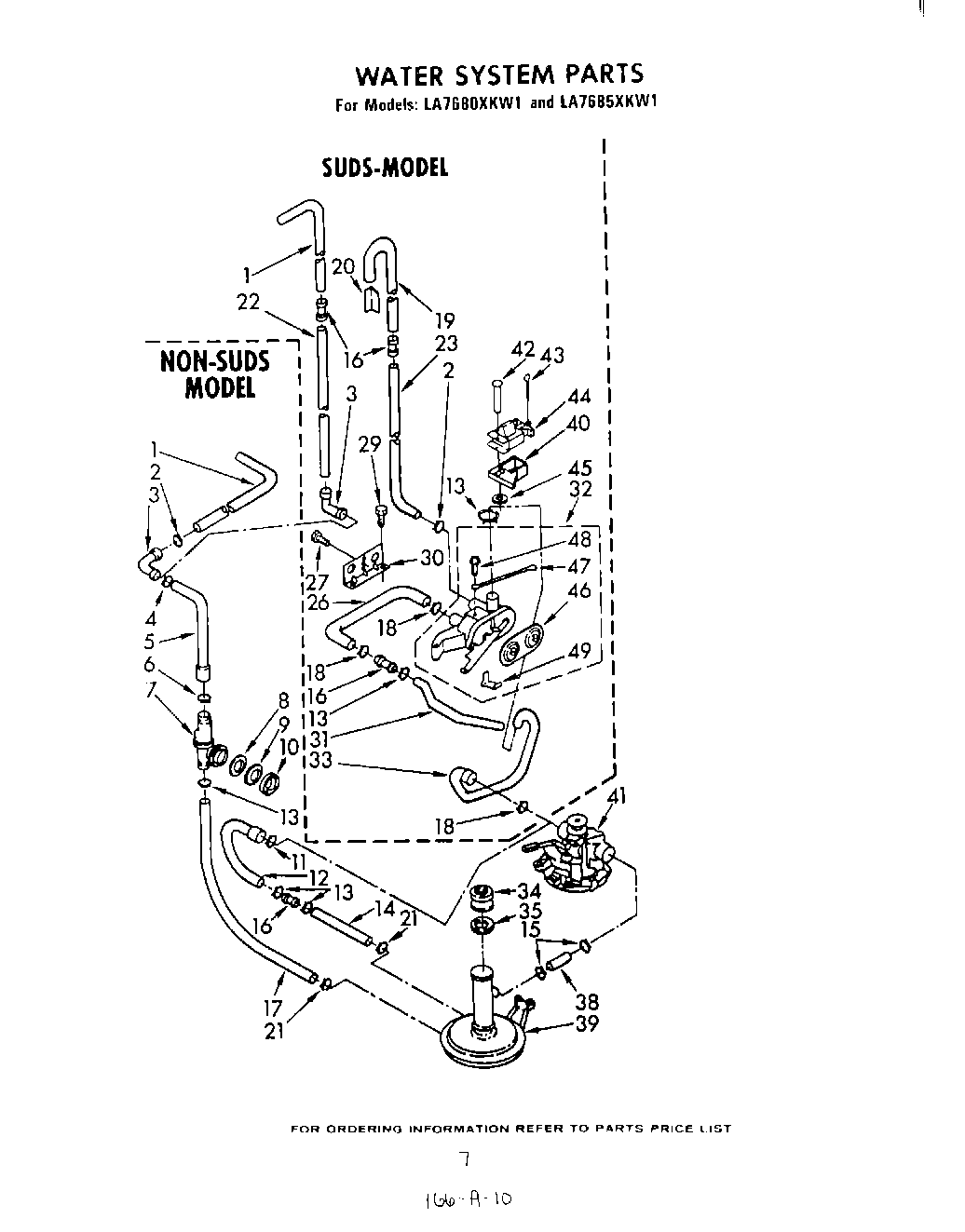

LA7680XKW1 06 – WATER SYSTEM

Products

Position	Product
1	Hose, Gooseneck
3	Connector, Hose
5	Hose, Side Check To Drain (Non-Suds & Suds)
6	WP356138 Whirlpool Hose Clamp
7	Valve, Side Check
8	Washer, Rubber
9	Washer, Fiber
10	Nut, Spanner
11	WP616099 Whirlpool Clamp
12	Hose
13	Clamp, Hose (Alternate)
14	Hose, Pump To Filter
15	WP285655 Whirlpool Hose Clamp
16	WP16272 Whirlpool Hose Coupling
17	Hose, Side Check To Filter
19	Hose, Gooseneck
20	Strainer, Hose
22	Hose, Outlet
23	96746 Whirlpool Drain Hose Assembly
26	Hose, Two-Way Valve To Connector
27	Screw & Washer
29	SCREW
30	Bracket
31	Hose, Filter To Cabinet
32	Two-Way Valve
33	Hose, Pump To Two-Way Valve
34	Hose, Tub Outlet
35	Clip, Hose
38	Hose
39	Manifold & Filter Assembly
40	Shield, Two-Way Valve
41	350365 Whirlpool Dryer Washer Water Pump, 2-Port
42	Rivet
43	Pin, Cotter (1/8 x 3/4)
44	Solenoid
45	WP90296 Whirlpool Clip
46	Diaphragm, Valve
47	Strap, Ground
48	WP90767 Whirlpool Screw
49	Clip, Retainer
