LA7680XKW2 02 – TOP AND CONSOLE

LA7680XKW2 02 – TOP AND CONSOLE

Written by

in

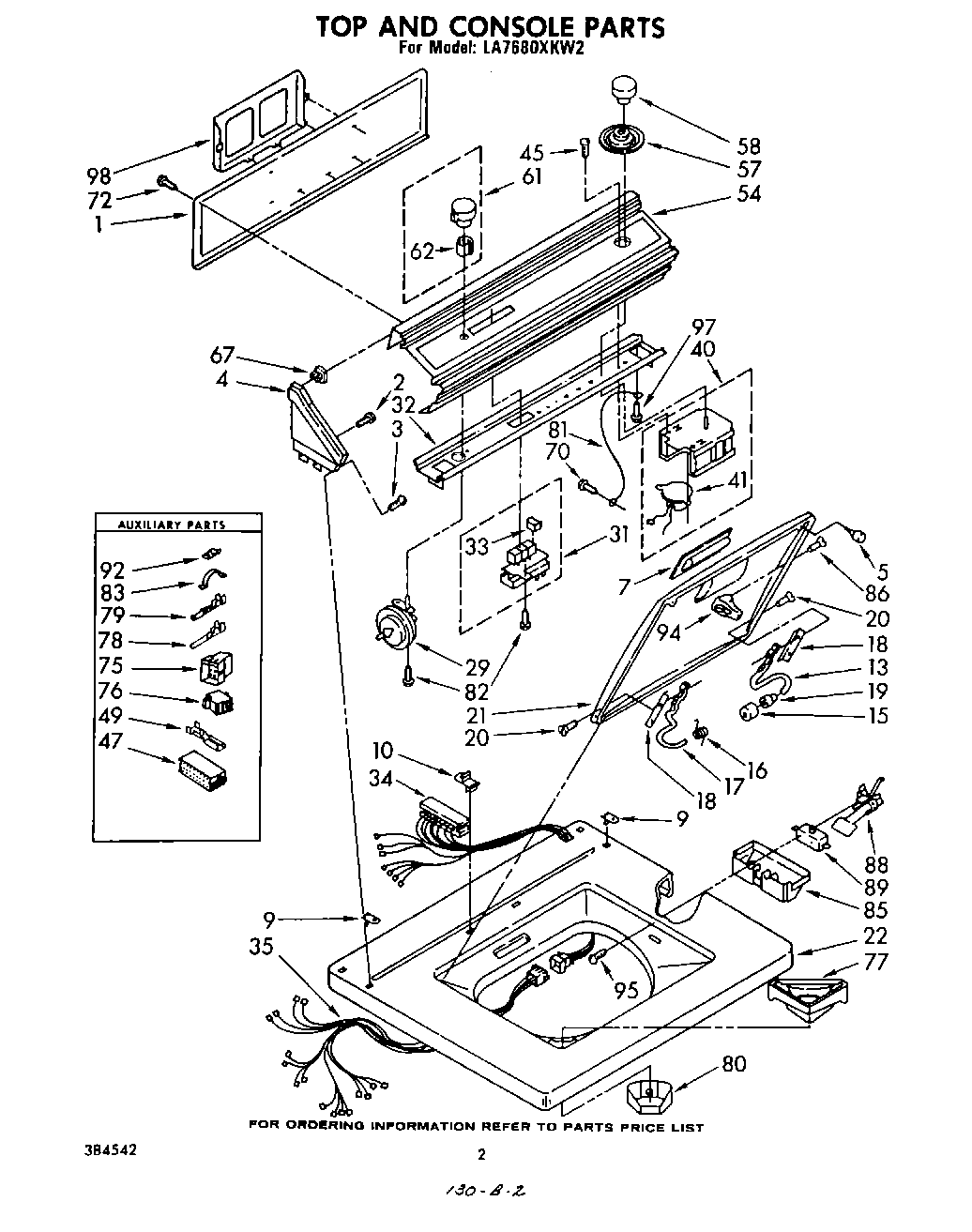

LA7680XKW2 02 – TOP AND CONSOLE

Products

PositionProduct
Wire, 25` Roll (Red 12 Ga.)
1Panel, Rear Console
2WPL 355326
3Screw, 8-18 x 1 (2)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End L.H. (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
5WP9724509 Whirlpool Bumper
7Handle, Lid (Golden Harvest)
7Handle, Lid (White)
7Handle, Lid (Almond)
9Nut, Push-In (2)
10Stop, Push-In Top
13WP91770 Whirlpool Hinge
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (Golden Harvest)
21Lid (Almond)
21Lid (White)
22Top (White)
22Top (Almond)
22Top (Golden Harvest)
29Switch, Water Level
31Switch, Water Temperature
32Bracket, Control
33WPL 301008
34WPL 359325
35Harness, Cabinet
40Timer Assembly (60 Hz.) (C.C.A.)
40Timer Assembly (60 Hz.) (Mallory)
41Motor, Timer 60 Hz.
41Use W/C.C.A. Timer
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
47Timer, Block Disconnect (White)
49Terminal, Female
54Panel, Control (Non-Suds)
57Dial, Timer
58WPL 359773
61WPL 690308
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
70WP3351614 Whirlpool Screw
72W11693756 Whirlpool Screw Assembly
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
77WPL 352821
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
80WPL 352827
813184020 Whirlpool Oven Wire
82WP90767 Whirlpool Screw
838528351 Whirlpool Clip
85WP359231 Whirlpool Shield
86Screw & Washer
88Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
92WP90016 Whirlpool Clip
94Strike, Lid Switch
95Screw & Washer, Lid Switch (2)
97SCREW
98Rack, Literature
