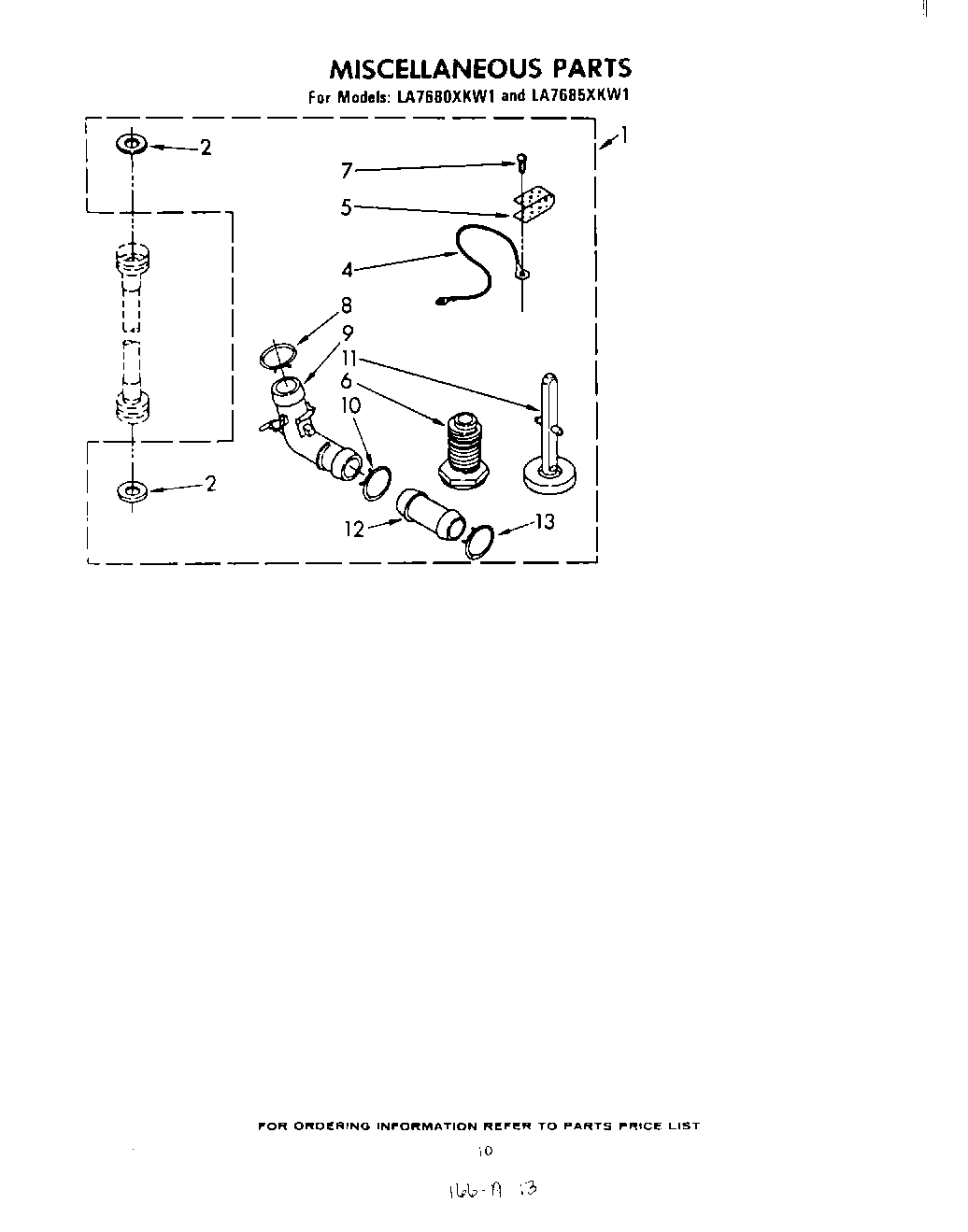

LA7685XKW1 09 – MISCELLANEOUS , LITERATURE AND OPTIONALadmin2025-04-26T12:42:05+00:00LA7685XKW1 09 – MISCELLANEOUS , LITERATURE AND OPTIONAL
Products
| Position | Product |
|---|
| 1 | Miscellaneous Parts Bag (Suds) |
| 1 | Miscellaneous Parts Bag |
| 2 | WP16123 Whirlpool Washer |
| 4 | WPL 364089 |
| 5 | Strap, Ground |
| 6 | WP367594 Whirlpool Leveling Feet |
| 7 | Screw, Ground (10-24 x 1) |
| 8 | WP356138 Whirlpool Hose Clamp |
| 9 | Connector, Hose |
| 10 | WP285655 Whirlpool Hose Clamp |
| 11 | WP358594 Whirlpool Leveling Feet |
| 12 | WP16272 Whirlpool Hose Coupling |
| 13 | Sheet, Installation Instructions |
| 13 | Installation Instructions (Suds) |
| 13 | Guide, Laundry |
| 13 | Label, Energy Guide (Suds) |
| 13 | Label, Energy Guide (Non Suds) |
| 13 | List, Repair Parts |
| 13 | Care & Service Guide |
| 13 | WPL 799351 |
| 13 | 350938 Whirlpool Spray Gun |
| 13 | 350956 Whirlpool Spray Assembly |
| 13 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 13 | 799344 Whirlpool Refrigerator Paint |
| 13 | WP72107 Whirlpool Touchup |
| 13 | Leveler (Thinner) |
| 13 | Almond (Uncut) |
| 13 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 13 | Golden Harvest |
| 13 | Golden Harvest (Uncut) |
| 13 | 350930 Whirlpool White Spray Paint |
| 13 | Instructions, Operating |
