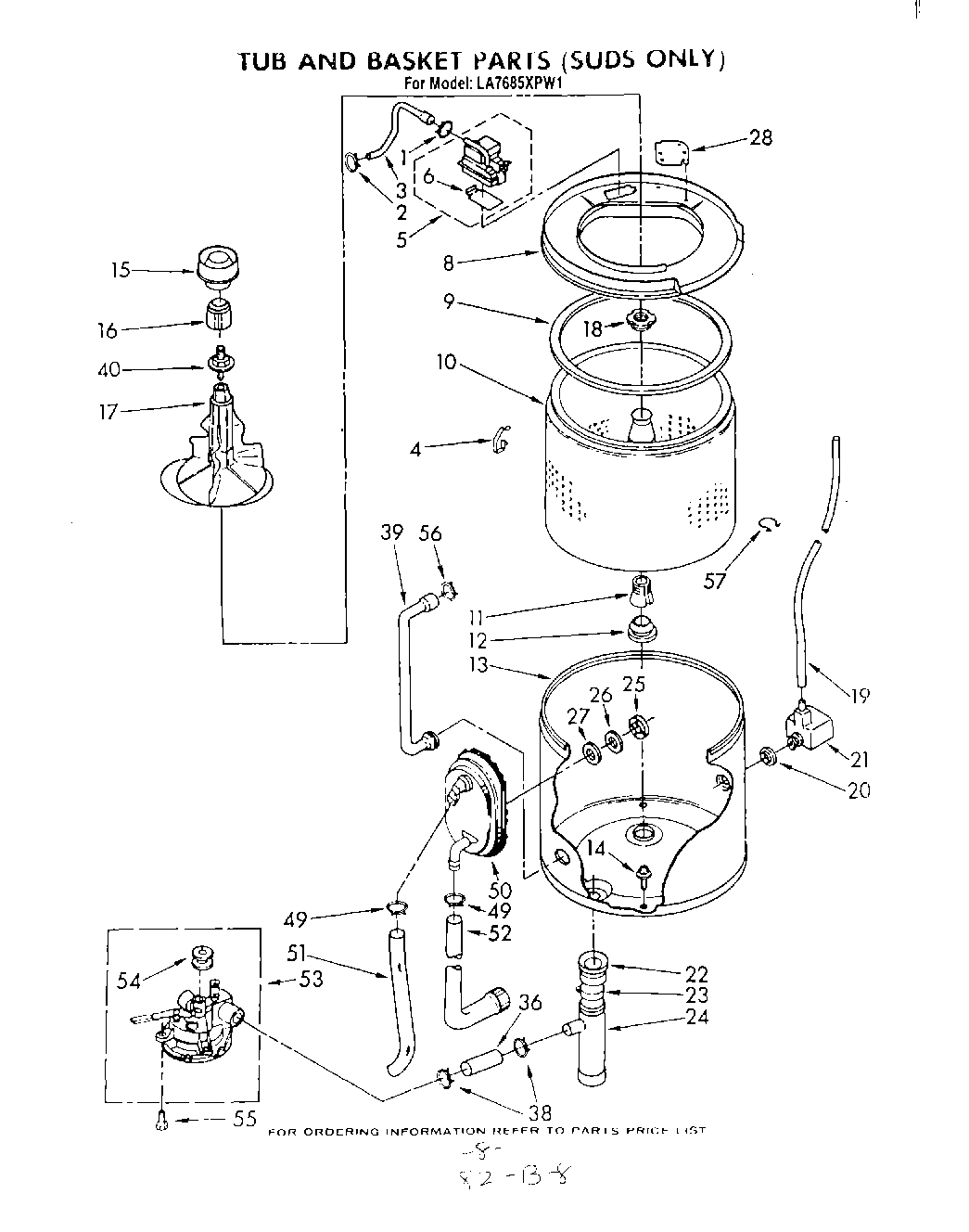

LA7685XPW1 06 – TUB AND BASKET (SUDS ONLY)

LA7685XPW1 06 – TUB AND BASKET (SUDS ONLY)

Written by

in

LA7685XPW1 06 – TUB AND BASKET (SUDS ONLY)

Products

PositionProduct
3Hose, Water Inlet
4Clip, Tub Ring (4)
5Inlet, Water
6Flapper
8Ring & Filter, Tub (Includes Illus. 22)
9Seal, Tub Ring
10Basket
11WP389140 Whirlpool Drive Block or Bell
12W10814296 Whirlpool Washer Center Post Seal Gasket
13Tub
14Screw & Washer, Tub (4)
15Dispenser, Rinse
16Cap, Agitator
17Agitator
18WP21366 Whirlpool Spanner Nut
19WP353244 Whirlpool Hose
20Seal
21Air Dome Assembly
22Hose, Tub Outlet
23Clip, Hose
24Manifold
25Nut, Spanner
26Washer, Fiber
27Washer, Rubber
28Plate, Snubber
36Hose
38WP285655 Whirlpool Hose Clamp
39Hose, Bleach Dispenser
40Stud, Agitator Shaft
49Clamp, Hose (Alternate)
50Filter
51Hose, Filter Drain
52Hose, Filter Drain
53350365 Whirlpool Dryer Washer Water Pump, 2-Port
54Pulley
55386011 Whirlpool Screw
56WP596669 Whirlpool Hose Clamp
57Clip, Harness (3)
