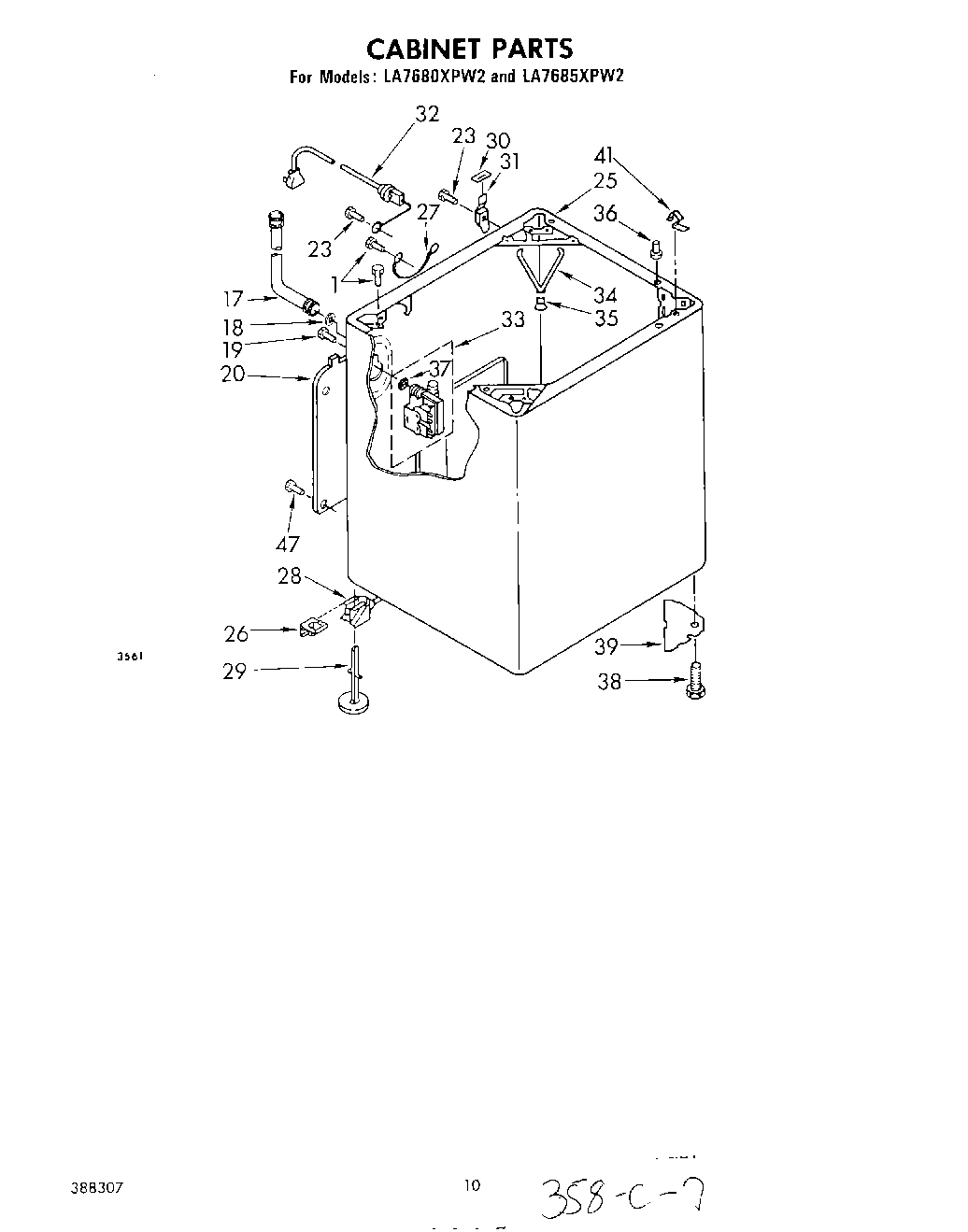

LA7685XPW2 08 – CABINET

Products

Position	Product
17	WP89503 Whirlpool Washer Fill Hose
18	WP16123 Whirlpool Washer
19	WP3390631 Whirlpool Screw
20	Panel, Rear (Suds)
20	Panel, Rear
23	SCREW
25	Cabinet (Platinum)
25	Cabinet (Toast)
25	Cabinet (Golden Harvest)
25	Cabinet (Almond)
25	Cabinet
26	WP359364 Whirlpool Clip
27	WPL 364089
28	Link, Leveling
29	WP358594 Whirlpool Leveling Feet
30	18849 Whirlpool Pad
31	Hinge, L.H.
31	Hinge, R.H.
32	Cord, Power (60 Hz.)
33	Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
33	Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
33	Valve, Mixing (Alt.)
34	Spring, Snubber
35	Pad, Snubber
36	Locator, Top
37	WP96160 Whirlpool Washer Inlet Valve Screen
38	WP367594 Whirlpool Leveling Feet
39	Plate, Gusset
41	WP18776 Whirlpool Lock
