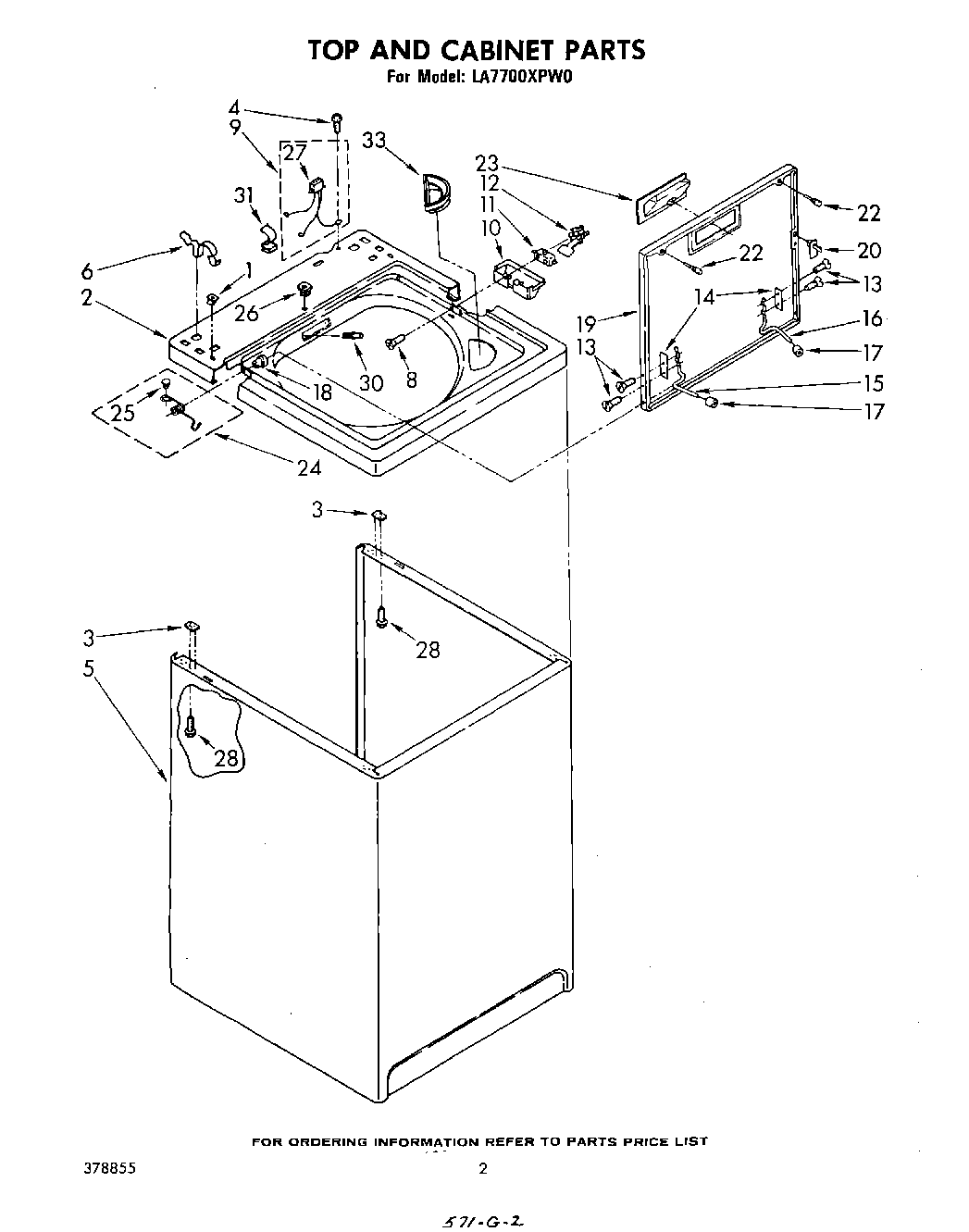

LA7700XPW0 02 – CABINET AND TOP , LITERATURE AND OP

Products

Position	Product
1	Nut, Push-In (2)
2	Top (Almond)
2	Top (White)
2	Top (Golden Harvest)
2	Top (Toast)
2	Top (Platinum)
3	WP62750 Whirlpool Spacer
5	Cabinet (Toast)
5	Cabinet (Platinum)
5	Cabinet (Golden Harvest)
5	Cabinet (Almond)
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
8	Screw & Washer, Lid Switch (2)
9	Harness, Lid Switch
10	WP359231 Whirlpool Shield
11	W10820036 Whirlpool Door Switch Kit
12	Actuator, Lid Switch
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Golden Harvest)
19	Lid (Platinum)
19	Lid (Toast)
19	Lid (Almond)
19	Lid (White)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
23	Handle, Lid (White)
23	Handle, Lid (Almond)
23	Handle, Lid (Toast)
23	Handle, Lid (Golden Harvest)
23	Handle, Lid (Platinum)
23	Handle, Lid
24	Spring & Button, Lid ((L.H.))
24	Spring & Button, Lid ((R.H.))
25	Plug, Button
26	Stop, Push-In Top
27	Plug, Terminal (3-Way)
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
33	Enamal, Toast (1 Qt. Uncut)
33	Dryer
33	Almond (Uncut)
33	Leveler (Thinner)
33	350930 Whirlpool White Spray Paint
33	WP72107 Whirlpool Touchup
33	799344 Whirlpool Refrigerator Paint
33	72017 Whirlpool Appliance Touch-Up Paint White
33	350956 Whirlpool Spray Assembly
33	350938 Whirlpool Spray Gun
33	WPL LIT386201
33	WPL LIT378855
33	WPL LIT386898
33	350572 Whirlpool Oil Transmission 15 Oz
33	WPL LIT677967
33	WPL LIT383979
33	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
33	Paint, Spray (13 Oz.) (Platinum)
33	WPL LIT385238
33	Platinum (Uncut)
33	WPL 261880
33	Toast
33	Golden Harvest (Uncut)
33	WP3362952 Whirlpool Bezel
33	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
33	WPL 72112
33	72113 Whirlpool Touch-Up Paint
33	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
33	WP285195 Whirlpool Sealer Assembly
