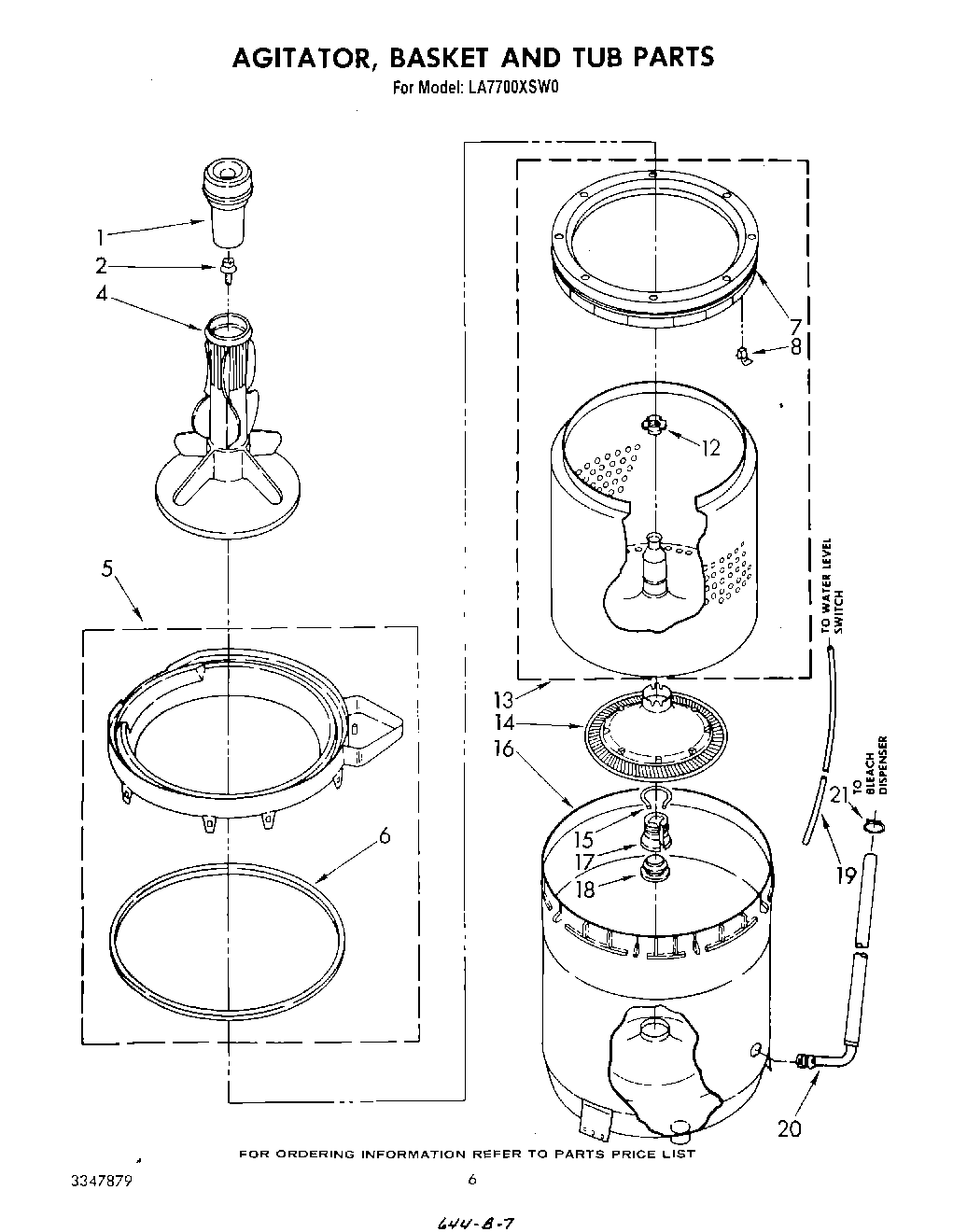

LA7700XSW0 04 – AGITATOR, BASKET AND TUB

LA7700XSW0 04 – AGITATOR, BASKET AND TUB

Written by

in

LA7700XSW0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
4WP63235 Whirlpool Agitator Assembly
5Tub Ring & Gasket
6WP3359586 Whirlpool Tub Seal
7WP8519815 Whirlpool Washer Balance Ring Clip
8WP3956205 Whirlpool Balance Ring
12WP21366 Whirlpool Spanner Nut
13Basket & Balance Ring
14285868 Whirlpool Washer Filter Plug Kit
15Lock, Filter
16Tub
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20Hose, Bleach
21WP596669 Whirlpool Hose Clamp
