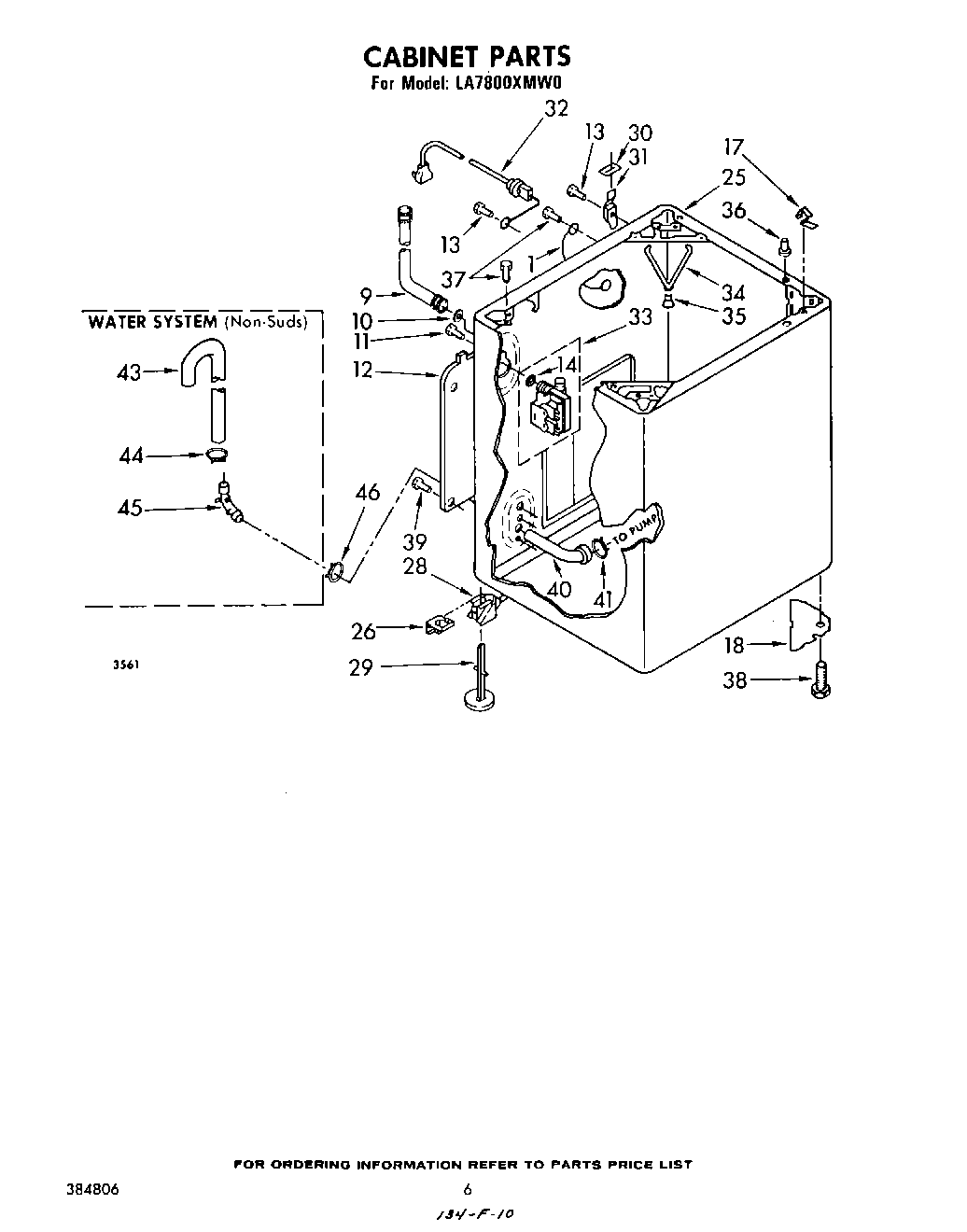

LA7800XMW0 05 – CABINET

Products

Position	Product
1	WPL 364089
9	WP89503 Whirlpool Washer Fill Hose
10	WP16123 Whirlpool Washer
11	WP3351614 Whirlpool Screw
12	Panel, Rear
13	SCREW
14	WP96160 Whirlpool Washer Inlet Valve Screen
17	WP18776 Whirlpool Lock
18	Plate, Gusset
25	Cabinet (Toast)
25	Cabinet (Golden Harvest)
25	Cabinet (New Avocado)
25	Cabinet (Almond)
25	Cabinet (Coffee)
25	Cabinet (Platinum)
25	Cabinet
26	WP359364 Whirlpool Clip
28	Link, Leveling
29	WP358594 Whirlpool Leveling Feet
30	18849 Whirlpool Pad
31	Hinge, R.H.
31	Hinge, L.H.
32	Cord, Power (60 Hz.)
33	Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
33	Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
33	Valve, Mixing (Alt.)
34	Spring, Snubber
35	Pad, Snubber
36	Locator, Top
38	WP367594 Whirlpool Leveling Feet
40	Hose, Pump Discharge
41	WP285655 Whirlpool Hose Clamp
43	WP96743 Whirlpool Hose
44	WP356138 Whirlpool Hose Clamp
45	Connector, Hose
