LA7800XPW1 04 – PUMP – Aparts

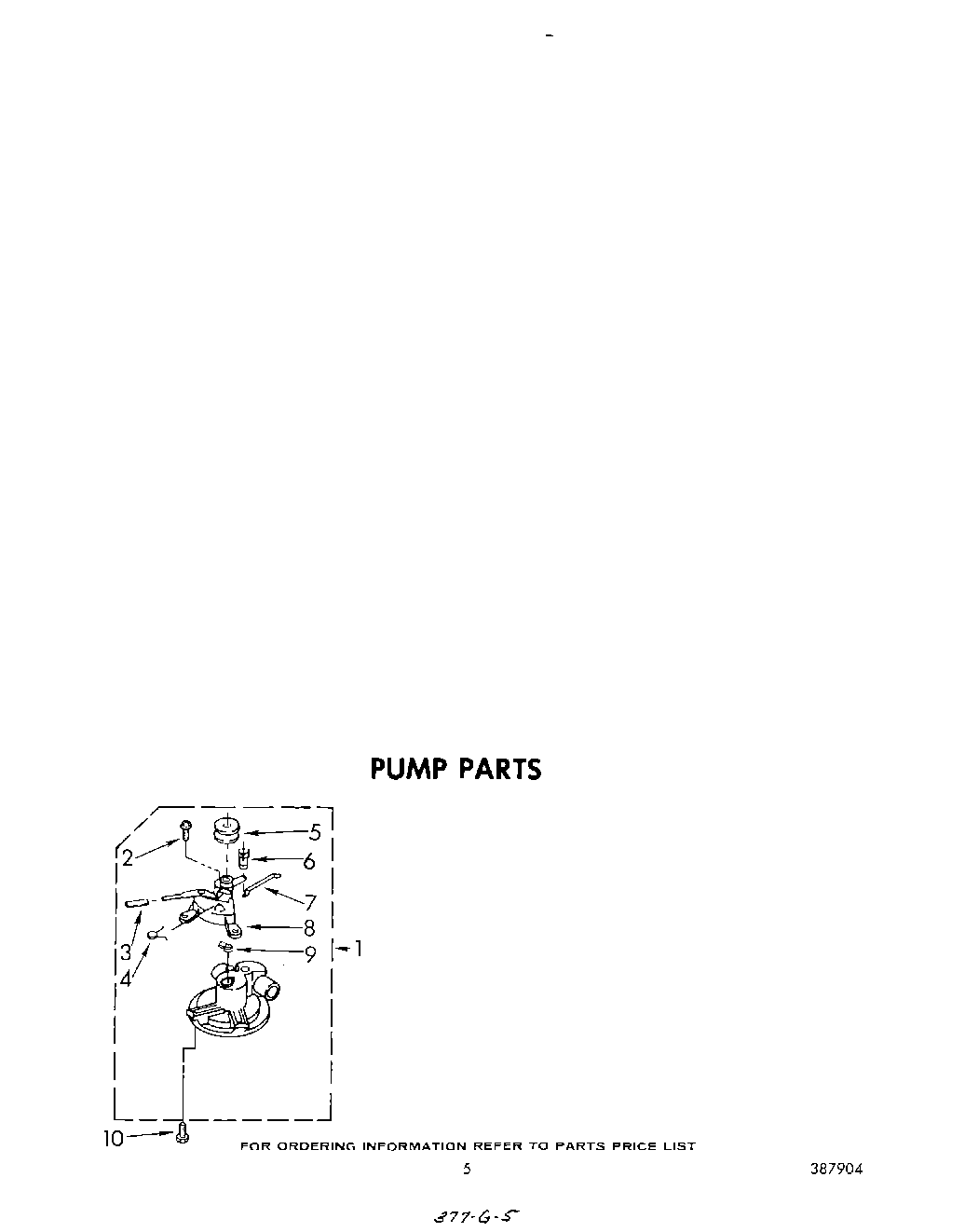

LA7800XPW1 04 – PUMP

Products

Position	Product
1	Pump Assembly
2	WP273556 Whirlpool Screw
3	Sleeve
4	Spring, Toggle
5	Pulley
6	Lever, Valve
7	Rod, Connecting
8	Bearing Block Assembly
9	Wick, Oil
10	386011 Whirlpool Screw
