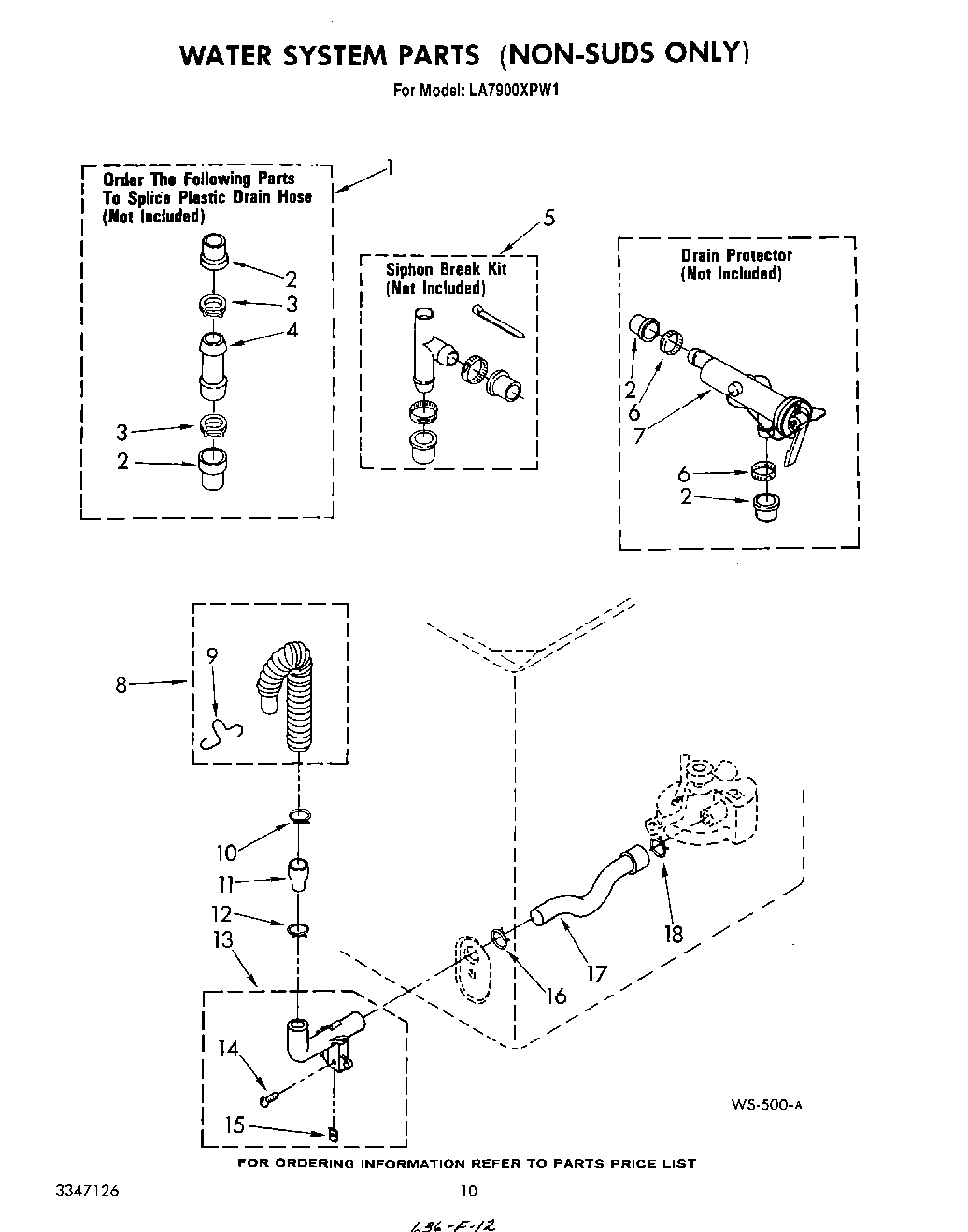

LA7900XPW1 09 – WATER SYSTEM

Products

Position	Product
1	285442 Whirlpool Coupling
2	285321 Whirlpool Sleeve
4	WP16272 Whirlpool Hose Coupling
5	285320 Whirlpool Washer Siphon Break Kit
7	Drain Protector (Not Included)
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	WPL 357247
10	WP616099 Whirlpool Clamp
11	WP384496 Whirlpool Hose Coupling
13	Connector, 90 o
14	Screw, Connector Mounting (10 x 3/4)
15	Clip
16	WP356138 Whirlpool Hose Clamp
17	Hose, Pump Discharge
18	WP285655 Whirlpool Hose Clamp
