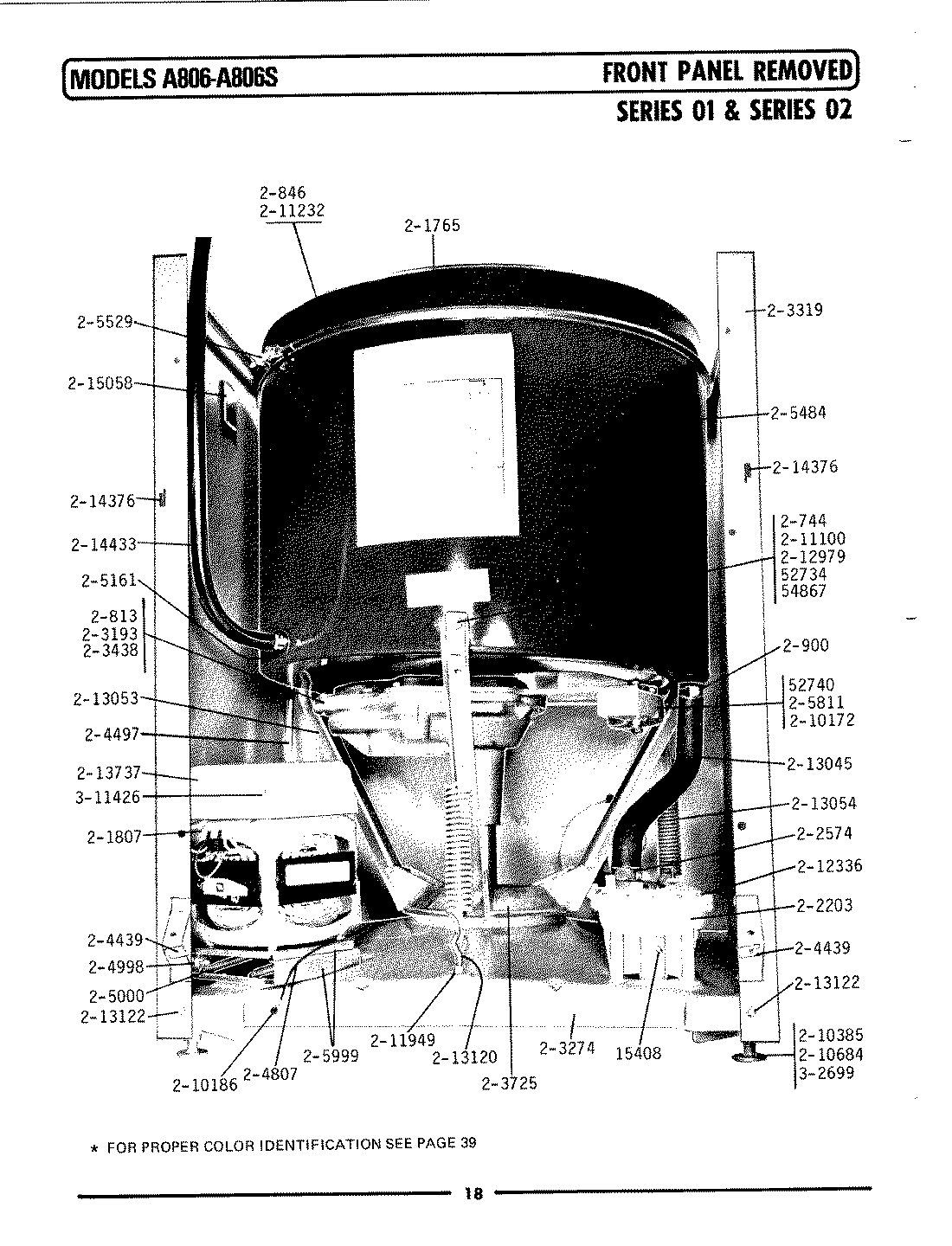

LA806 10 – PANEL (FRONT) (SERIES 01)

Products

Position	Product
1	MAY Y015408
2	MAY Y052734
3	WP62739 Whirlpool Nut
4	MAY Y054867
5	W10175939 Whirlpool Bolt Assembly
6	MAY 200813
8	MAY 200900
9	MAY 201765
10	MAY 201807
11	MAY 202203
12	WP285655 Whirlpool Hose Clamp
13	MAY 203193
14	MAY 203274
15	MAY 203319
16	PART NOT USED
17	MAY 203725
18	SCREW & FSTNER ASSY (FT. PNL)
19	MAY 204497
20	MAY 204807
21	205000 Whirlpool Motor Spring and Guide Kit
23	WP489503 Whirlpool Refrigerator Clamp
24	PART NOT USED
26	MAY 205811
27	MAY 205999
28	MAY 210172
29	MAY 210186
30	WP210385 Whirlpool Lock Nut
31	WP210684 Whirlpool Dishwasher Leveling Leg Pad
32	MAY 211100
33	WP211232 Whirlpool Seal
34	WP211949 Whirlpool Nut
35	MAY 212336
36	MAY 212979
37	WP213045 Whirlpool Dishwasher Tub to Pump Hose
38	PART NOT USED
39	MAY 213054
40	MAY 213120
41	WP27001200 Whirlpool Screw
42	MAY 213737
43	MAY 214376
44	WP214433 Whirlpool Inlet Tube
45	MAY 215058
46	LEG, ADJUSTABLE (W/NUT)---S
47	WP3400029 Whirlpool Dishwasher Nut
