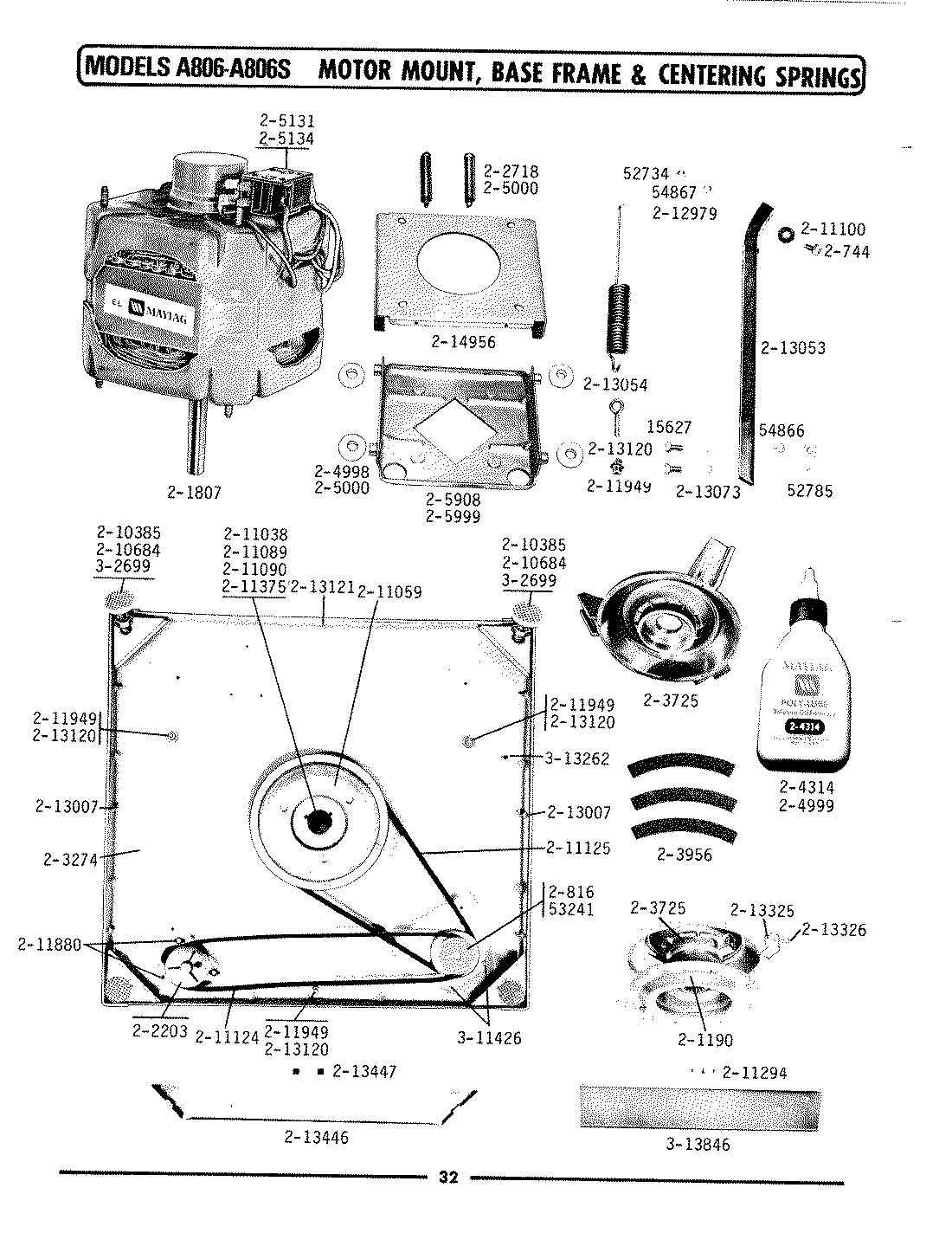

LA806S 08 – MOTOR MOUNT, BASE FRAME & CENTERING SPRS

Products

Position	Product
2	MAY Y052734
3	MAY Y052785
4	MAY Y053241
5	MAY Y054866
6	MAY Y054867
7	W10175939 Whirlpool Bolt Assembly
8	MAY 200816
9	MAY 201190
10	MAY 201807
11	MAY 202203
12	MAY 202677
13	202718 Whirlpool Tension Spring
14	MAY 203274
15	MAY 203725
16	203956 Whirlpool Damper Pads 3 Pack with Poly
17	MAY 204314
18	205000 Whirlpool Motor Spring and Guide Kit
19	WP99003172 Whirlpool Silicone L
21	MAY 205131
22	MAY 205134
23	MAY 205908
24	MAY 205999
25	MAY 210186
26	WP210385 Whirlpool Lock Nut
27	MAY 210587
28	WP210684 Whirlpool Dishwasher Leveling Leg Pad
29	MAY 211038
30	MAY 211059
31	WP211089 Whirlpool Lug Stop
32	WP22003555 Whirlpool Washer ST
33	MAY 211100
34	12112425 Whirlpool Washer Pump and Drive Belt Set
36	WP90767 Whirlpool Screw
37	WP912618 Whirlpool Dishwasher Screw
38	WPY014874 Whirlpool Screw
39	WP211949 Whirlpool Nut
40	MAY 212979
41	213007 Whirlpool Screw #12
42	PART NOT USED
43	MAY 213054
44	MAY 213073
45	MAY 213120
46	WPW10346892 Whirlpool Screw
47	WP213325 Whirlpool Clip
48	MAY 213326
49	MAY 213446
50	MAY 213447
51	MAY 213846
52	MAY 214956
53	LEG, ADJUSTABLE (W/NUT)---S
54	WP3400029 Whirlpool Dishwasher Nut
55	MAY Y313262
