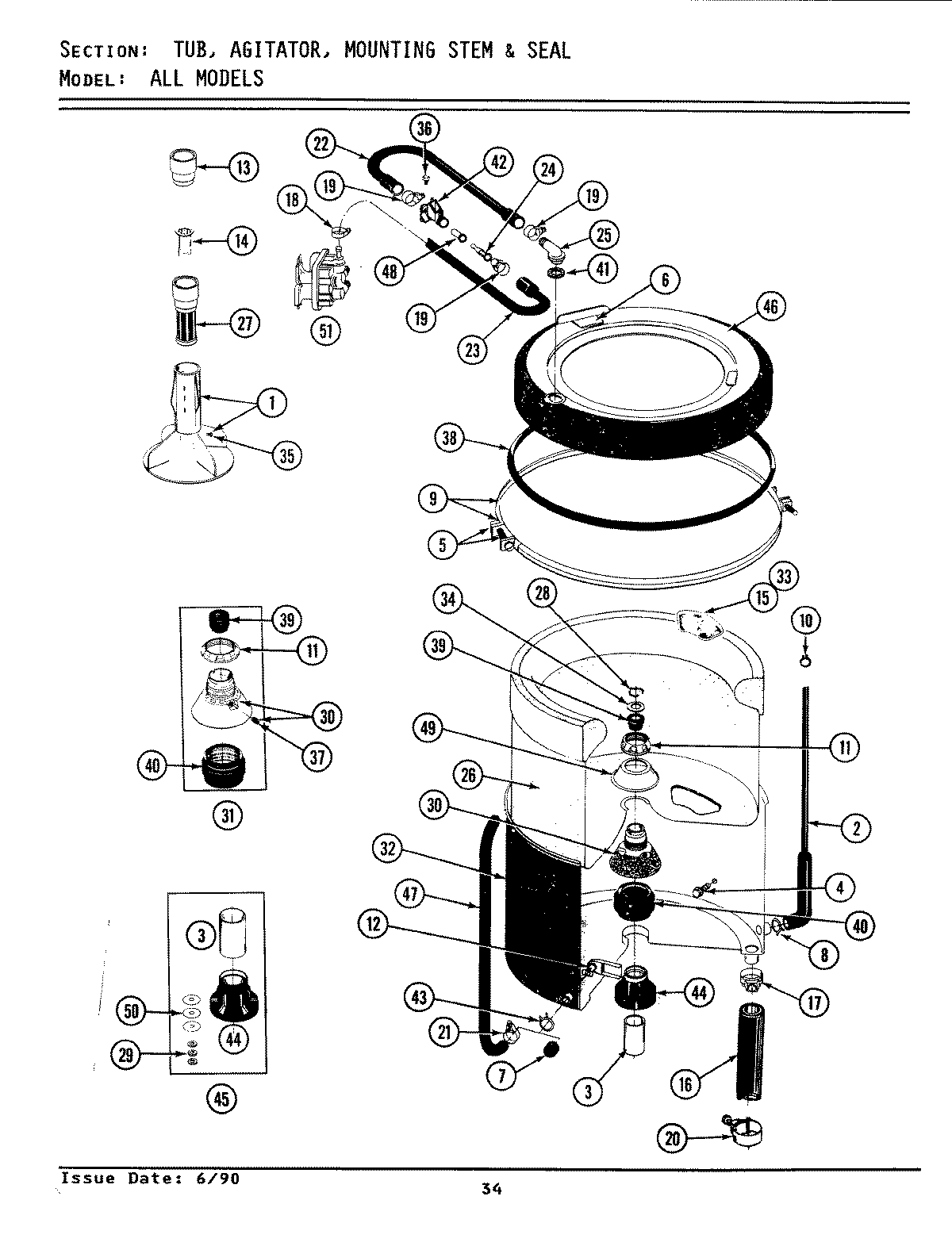

LA8100 07 – TUB, AGITATOR, MOUNTING STEM & SEAL

Products

Position	Product
1	MAY 207538
2	MAY 212942
3	MAY 211130
4	W10175938 Whirlpool Bolt
4	W10175939 Whirlpool Bolt Assembly
6	MAY 215232
11	WP6-2110472 Whirlpool Nut Clamp
12	MAY 214434
14	MAY 215733
16	WPY212989 Whirlpool Outer Hose
17	MAY 200900
18	WP596669 Whirlpool Hose Clamp
20	WP285655 Whirlpool Hose Clamp
21	WP489503 Whirlpool Refrigerator Clamp
22	WPY215234 Whirlpool Hose
23	WP213013 Whirlpool Injector Hose
24	WP213015 Whirlpool Nozzle Injector Tube
25	MAY 215235
26	MAY 201523
26	MAY 207830
27	WPY207427 Whirlpool Lint Filter
28	MAY Y015667
29	MAY Y054867
30	MAY 202521
31	MAY 204012
32	MAY 205486
34	WPY015666 Whirlpool Washer Retainer
35	MAY 206478
36	MAY 312620
37	MAY 211618
38	WP211232 Whirlpool Seal
39	WP6-0A57420 Whirlpool Agitator Seal
40	MAY 201537
41	WP215233 Whirlpool Seal
42	WP215447 Whirlpool Sleeve
44	6-2040130 Whirlpool Washer Tub Bearing Kit
46	MAY 206380
47	MAY 214495
48	WP216201 Whirlpool Rubber Injector Valve
49	MAY 211210
50	MAY 211100
51	205613 Whirlpool Washer Water Inlet Valve
