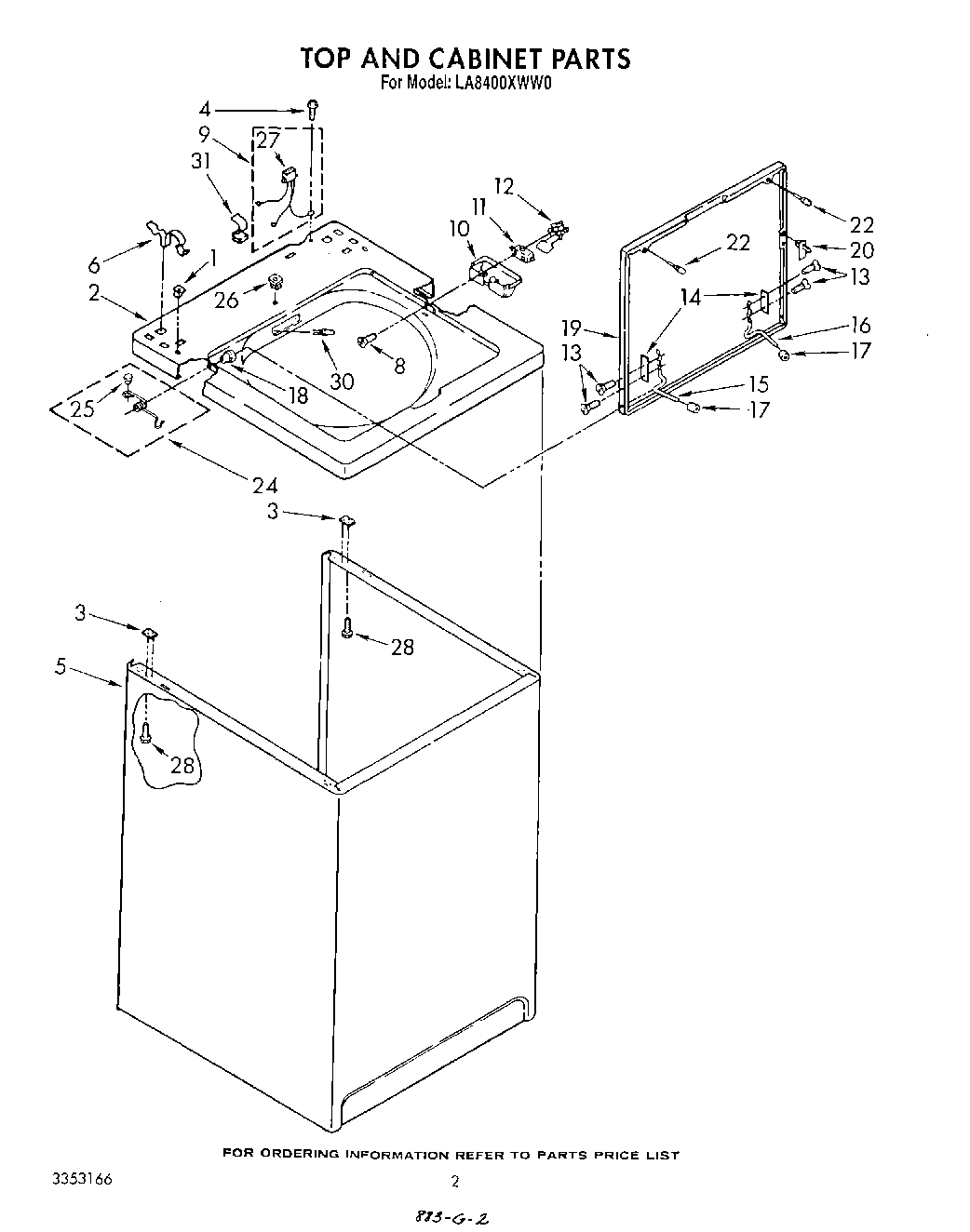

LA8400XWM0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

LA8400XWM0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Written by

in

LA8400XWM0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3351859
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Shipping Kit
WPL 72112
WPL LIT3347019
WPL LIT3351410
WPL LIT3351735
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP285195 Whirlpool Sealer Assembly
WPL LIT3353495
Golden Harvest (Uncut)
Golden Harvest
WPL LIT3353166
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
Toast
350572 Whirlpool Oil Transmission 15 Oz
63580 Whirlpool Washer Fabric Softener Dispenser
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
72017 Whirlpool Appliance Touch-Up Paint White
1Nut, Push-In (2)
2Top (Platinum)
2Top (Toast)
2Top (Almond)
2Top (Golden Harvest)
2Top (White)
3WP62750 Whirlpool Spacer
5Cabinet (Almond)
5Cabinet (Golden Harvest)
5Cabinet (White)
5Cabinet (Toast)
5Cabinet (Platinum)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Toast)
19Lid (Platinum)
19Lid (Almond)
19Lid (White)
19Lid (Golden Harvest)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
24Spring & Button, Lid
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
