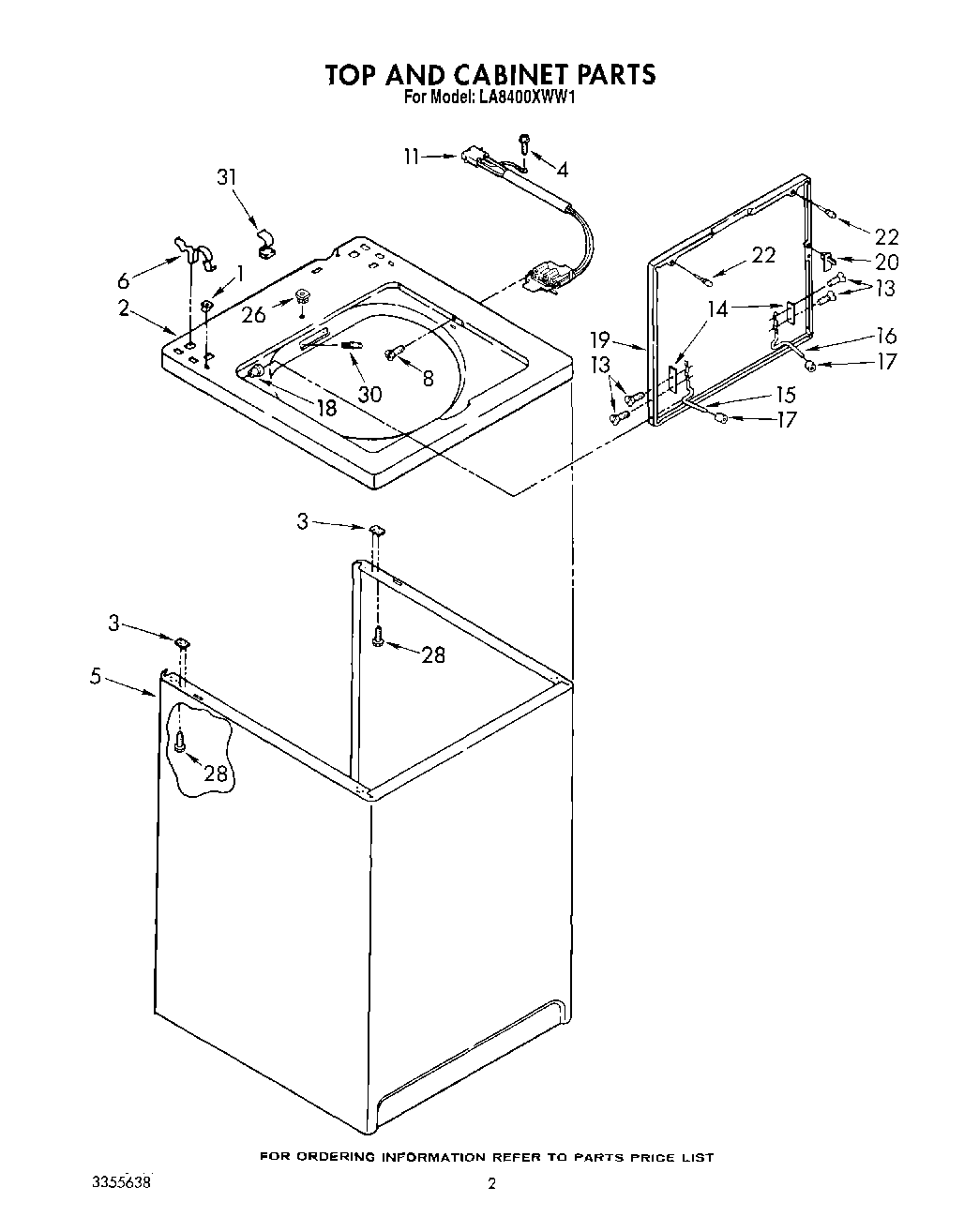

LA8400XWW1 02 – TOP CABINET, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3356124
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Shipping Kit
	WPL 72112
	WPL 89121
	WPL LIT3347019
	WPL LIT3351410
	WPL LIT3351736
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	WPL LIT3353495
	WPL 63763
	WPL LIT3355638
	Golden Harvest (Uncut)
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	Almond (Uncut)
	Golden Harvest
	285320 Whirlpool Washer Siphon Break Kit
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	63580 Whirlpool Washer Fabric Softener Dispenser
	350930 Whirlpool White Spray Paint
	350572 Whirlpool Oil Transmission 15 Oz
	Drain Protector (Not Included)
	72113 Whirlpool Touch-Up Paint
1	Nut, Push-In (2)
2	Top (White)
2	Top (Almond)
2	Top (Golden Harvest)
2	Top (Platinum)
2	Top (Toast)
3	WP62750 Whirlpool Spacer
5	Cabinet (Almond)
5	Cabinet (White)
5	Cabinet (Toast)
5	Cabinet (Golden Harvest)
5	Cabinet (Platinum)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Toast)
19	Lid (White)
19	Lid (Platinum)
19	Lid (Golden Harvest)
19	Lid (Almond)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
26	Stop, Push-In Top
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
