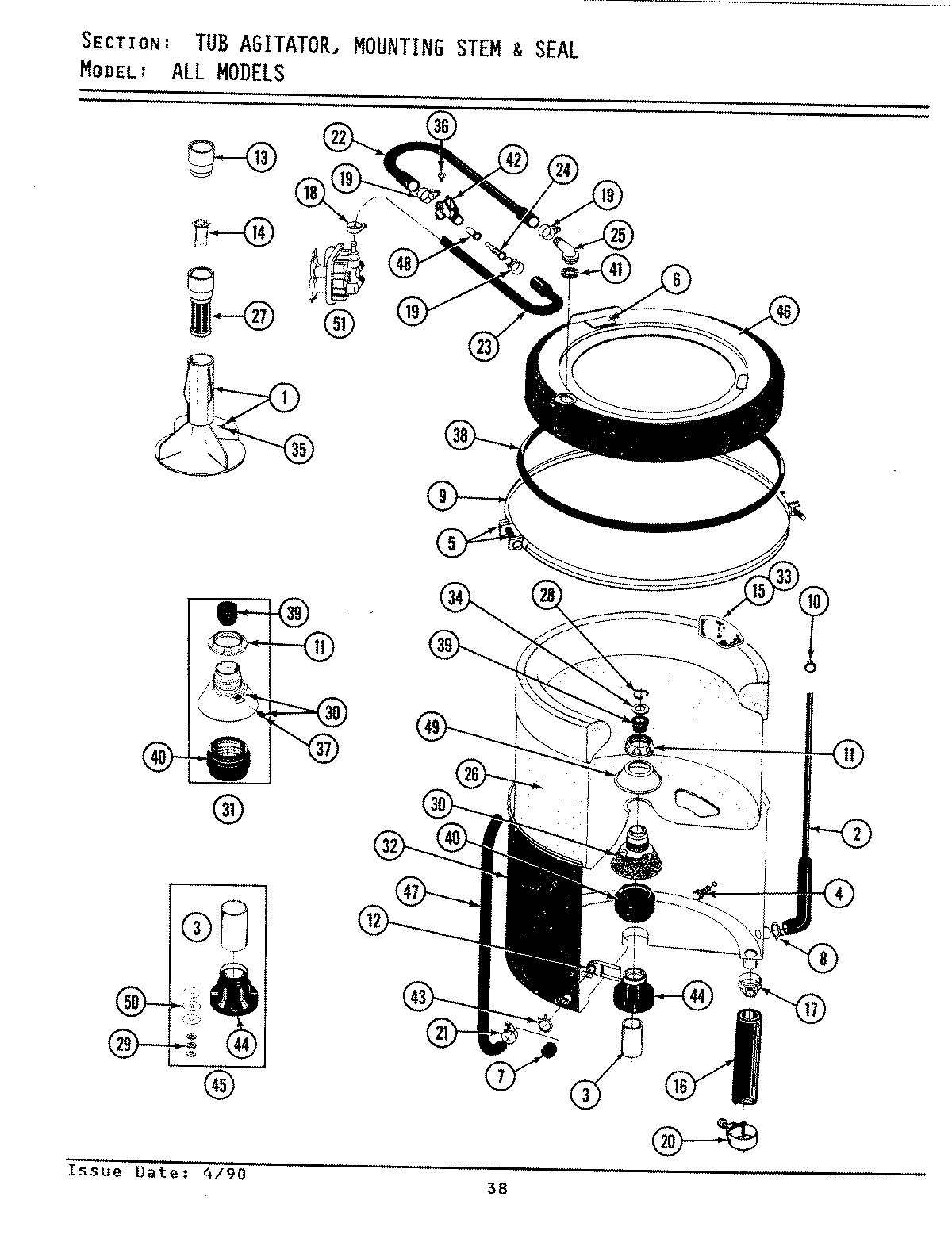

LA8500 07 – TUB, AGITATOR, MOUNTING STEM & SEAL

LA8500 07 – TUB, AGITATOR, MOUNTING STEM & SEAL

Written by

in

LA8500 07 – TUB, AGITATOR, MOUNTING STEM & SEAL

Products

PositionProduct
1MAY 207228
2MAY 212942
2MAY 215976
3MAY 211130
4W10175939 Whirlpool Bolt Assembly
4W10175938 Whirlpool Bolt
6MAY 215232
11WP6-2110472 Whirlpool Nut Clamp
12MAY 214434
14MAY 215733
16WP213045 Whirlpool Dishwasher Tub to Pump Hose
17MAY 200900
18WP596669 Whirlpool Hose Clamp
20WP285655 Whirlpool Hose Clamp
21WP489503 Whirlpool Refrigerator Clamp
22WPY215234 Whirlpool Hose
23WP213013 Whirlpool Injector Hose
24WP213015 Whirlpool Nozzle Injector Tube
25MAY 215235
26MAY 207831
27MAY 207426
28MAY Y015667
29MAY Y054867
30MAY 202521
31MAY 204012
32PART NOT USED
33MAY 215980
34WPY015666 Whirlpool Washer Retainer
35MAY 206478
36MAY 312620
37MAY 211618
38WP211232 Whirlpool Seal
39WP6-0A57420 Whirlpool Agitator Seal
40MAY 201537
41WP215233 Whirlpool Seal
42WP215447 Whirlpool Sleeve
446-2040130 Whirlpool Washer Tub Bearing Kit
46MAY 206380
47WP214433 Whirlpool Inlet Tube
48WP216201 Whirlpool Rubber Injector Valve
49MAY 211210
50MAY 211100
51205613 Whirlpool Washer Water Inlet Valve
