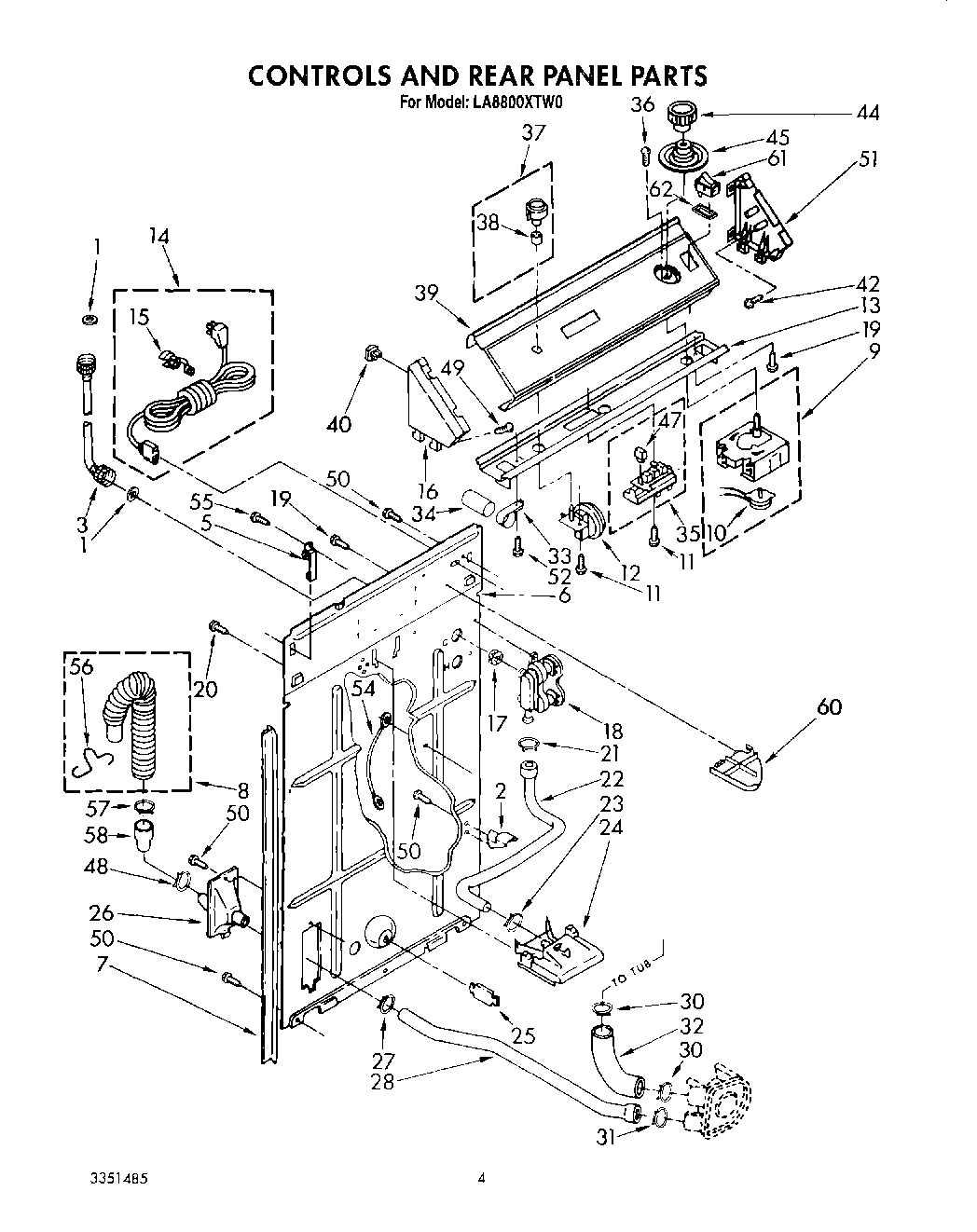

LA8800XTN0 03 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Pin, Cabinet Guide (2)
3	WP89503 Whirlpool Washer Fill Hose
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	Timer, Control (60 Hz.)
10	Motor, Timer
11	WP90767 Whirlpool Screw
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP3348552 Whirlpool Hose
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	357030 Whirlpool Clamp
34	WP8572720 Whirlpool Capacitor
35	Switch, Water Temperature (Alt.)
35	Switch, Water Temperature (Alt.)
35	Switch, Water Temperature
36	WP356418 Whirlpool Screw
37	WPL 386636
38	WP688805 Whirlpool Spring Clip
39	Panel, Console
40	WP689559 Whirlpool Nut
42	WPL 355326
44	WPL 3347726
45	WPL 64140
47	Button, Push (4)
49	WPL 64211
50	WP3390631 Whirlpool Screw
51	WPL 63795
52	SCREW
54	WPL 364089
55	WP308685 Whirlpool Microwave Screw
56	WPL 3350222
57	WP616099 Whirlpool Clamp
58	WP384496 Whirlpool Hose Coupling
60	WPL 3348424
61	WPL 3348102
61	WPL 3349096
61	WPL 661524
62	WPL 3348392
