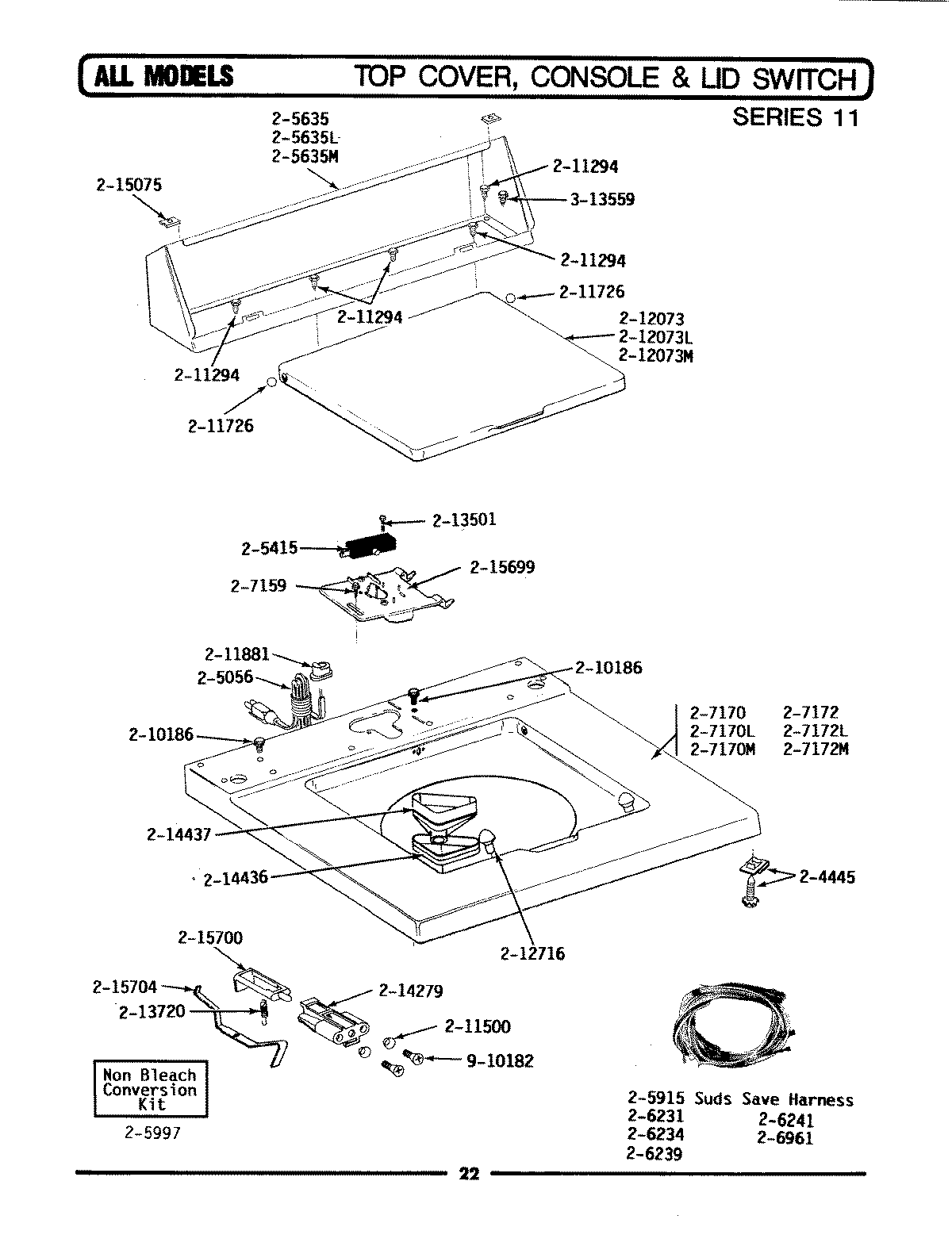

LA883 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

Products

Position	Product
1	MAY Y201808
2	MAY 204445
3	PLUNGER & BRACKET ASSEMBLY–W
4	MAY 205056
5	W10820036 Whirlpool Door Switch Kit
7	MAY 205635L
8	MAY 205997
9	MAY 206961
10	SCREW
12	MAY 207170L
14	MAY 207172L
15	MAY 210186
16	WP90767 Whirlpool Screw
17	MAY 211500
18	WP211726 Whirlpool Ball Assembly
19	MAY 211737
20	GROMMET
22	MAY 212073L
23	WP212716 Whirlpool Lid Bumper
24	MAY 213501
25	MAY 213718
26	WP213720 Whirlpool Spring Assembly
27	MAY 214279
28	MAY 214805
29	MAY 214813
30	MAY 214898
31	MAY 214987
32	MAY 215075
33	MAY 215236
35	MAY 215578
37	MAY 215580
38	MAY Y215699
39	MAY 215700
40	MAY 215704
41	MAY 301548
42	WP311155 Whirlpool Wire Assembly
43	MAY Y312140
44	MAY Y313559
45	MAY 410635
46	MAY 910182
47	MAY 911267
