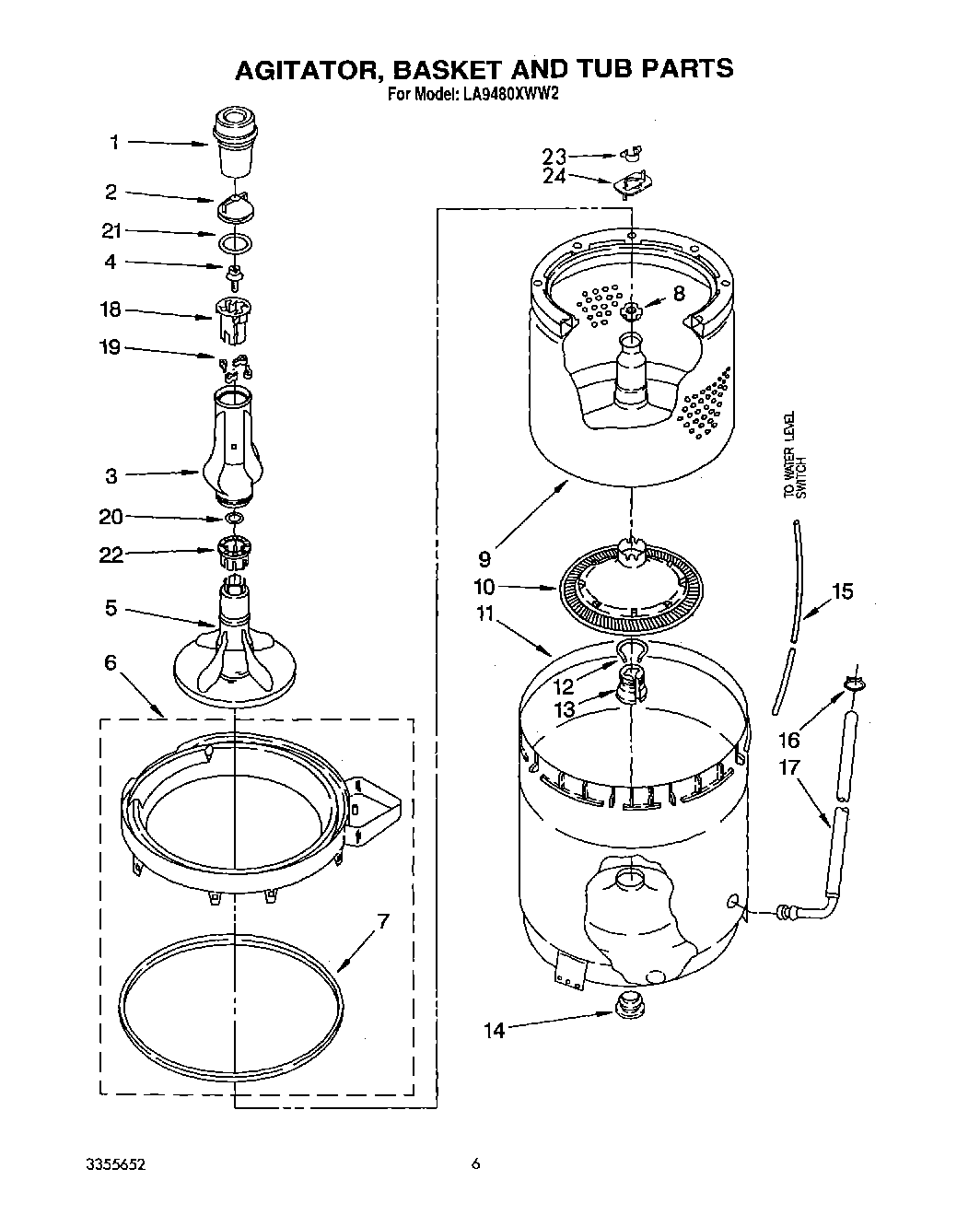

LA9480XWM2 05 – AGITATOR, BASKET AND TUB

Products

Position	Product
1	63580 Whirlpool Washer Fabric Softener Dispenser
2	WPW10074580 Whirlpool Agitator Inner Cap and Seal
3	WP3348752 Whirlpool Agitator Mover
4	WP358237 Whirlpool Agitator Bolt
5	AGITATOR
6	W10880720 Whirlpool Tub Ring
7	WP3976308 Whirlpool Tub Seal
8	WP21366 Whirlpool Spanner Nut
9	W10389328 Whirlpool Basket
10	285868 Whirlpool Washer Filter Plug Kit
11	3361596 Whirlpool Outer Tub Primary
12	Lock, Filter
13	WP389140 Whirlpool Drive Block or Bell
14	W10814296 Whirlpool Washer Center Post Seal Gasket
15	WP353244 Whirlpool Hose
16	WP596669 Whirlpool Hose Clamp
17	Hose, Bleach
18	285811 Whirlpool Washer Agitator Repair Kit
19	80040 Whirlpool Washer Agitator Dog Kit
20	Seal, Agitator
21	WPW10072840 Whirlpool Seal Assembly
22	285587 Whirlpool Thrust Washer
23	WP3354845 Whirlpool Clip
24	WP8543666 Whirlpool Washer
