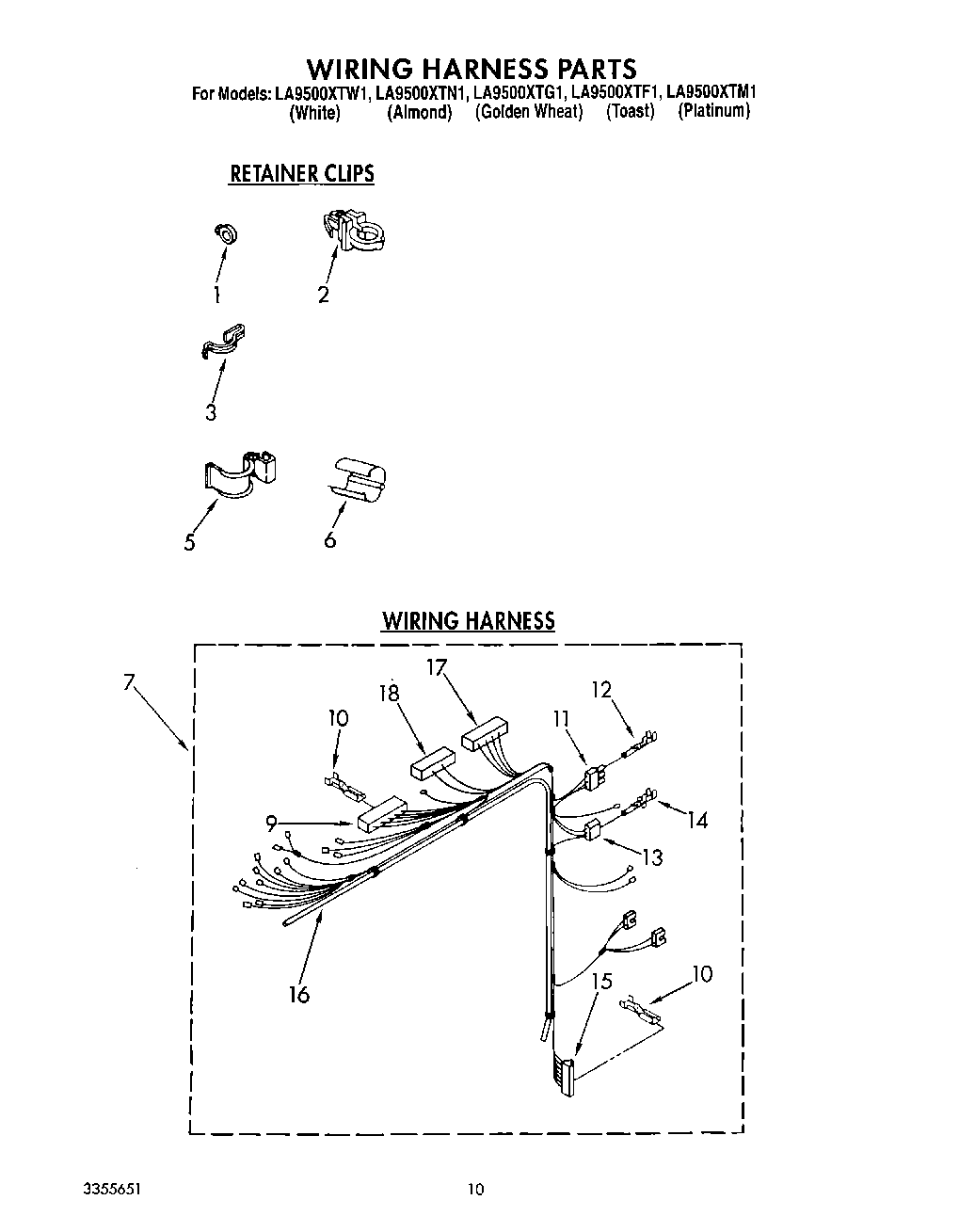

LA9500XTN1 09 – WIRING HARNESS

Products

Position	Product
1	8559320 Whirlpool Clip
2	Clip, Harness
3	8528351 Whirlpool Clip
5	WP90016 Whirlpool Clip
6	Protector, Harness
7	Wiring Harness & Pressure Switch Hose
9	W10876590 Whirlpool Connector
10	Terminal, Female
11	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12	WP94614 Whirlpool Terminal
13	353424 Whirlpool Connector
14	WP596797 Whirlpool Terminal
15	WP62505 Whirlpool Connector
16	WP353244 Whirlpool Hose
17	Timer, Block Disconnect (White)
18	Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
