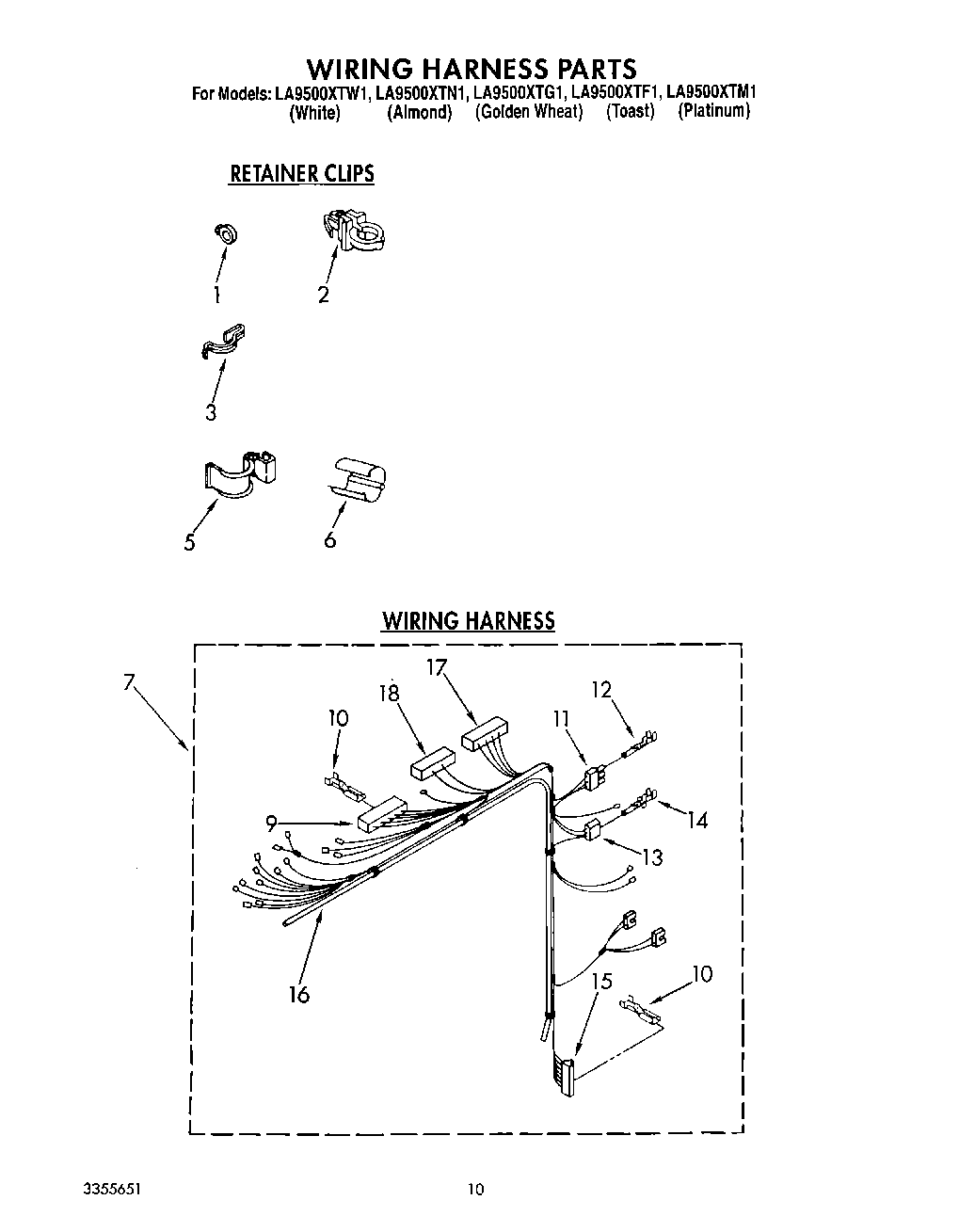

LA9500XTW1 09 – WIRING HARNESSadmin2025-04-26T12:34:56+00:00LA9500XTW1 09 – WIRING HARNESS ProductsPositionProduct18559320 Whirlpool Clip2Clip, Harness38528351 Whirlpool Clip5WP90016 Whirlpool Clip6Protector, Harness7Wiring Harness & Pressure Switch Hose9W10876590 Whirlpool Connector10Terminal, Female11WP62889 Whirlpool Washer Lid Switch Terminal Receptacle12WP94614 Whirlpool Terminal13353424 Whirlpool Connector14WP596797 Whirlpool Terminal15WP62505 Whirlpool Connector16WP353244 Whirlpool Hose17Timer, Block Disconnect (White)18Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
