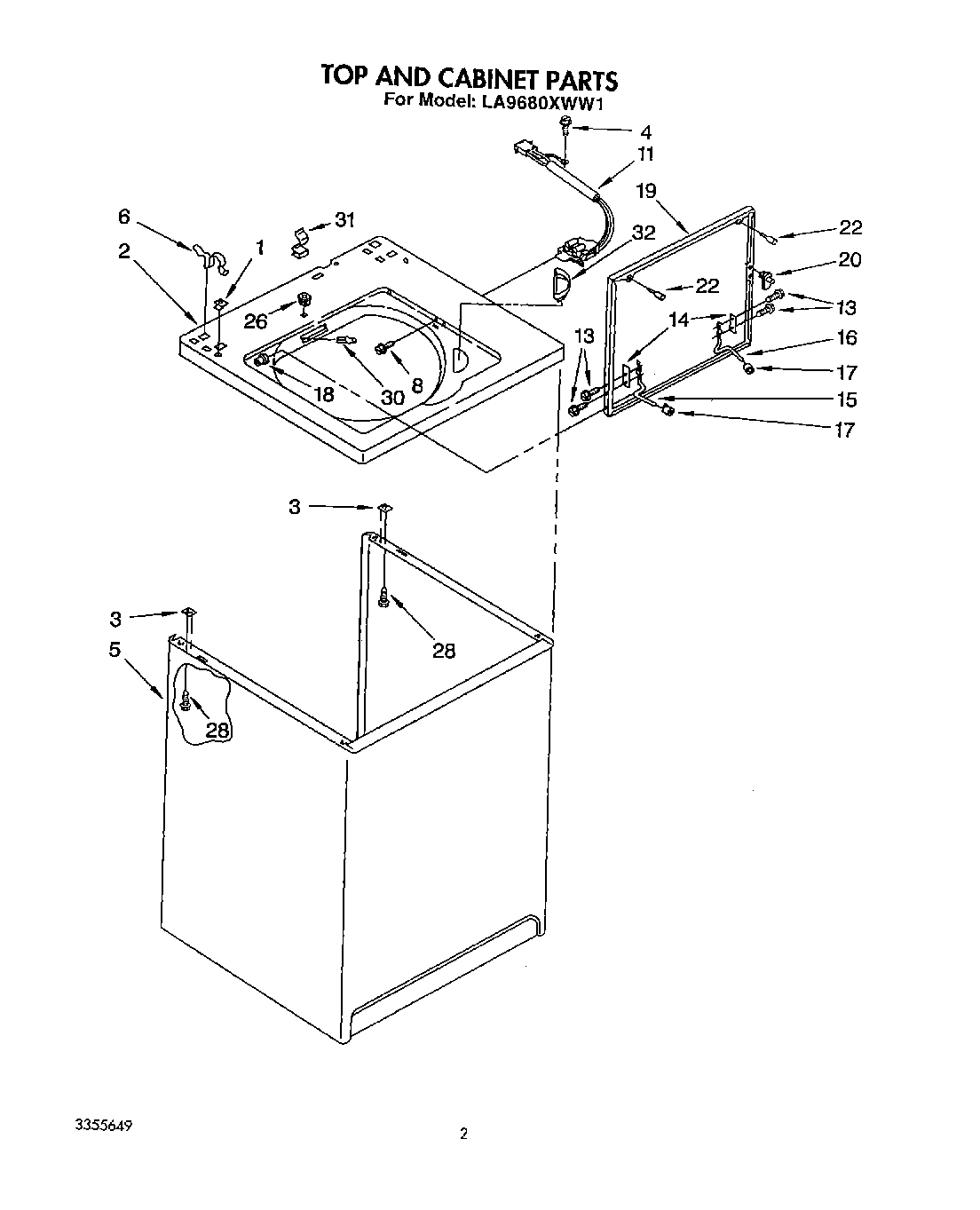

LA9680XWM1 02 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Shipping Kit
WPL 72112
WPL 89121
WPL LIT3347019
WPL LIT3351410
WPL LIT3352092
WPL LIT3356129
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
Golden Harvest
WPL LIT3353503
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
WP285195 Whirlpool Sealer Assembly
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL LIT3355649
285320 Whirlpool Washer Siphon Break Kit
Drain Protector (Not Included)
72113 Whirlpool Touch-Up Paint
350572 Whirlpool Oil Transmission 15 Oz
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1Nut, Push-In (2)
2Top (Toast)
2Top (Almond)
2Top (White)
2Top (Golden Harvest)
2Top (Platinum)
3WP62750 Whirlpool Spacer
5Cabinet (Golden Harvest)
563424 Whirlpool Cabinet Assembly
5Cabinet (Almond)
5Cabinet (Toast)
5Cabinet (Platinum)
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Golden Harvest)
19Lid (Almond)
19Lid (Platinum)
19Lid (White)
19Lid (Toast)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
26Stop, Push-In Top
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
32WP3362952 Whirlpool Bezel
