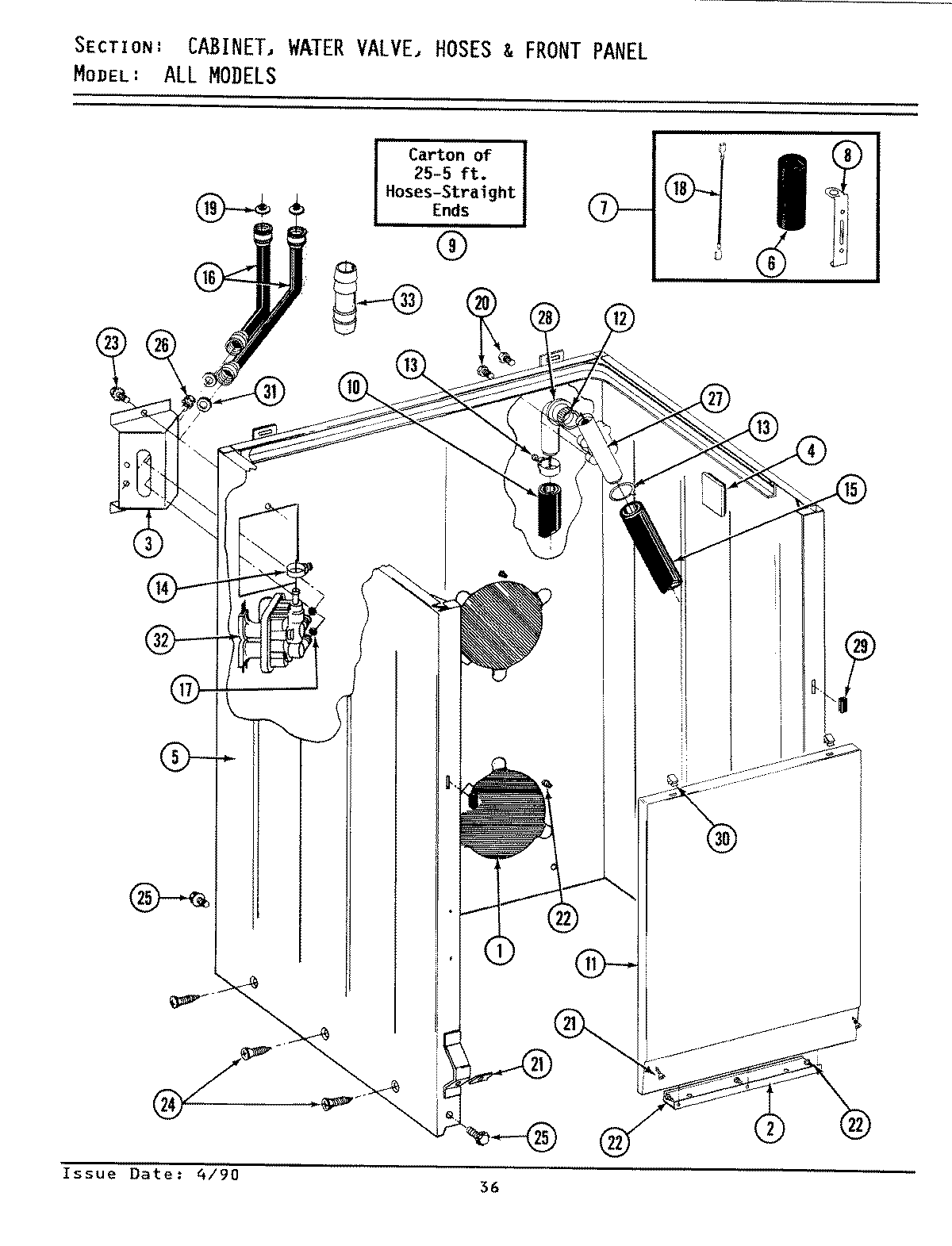

LA9700W 02 – CABINET, WATER VALVE, HOSES & FRNT PANEL

Products

Position	Product
1	MAY 211878
2	MAY 213846
3	MAY 214812
4	MAY 215058
5	MAY 203319L
6	MAY Y200832
7	MAY 206103
8	MAY 211149
9	MAY 202861
10	WP22003410 Whirlpool Drain Hose
10	MAY 216017
10	MAY Y059149
11	MAY 212998L
12	WP214765 Whirlpool Gasket
13	MAY 200908
13	MAY 200461
14	WP596669 Whirlpool Hose Clamp
15	MAY 214767
16	MAY 200681
16	MAY 205828
16	202860 Whirlpool Inlet Hose 5 FT
16	WP76314 Whirlpool Fill Hose
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	MAY 203237
19	MAY 200961
20	WPY014874 Whirlpool Screw
21	SCREW & FSTNER ASSY (FT. PNL)
22	WP90767 Whirlpool Screw
23	MAY 212276
24	213007 Whirlpool Screw #12
25	WPW10346892 Whirlpool Screw
25	WP27001200 Whirlpool Screw
26	MAY Y313561
27	206638 Whirlpool Break Siphon Connector Kit
28	WPW10116738 Whirlpool Elbow Connector
28	MAY 214764
29	MAY 214376
30	MAY 212982
31	MAY Y013783
32	205613 Whirlpool Washer Water Inlet Valve
33	MAY Y216015
