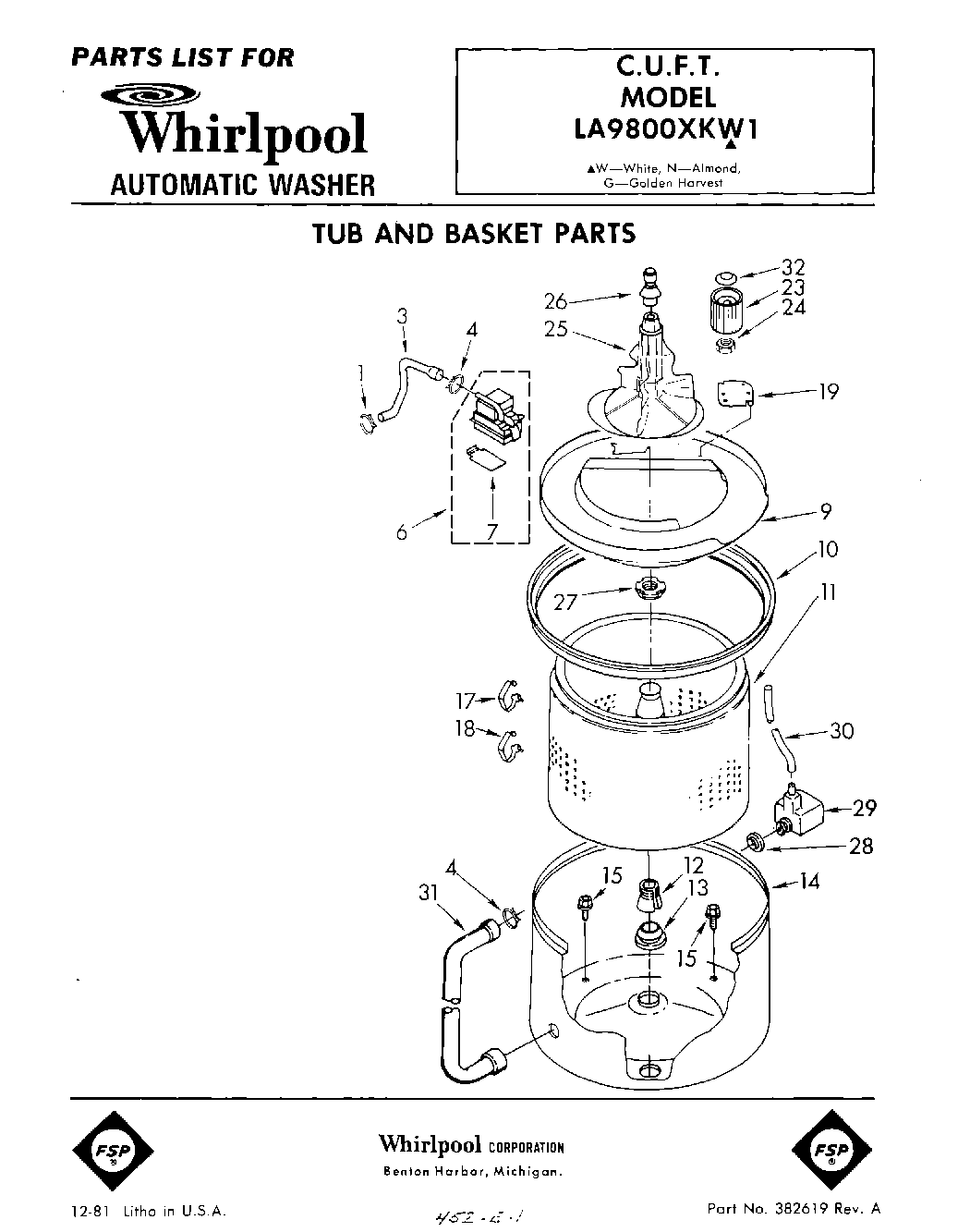

LA9800XKW1 01 – TUB AND BASKET

Products

PositionProduct
1WP596669 Whirlpool Hose Clamp
3Hose, Water Inlet
6Inlet, Water
7Flapper
9Ring & Filter, Tub (Includes Illus. 22)
10Seal, Tub Ring
11Basket
12WP389140 Whirlpool Drive Block or Bell
13W10814296 Whirlpool Washer Center Post Seal Gasket
14Tub
15Screw & Washer, Tub (4)
17Clip, Tub Ring (2)
18Clip, Tub Ring (1)
19Plate, Snubber
23Cap, Agitator
24Locknut
25Agitator & Insert Assembly
26Stud & Washer
27WP21366 Whirlpool Spanner Nut
28Seal
29Air Dome Assembly
30WP353244 Whirlpool Hose
31Hose, Dispenser
32Insert, Agitator Cap
