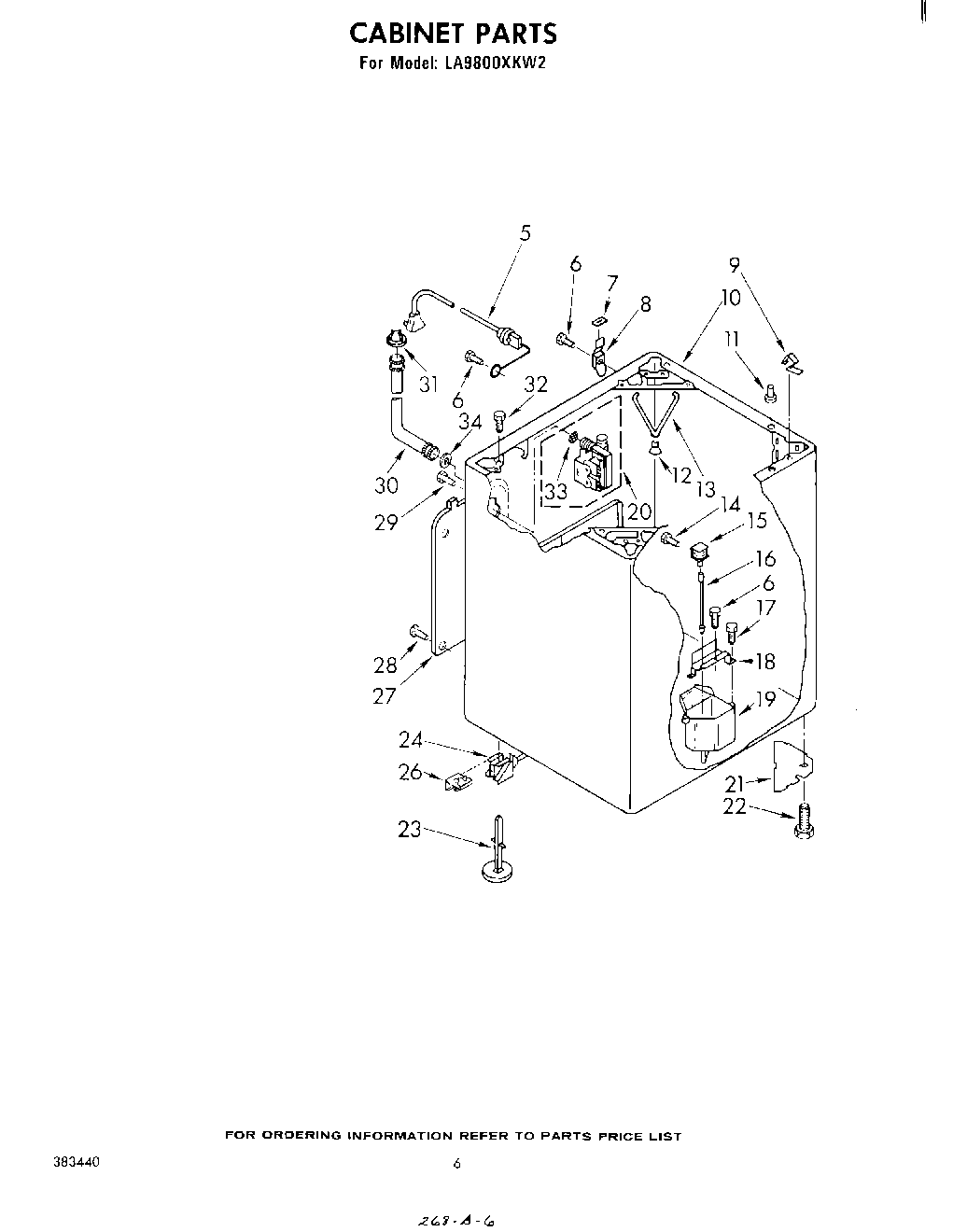

LA9800XKW2 04 – CABINET

Products

PositionProduct
5Cord, Power (60 Hz.)
6SCREW
718849 Whirlpool Pad
8Hinge, L.H.
8Hinge, R.H.
9WP18776 Whirlpool Lock
10Cabinet (White)
10Cabinet (Almond)
10Cabinet (Golden Harvest)
11Locator, Top
12Pad, Snubber
13Spring, Snubber
14Screw, 10-16 x 5/16
15Solenoid (Alternate)
15Solenoid (Alternate)
16Rod & Stopper
17WP98165 Whirlpool Screw
18Bracket, Dispenser
19Reservoir
20Valve, Mixing (Alt.)
20Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
21Plate, Gusset
22WP367594 Whirlpool Leveling Feet
23WP358594 Whirlpool Leveling Feet
24Link, Leveling
26WP359364 Whirlpool Clip
27Panel, Rear
29WP3351614 Whirlpool Screw
30WP89503 Whirlpool Washer Fill Hose
31285452A Whirlpool Hose Seal and Screen
33WP96160 Whirlpool Washer Inlet Valve Screen
34WP16123 Whirlpool Washer
