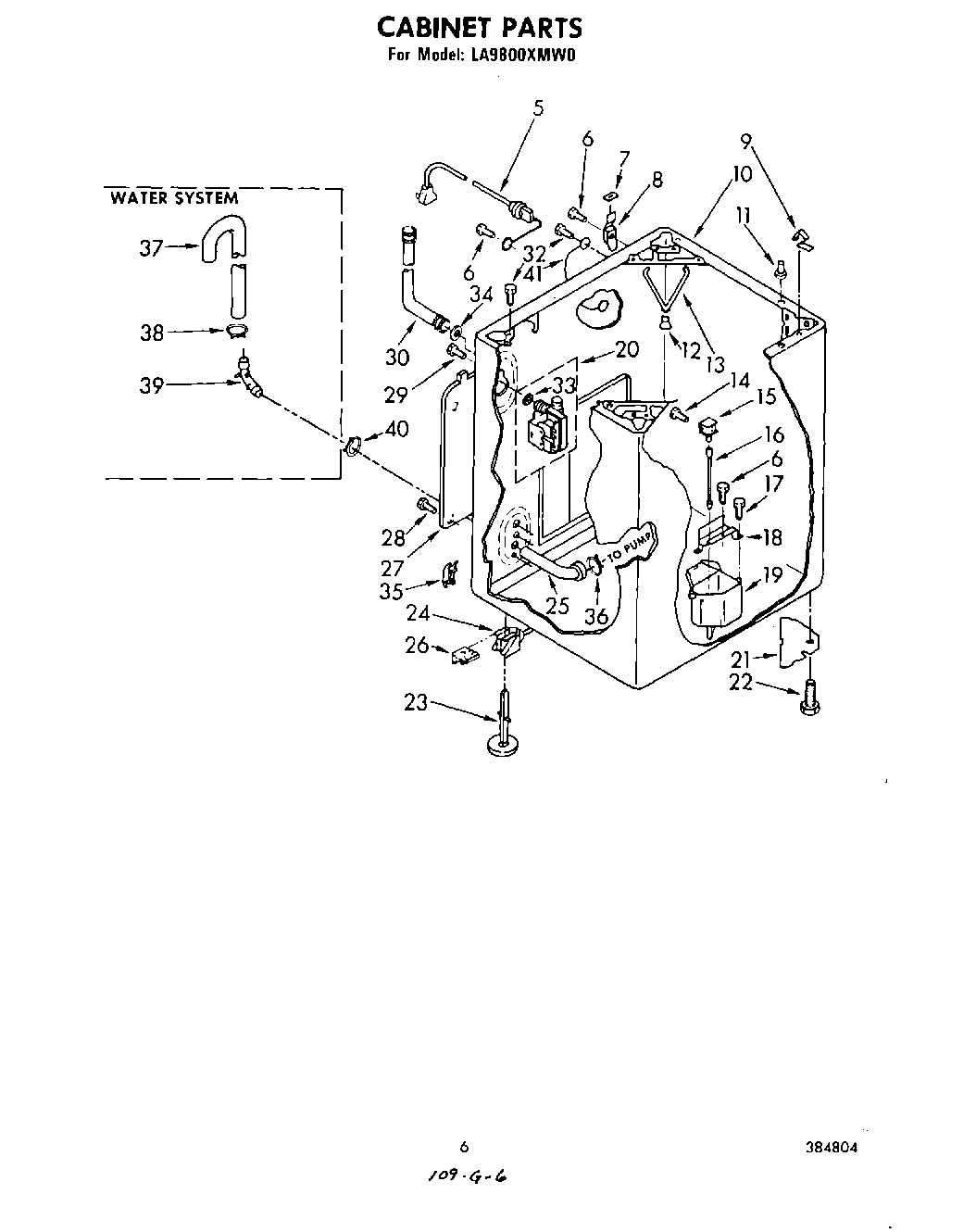

LA9800XMW0 05 – CABINET

Products

Position	Product
5	Cord, Power (60 Hz.)
6	SCREW
7	18849 Whirlpool Pad
8	Hinge, L.H.
8	Hinge, R.H.
9	WP18776 Whirlpool Lock
10	Cabinet (Golden Harvest)
10	Cabinet
10	Cabinet (Platinum)
10	Cabinet (Toast)
10	Cabinet (Almond)
11	Locator, Top
12	Pad, Snubber
13	Spring, Snubber
14	Screw, 10-16 x 5/16
15	Solenoid (Alternate)
15	Solenoid (Alternate)
16	Rod & Stopper
17	WP98165 Whirlpool Screw
18	Bracket, Dispenser
19	Reservoir
20	Valve, Mixing (Alt.)
20	Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
20	Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
21	Plate, Gusset
22	WP367594 Whirlpool Leveling Feet
23	WP358594 Whirlpool Leveling Feet
24	Link, Leveling
25	Hose, Pump Discharge
26	WP359364 Whirlpool Clip
27	Panel, Rear
29	WP3351614 Whirlpool Screw
30	WP89503 Whirlpool Washer Fill Hose
33	WP96160 Whirlpool Washer Inlet Valve Screen
34	WP16123 Whirlpool Washer
35	Plug, Cabinet
36	WP285655 Whirlpool Hose Clamp
37	WP96743 Whirlpool Hose
38	WP356138 Whirlpool Hose Clamp
39	Connector, Hose
41	WPL 364089
