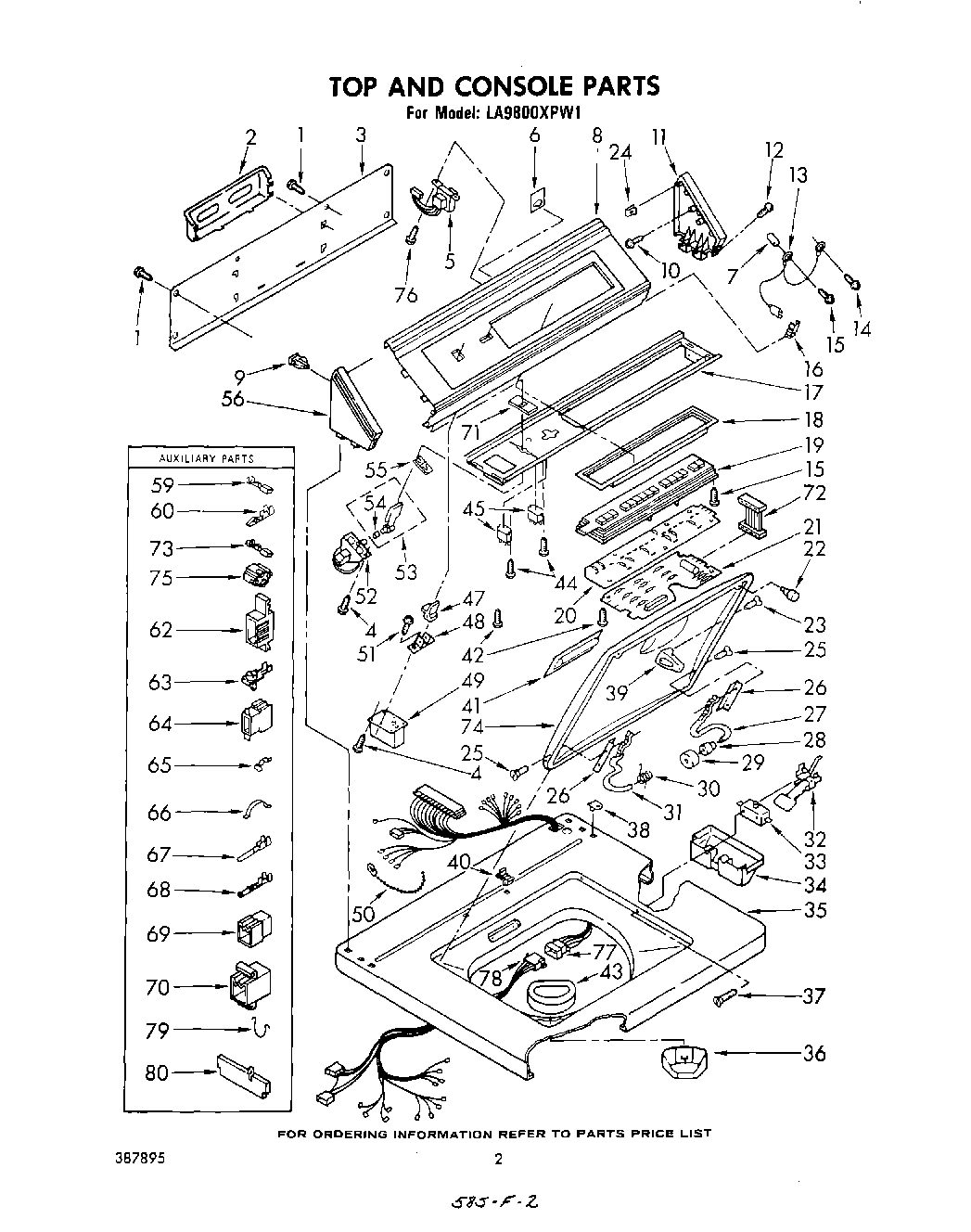

LA9800XPW1 02 – TOP AND CONSOLE

LA9800XPW1 02 – TOP AND CONSOLE

Written by

in

LA9800XPW1 02 – TOP AND CONSOLE

Products

PositionProduct
2Rack, Literature
3Panel, Rear
4WP90767 Whirlpool Screw
5Transformer, Power
6Barrier, Harness
7W10491983 Whirlpool Tine Tip
8Panel, Console
9WP689559 Whirlpool Nut
10WPL 355326
11WPL 63795
12WPL 64211
13Wire, Ground
14WP3351614 Whirlpool Screw
15SCREW
16W10113937 Whirlpool Clamp
17Bracket, Control
18Trim, Frame
19Module, Touch
20Display Assembly
21Microcomputer Assembly
22WP9724509 Whirlpool Bumper
23Screw & Washer
24Clip (4)
25SCREW
26WP21097 Whirlpool Pad
27WP91770 Whirlpool Hinge
28WP21258 Whirlpool Washer Lid Hinge Bearing
29Bumper, Lid Hinge
30Spring, Hinge
31Hinge, L.H.
32Switch Actuator Assembly
33W10820036 Whirlpool Door Switch Kit
34WP359231 Whirlpool Shield
35Top (Toast)
35Top (Platinum)
35Top (White)
35Top (Golden Harvest)
35Top (Almond)
36WPL 352827
37Screw & Washer, Lid Switch (2)
38Nut, Push-In (2)
39Strike, Lid Switch
40Stop, Push-In Top
41Handle, Lid (Golden Harvest)
41Handle, Lid (Toast)
41Handle, Lid (White)
41Handle, Lid (Platinum)
41Handle, Lid (Almond)
42Screw, 8-18 x 1/2 (6)
43WPL 352821
44CamAlso Available (12-Pin (15 Min.))
45Relay, Power (2)
47Lever
48Pivot, Lever
49Relay Push To Start
50WPW10339879 Whirlpool Wire Tie
51WPW10068250 Whirlpool Dishwasher Screw
52Switch, Water Level
53Lever, Wa
54Clip
55WPL 359068
56Cap, End (L.H.)
59Term Or
60Terminal
62Plug, Terminal (15 Way)
63WPL 357695
64Cap, Terminal (15 Way)
658528351 Whirlpool Clip
66WP90016 Whirlpool Clip
67WP596797 Whirlpool Terminal
68WP94614 Whirlpool Terminal
69Cap, Terminal
70Plug, Cabinet Harness
71WPL 358516
72WPL 60862
73WPL 690367
74WPL 379953
74WPL 382801
74WPL 382800
74WPL 379949
74WPL 379950
75WPL 359267
76W11693756 Whirlpool Screw Assembly
77WPL 385222
78WPL 359299
7916515 Whirlpool Clip
80WPL 60816
