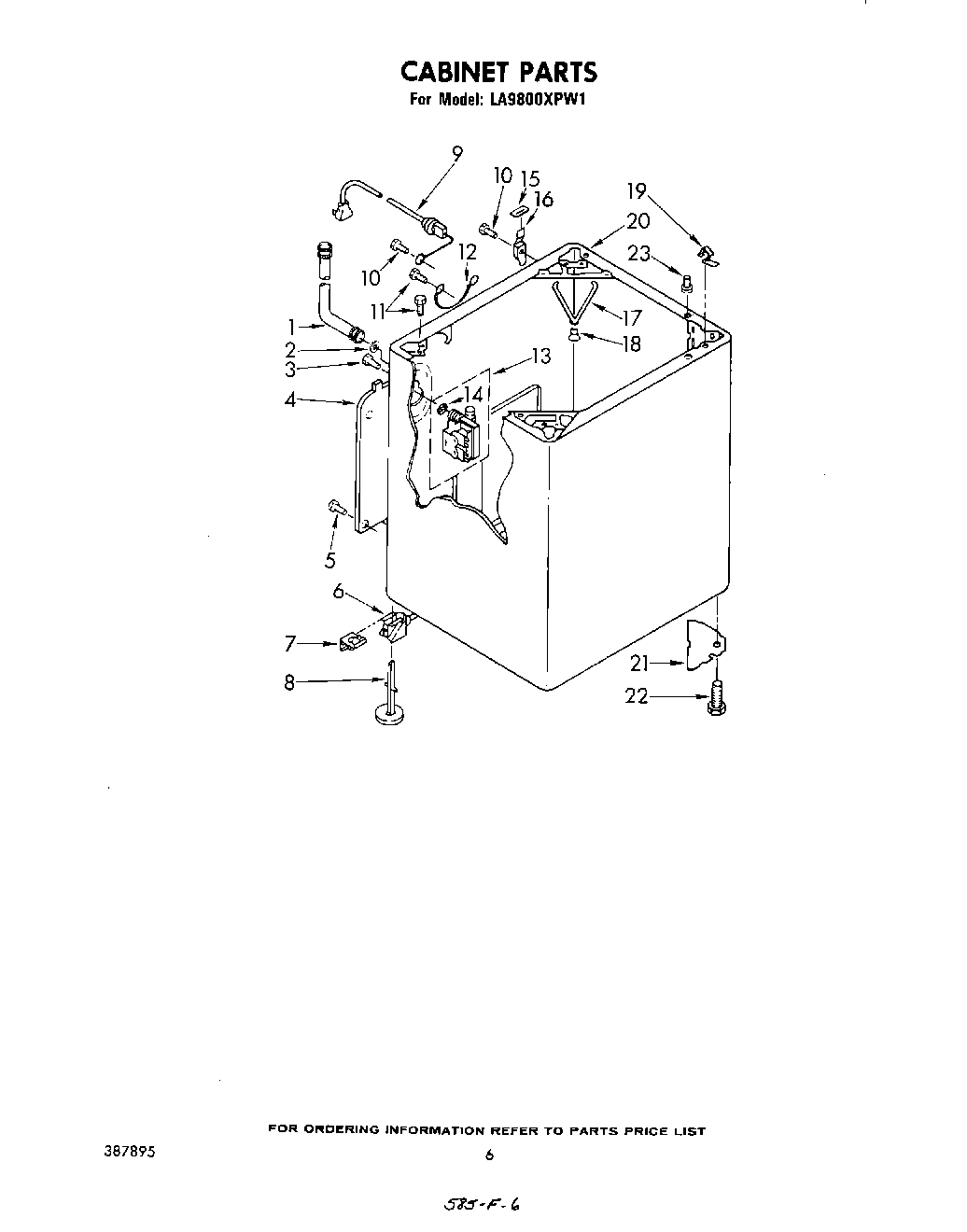

LA9800XPW1 05 – CABINET

Products

PositionProduct
1WP89503 Whirlpool Washer Fill Hose
2WP16123 Whirlpool Washer
3WP3390631 Whirlpool Screw
4Panel, Rear
6Link, Leveling
7WP359364 Whirlpool Clip
8WP358594 Whirlpool Leveling Feet
9Cord, Power (60 Hz.)
10SCREW
12WPL 364089
13Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
13Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
13Valve, Mixing (Alt.)
14WP96160 Whirlpool Washer Inlet Valve Screen
1518849 Whirlpool Pad
16Hinge, R.H.
16Hinge, L.H.
17Spring, Snubber
18Pad, Snubber
19WP18776 Whirlpool Lock
20Cabinet
20Cabinet (Almond)
20Cabinet (Golden Harvest)
20Cabinet (Toast)
20Cabinet (Platinum)
21Plate, Gusset
22WP367594 Whirlpool Leveling Feet
23Locator, Top
